Direct Fuel Injector Replacement

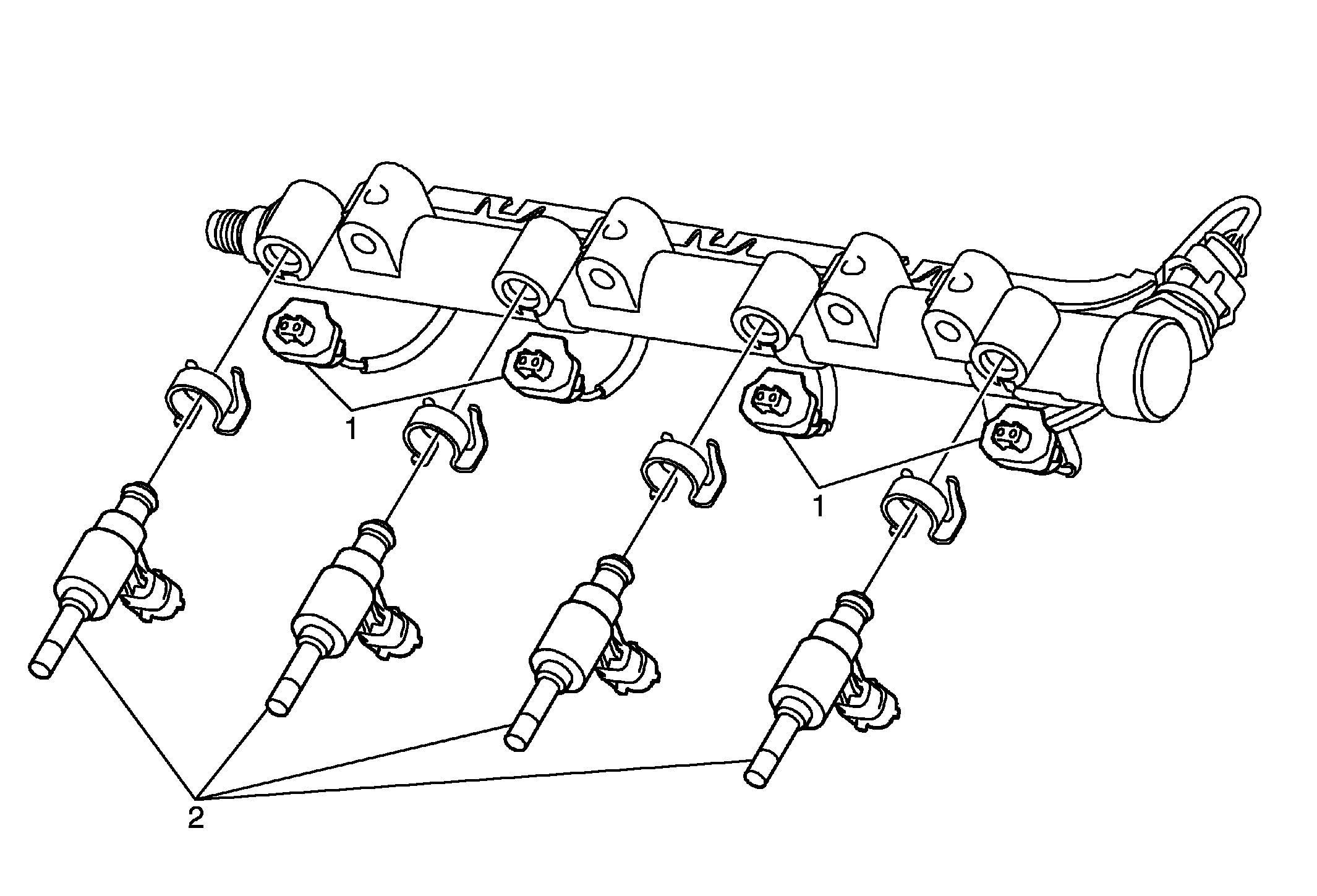

Fig 1: Direct Fuel Injectors
GM2193875Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the fuel injection fuel rail assembly. Refer to Fuel Injection Fuel Rail Assembly Replacement (LAF) .
1 Direct Fuel Injector
Procedure:
Disconnect the electrical connector.
2 Direct Fuel Injector
Procedure:
Remove the injector with EN-37281-A:  injector remover and DT-2619-01:  slide hammer.

Special Tools

  • EN-37281-A:  Injector Remover
  • DT-2619-01:  Slide Hammer

For equivalent regional tools, refer to Special Tools .
