Crankshaft Position Sensor Replacement

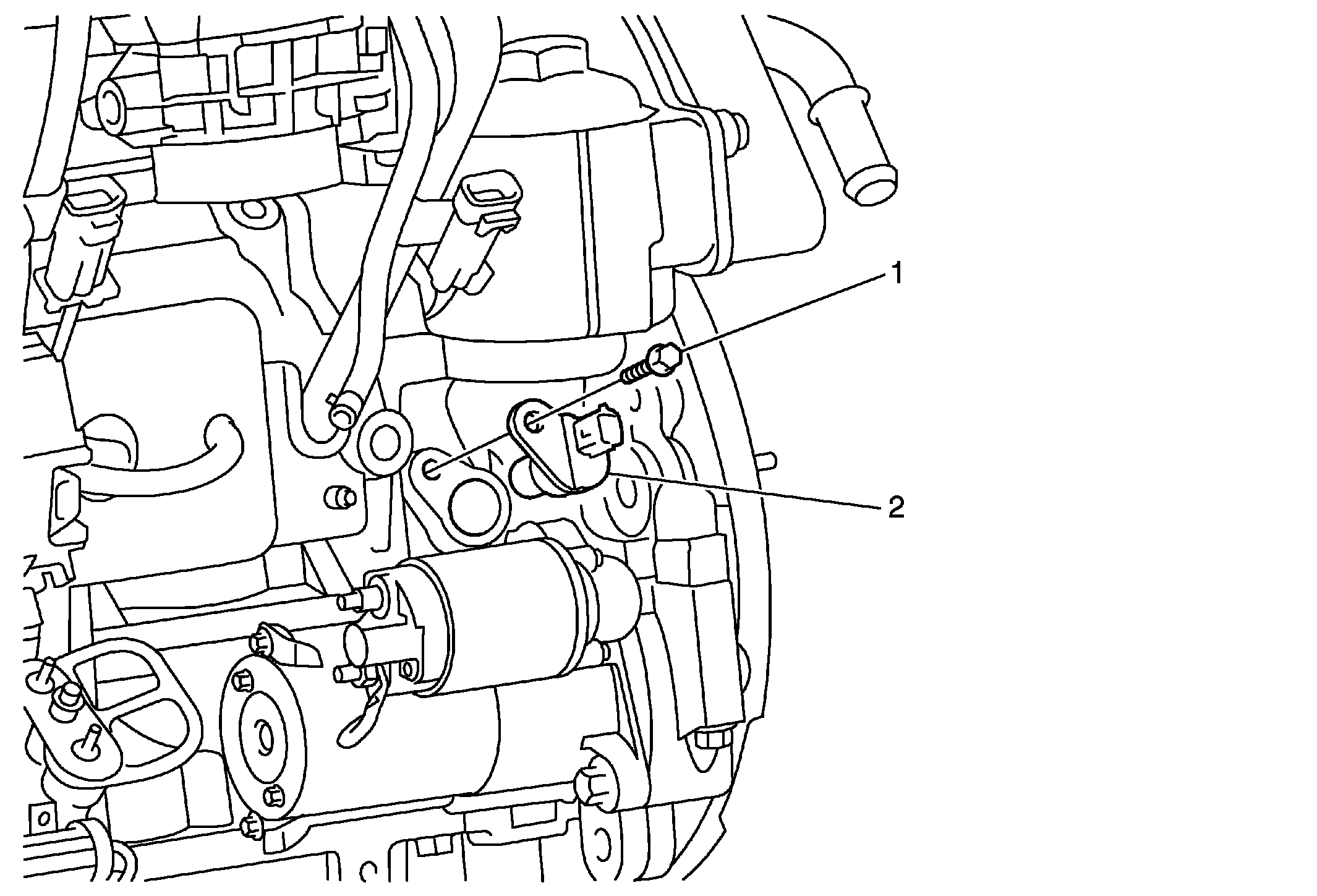

Fig 1: Crankshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the starter motor. Refer to Starter Replacement (L4) or Starter Replacement (LDK Or LHU) .
1	Crankshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Procedure: Disconnect the electrical connector. Tighten: 10 N.m (89 lb in)
2	Crankshaft Position Sensor

Callout

Component Name

Preliminary Procedures

Crankshaft Position Sensor Fastener

CAUTION: Refer to Fastener Caution .

Procedure:
Disconnect the electrical connector.

Tighten: 10 N.m (89 lb in)

Crankshaft Position Sensor
