Air Cleaner Element Replacement

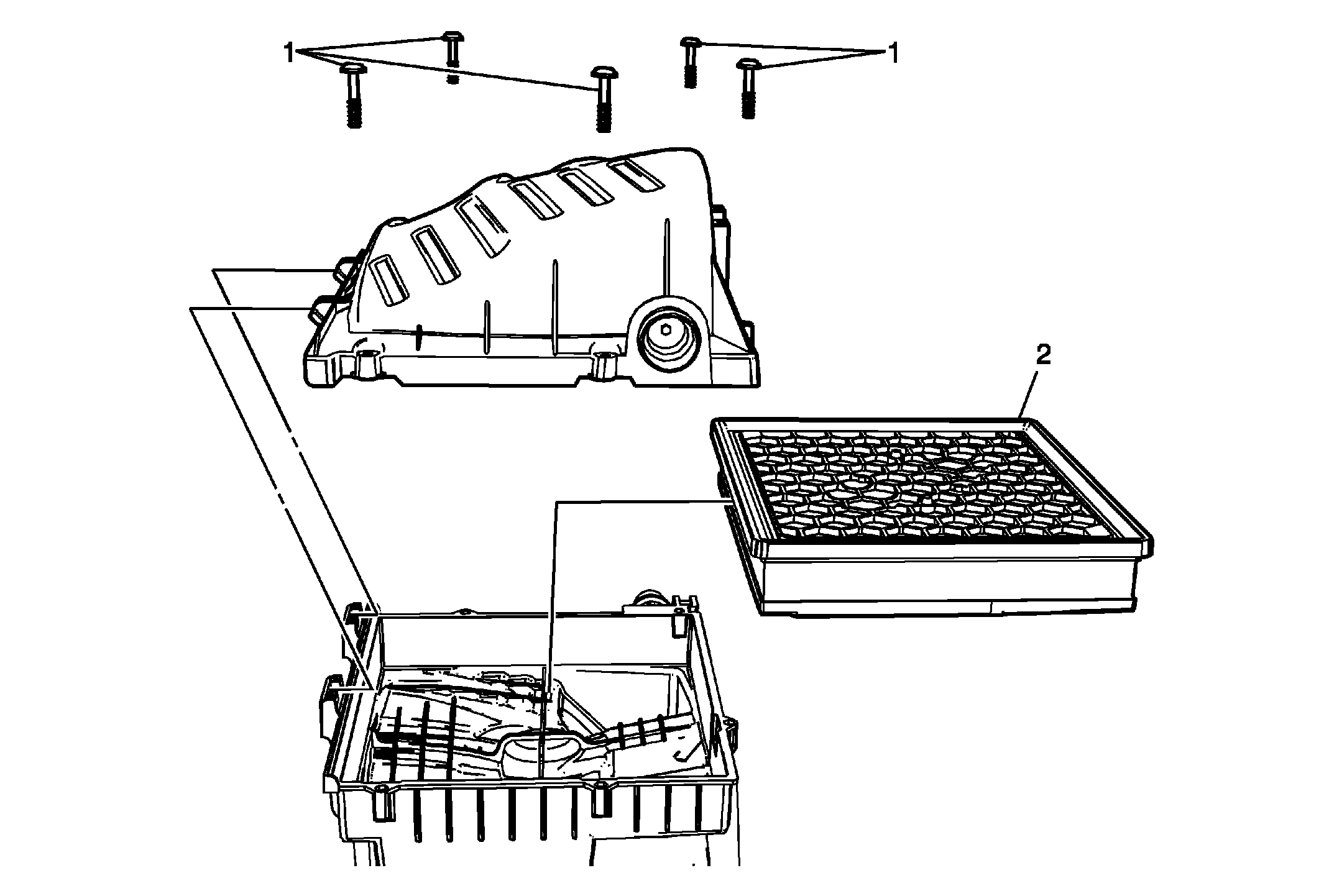

Fig 1: Air Cleaner Element
GM2321819Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Cleaner Assembly Screws (Qty: 5)
CAUTION: Refer to Fastener Caution .

Tighten:  4 N.m (35 lb in)
2 Air Cleaner Element
