Air Cleaner Assembly Replacement

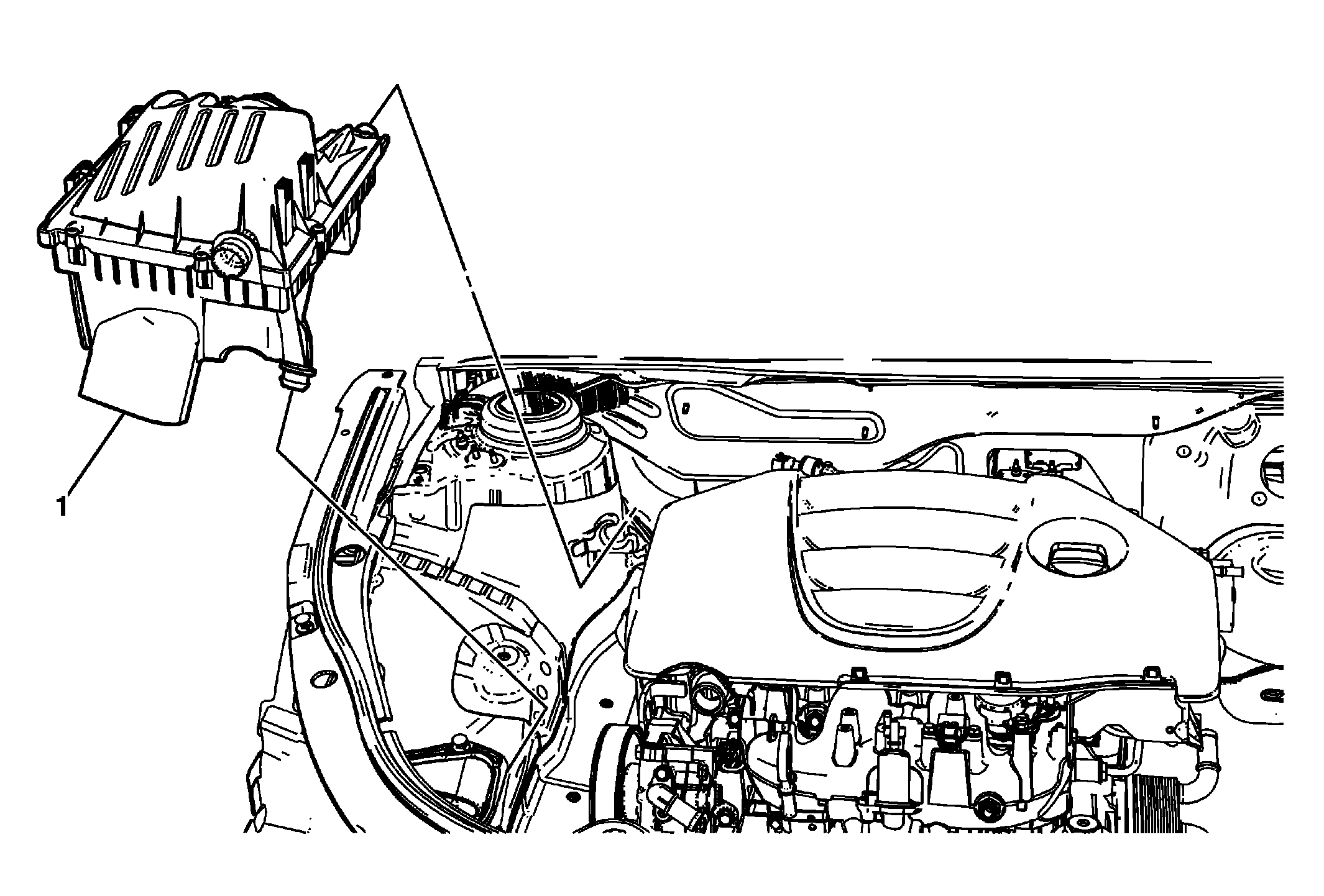

Fig 1: Air Cleaner Assembly
GM2321834Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Disconnect the outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .
1 Air Cleaner Assembly

Procedure

  1. Lift upwards to dislodge the rubber grommet.
  2. Transfer parts as necessary.
