Knock Sensor Replacement (Right Side)

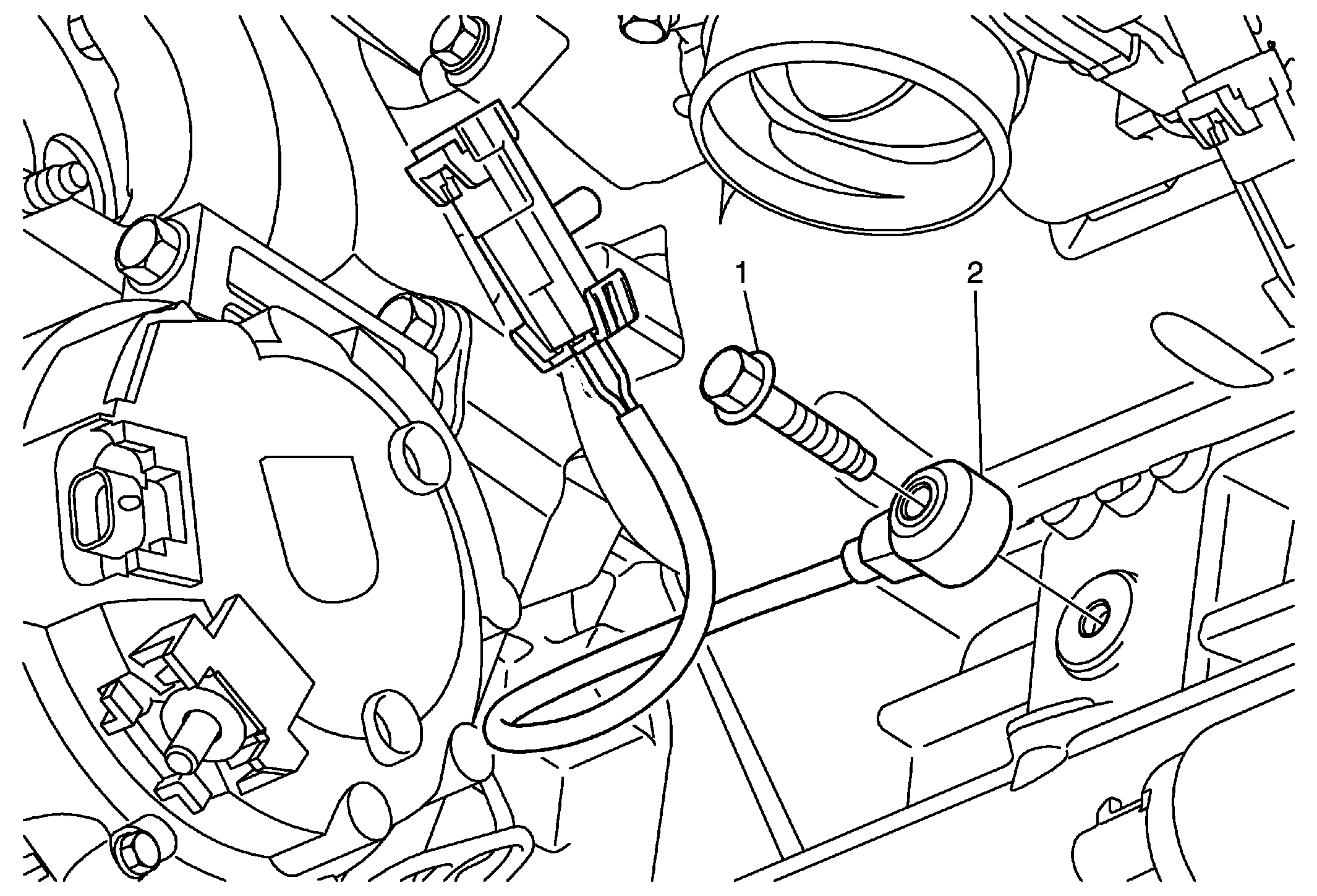

Fig 1: Knock Sensor (Right Side)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the oil level indicator and tube.
1	Knock Sensor Fastener CAUTION: Refer to Fastener Caution . Procedure: Disconnect the electrical connector. Tighten: 25 N.m (18 lb ft)
2	Knock Sensor

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the oil level indicator and tube.

Knock Sensor Fastener

CAUTION: Refer to Fastener Caution .

Procedure:
Disconnect the electrical connector.

Tighten: 25 N.m (18 lb ft)

Knock Sensor
