Intake Air Pressure and Temperature Sensor Replacement

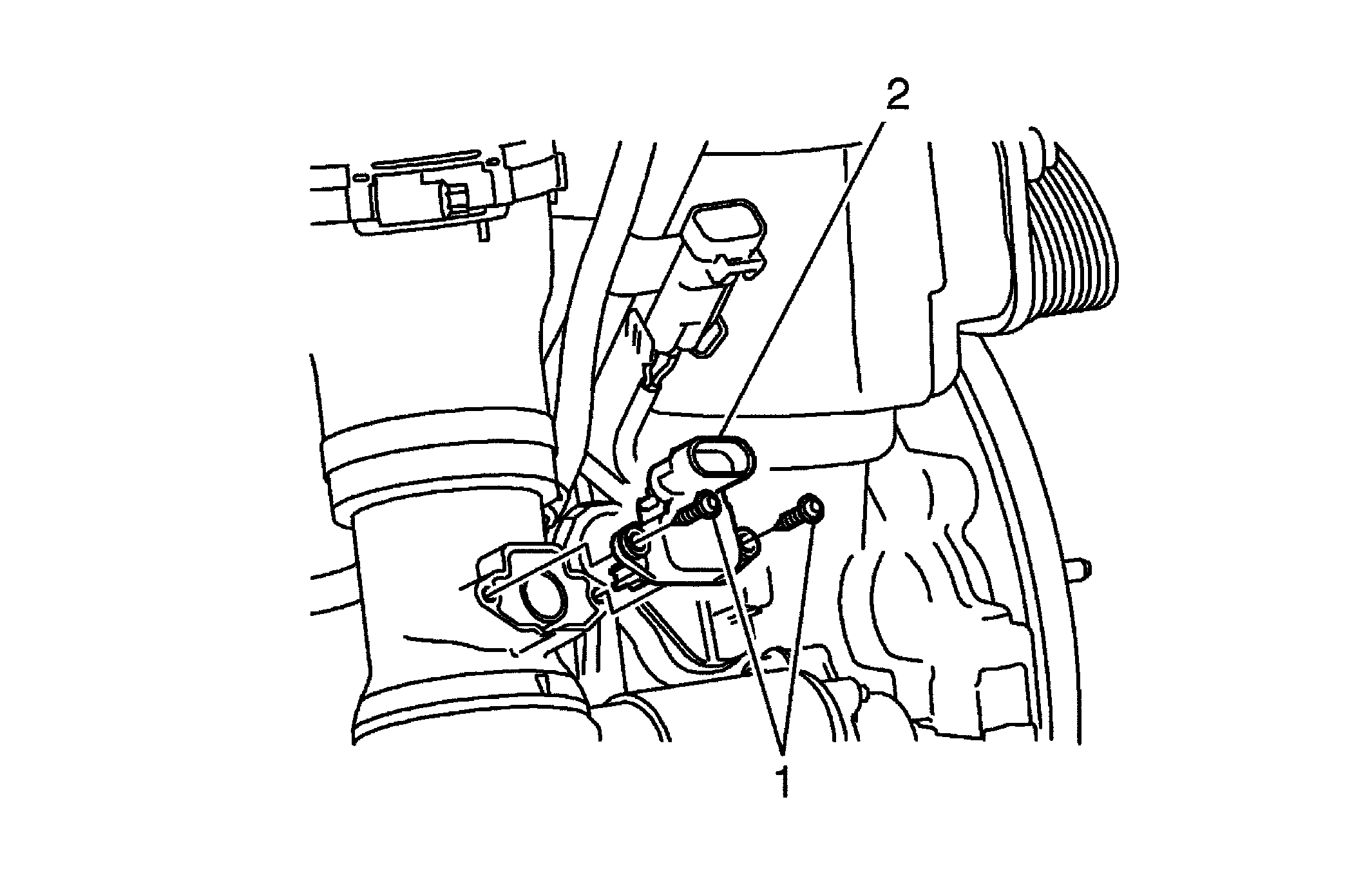

Fig 1: Intake Air Pressure And Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Intake Air Pressure and Temperature Sensor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure:  Disconnect the electrical connector. Tighten:  7 N.m (62 lb in)
2	Intake Air Pressure and Temperature Sensor
