Heated Oxygen Sensor Replacement - Sensor 2

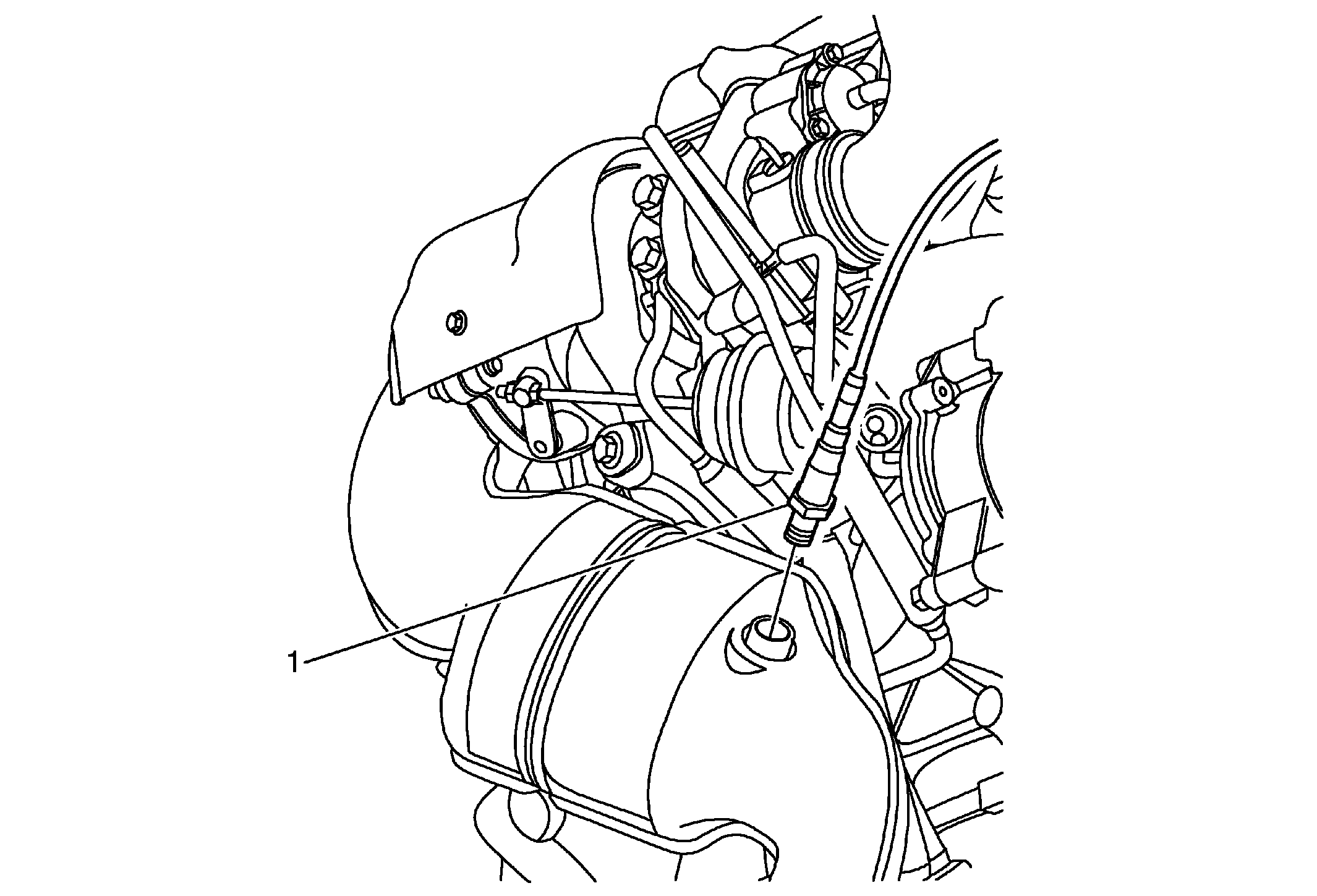

Fig 1: Heated Oxygen Sensor - Sensor 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Heated Oxygen Sensor 2 Fastener Procedure Disconnect the electrical connector. Release the retainer. Remove the heated oxygen sensor 2 with CH-6179: remover/installer and GE-611: wrench. Tighten: 42 N.m (31 lb ft) Special Tools CH-6179: Oxygen Sensor Wrench Remover/Installer GE-611: Torque Wrench 3/8" For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure:
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .

Heated Oxygen Sensor 2 Fastener

Procedure

Disconnect the electrical connector.
Release the retainer.
Remove the heated oxygen sensor 2 with CH-6179: remover/installer and GE-611: wrench.

Tighten: 42 N.m (31 lb ft)

Special Tools

For equivalent regional tools, refer to Special Tools .
