Fuel Injection Fuel Rail Fuel Pressure Sensor Replacement

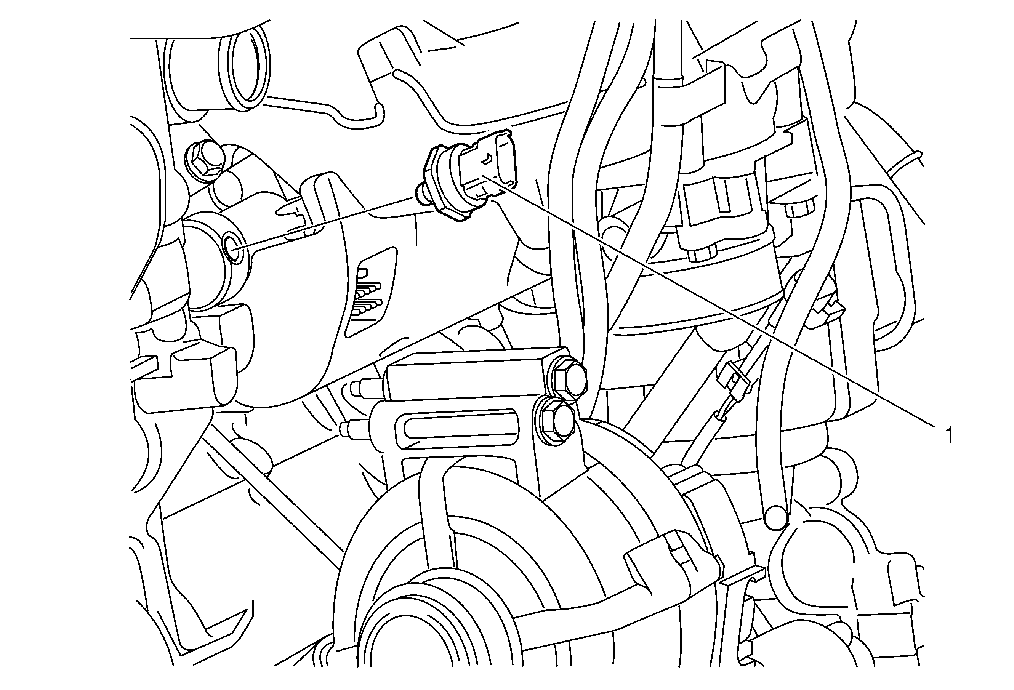

Fig 1: Fuel Injection Fuel Rail Fuel Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement (LAF) or Radiator Inlet Hose Replacement (LDK or LHU) .
1	Fuel Injection Fuel Rail Fuel Pressure Sensor CAUTION: Refer to Fastener Caution . Procedure: Disconnect the electrical connector. Tighten: 33 N.m (25 lb ft)

Callout

Component Name

Preliminary Procedures

Fuel Injection Fuel Rail Fuel Pressure Sensor

CAUTION: Refer to Fastener Caution .

Procedure:
Disconnect the electrical connector.

Tighten: 33 N.m (25 lb ft)
