Installation Procedure

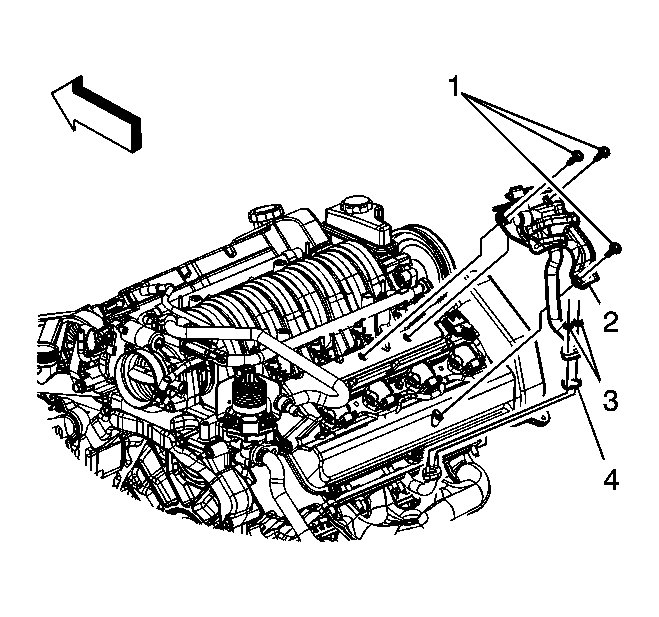

    Fig 1: Identifying AIR Check Valve
    GM1670476Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW AIR check valve to exhaust manifold gasket (4).
  2. Install the AIR check valve.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the AIR check valve to exhaust manifold nuts (3) and tighten to 9 N.m (80 lb in).
  4. Install the AIR check valve bolts (1) and tighten to 9 N.m (80 lb in).

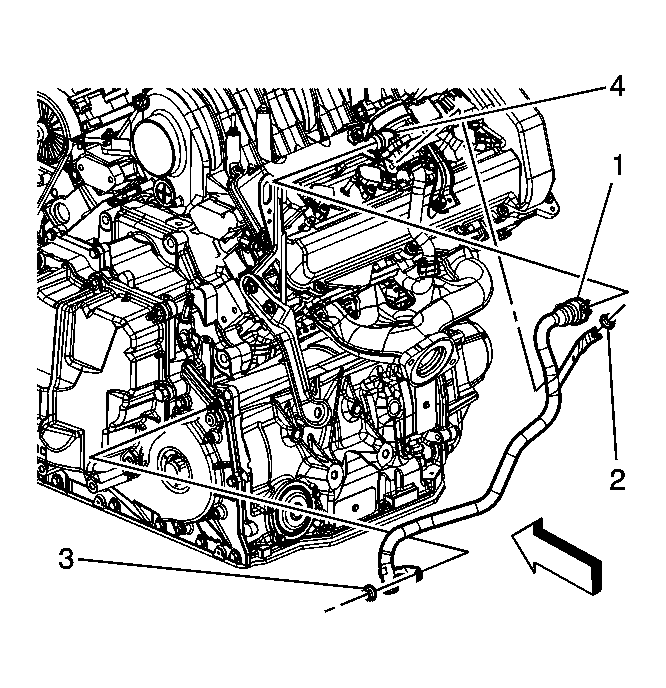

    5. Fig 2: View Of AIR Pipe Outlet Pipe
    GM1665399Courtesy of GENERAL MOTORS COMPANY
  5. Connect the AIR pipe (1) to the AIR check valve (4).
    6. Fig 3: Identifying Engine Harness Electrical Connectors
    GM1665457Courtesy of GENERAL MOTORS COMPANY
  6. Connect the engine harness electrical connector (4) to the AIR check valve.
  7. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
