Installation Procedure

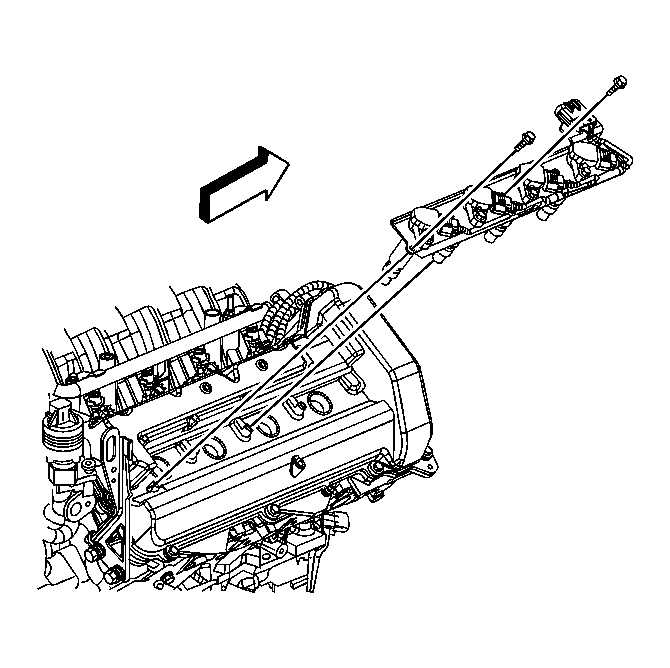

Fig 1: Identifying Ignition Coil Assembly Bolts

Courtesy of GENERAL MOTORS COMPANY

If servicing the ignition coil assembly, perform the following steps, if servicing an individual ignition coil proceed to step 6.
Install the ignition coil assembly.

CAUTION:

Install the ignition coil assembly bolts.
Tighten

Tighten the bolts to 10 N.m (89 lb in).

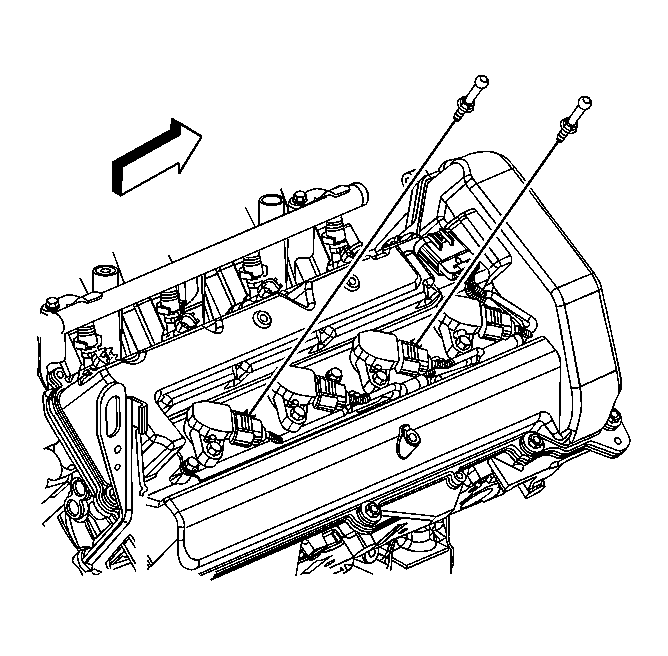

Fig 2: Identifying Fuel Injector Sight Shield Studs

Courtesy of GENERAL MOTORS COMPANY

Install the fuel injector sight shield studs.
Tighten

Tighten the studs to 10 N.m (89 lb in).

Fig 3: Locating Engine Harness Electrical Connectors

Courtesy of GENERAL MOTORS COMPANY

Connect the engine harness electrical connector (4) to the ignition coil assembly.

Fig 4: Identifying Ignition Coil

Courtesy of GENERAL MOTORS COMPANY

Install the ignition coil (2), as required.
Install the individual ignition coil bolt (1), as required.
Tighten

Tighten the bolt to 10 N.m (89 lb in).
Connect the individual ignition coil electrical connector (3), as required.
Install both of the fuel injector sight shields. Refer to Fuel Injector Sight Shield Replacement .
