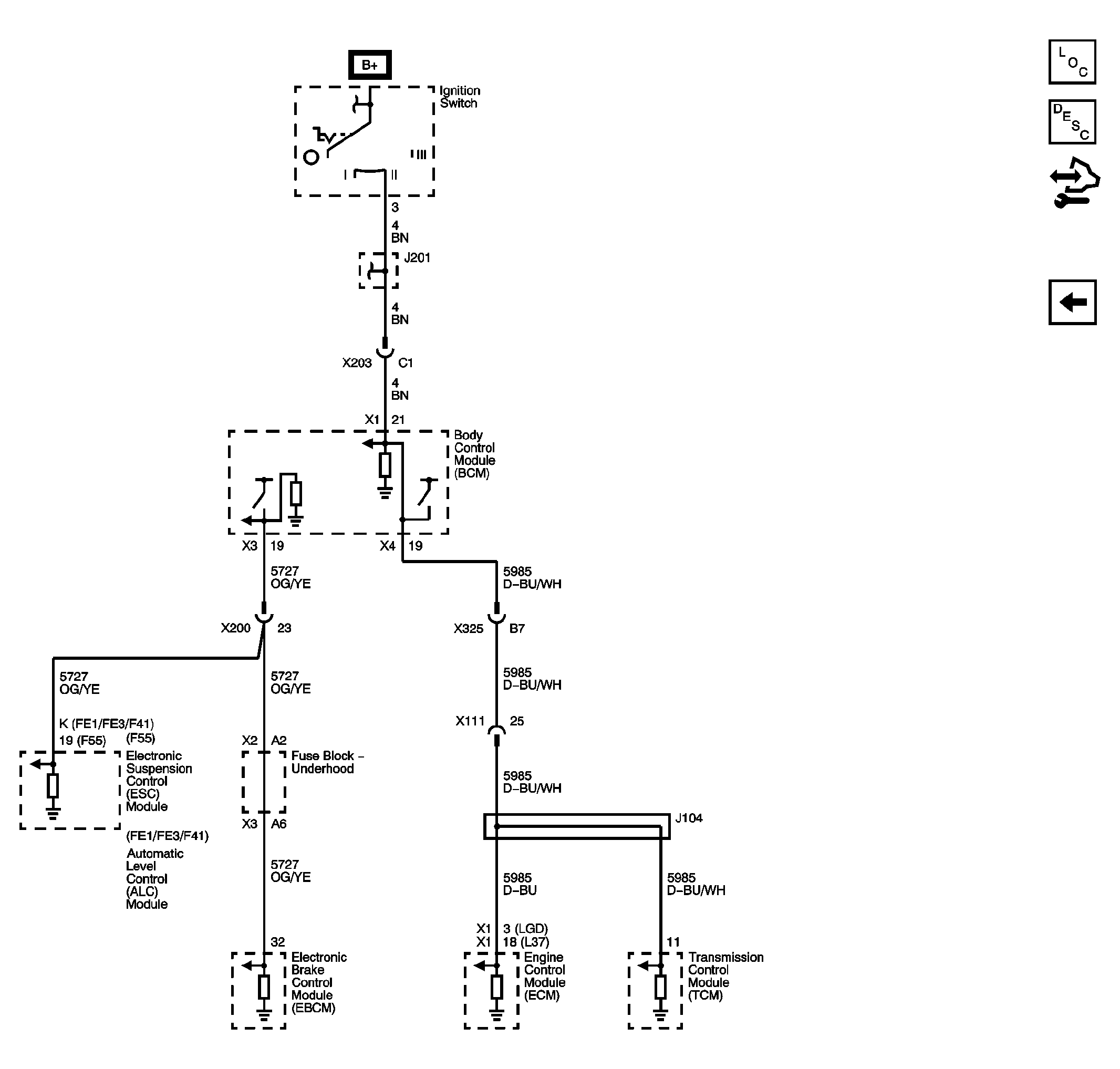

Home >> Buick >> 2011 >> Lucerne CX >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Serial Data Wake Up Wiring Schematics
