Air Cleaner Outlet Duct Replacement
Air Cleaner Outlet Duct Replacement

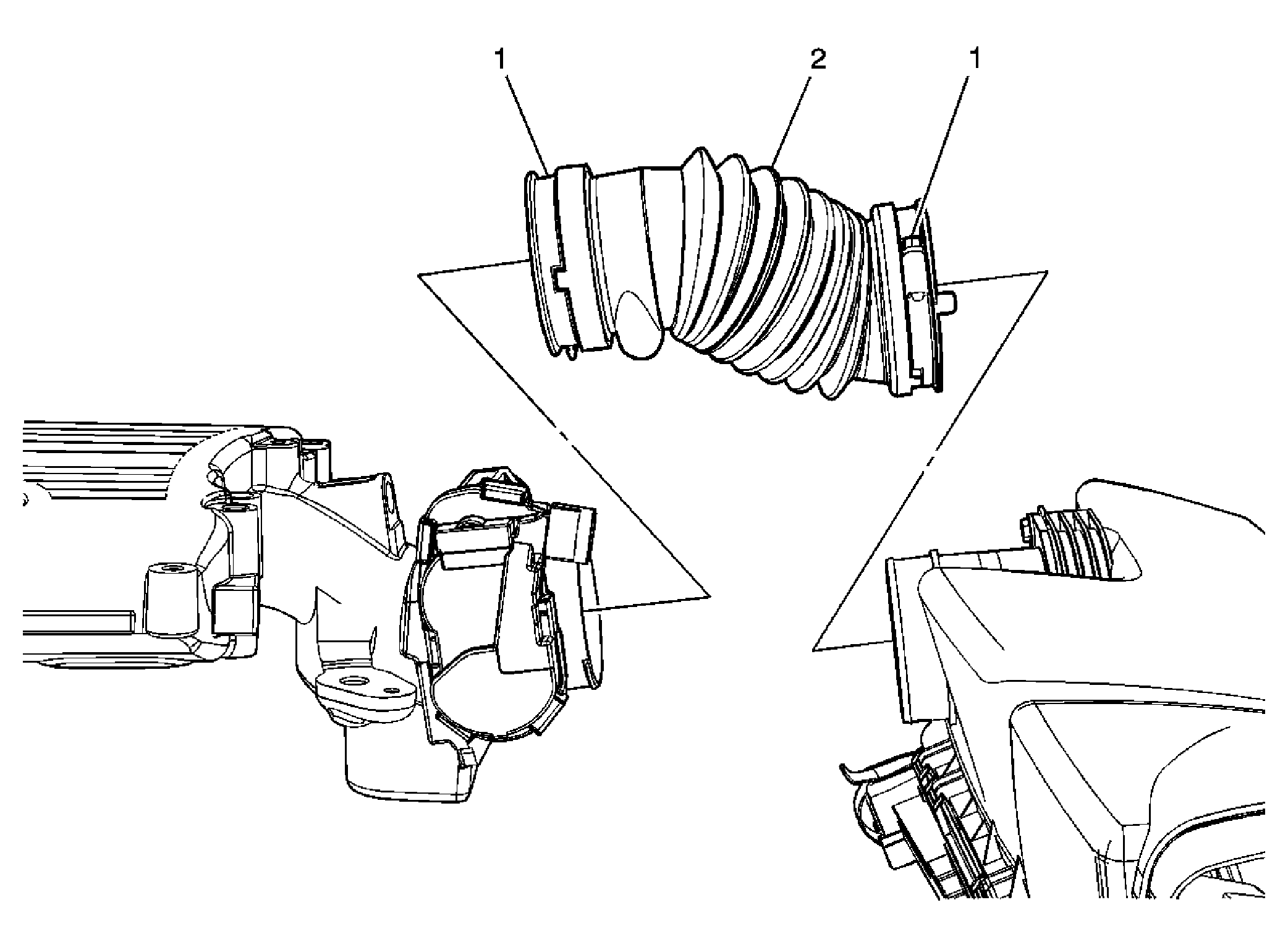

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the PCV tube from the outlet duct. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement |
|
| 1 | Air Cleaner Outlet Duct Clamp (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m(35 lb in). |
| 2 | Air Cleaner Outlet Duct |
