Removal Procedure

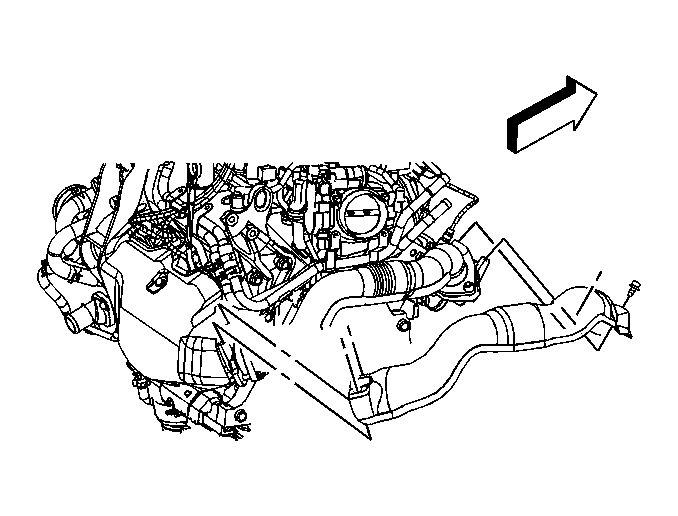

    Fig 1: Identifying Exhaust Crossover Pipe Heat Shield
    GM1617973Courtesy of GENERAL MOTORS COMPANY
  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  2. Remove the exhaust crossover pipe heat shield bolts.
  3. Remove the exhaust crossover pipe heat shield.

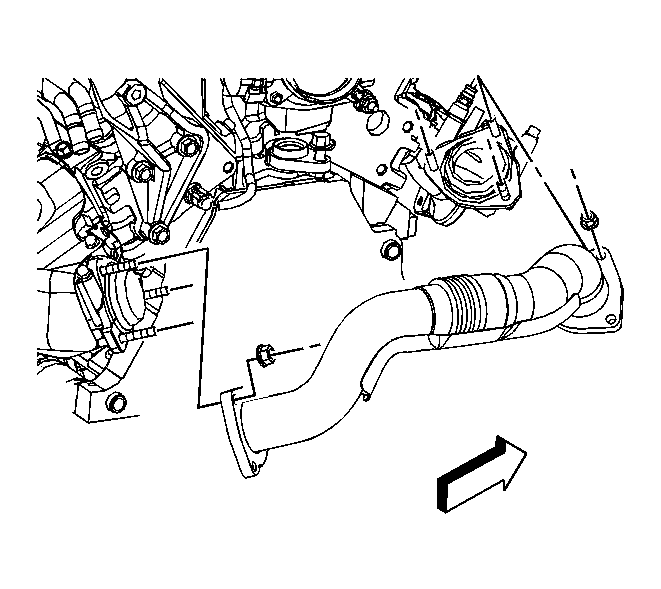

    4. Fig 2: Locating Exhaust Crossover Pipe & Left Exhaust Manifold Nuts
    GM1617975Courtesy of GENERAL MOTORS COMPANY
  4. Remove the exhaust crossover pipe nuts.
  5. Remove the exhaust crossover pipe.
  6. Remove the exhaust crossover pipe seals.
