Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2010 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

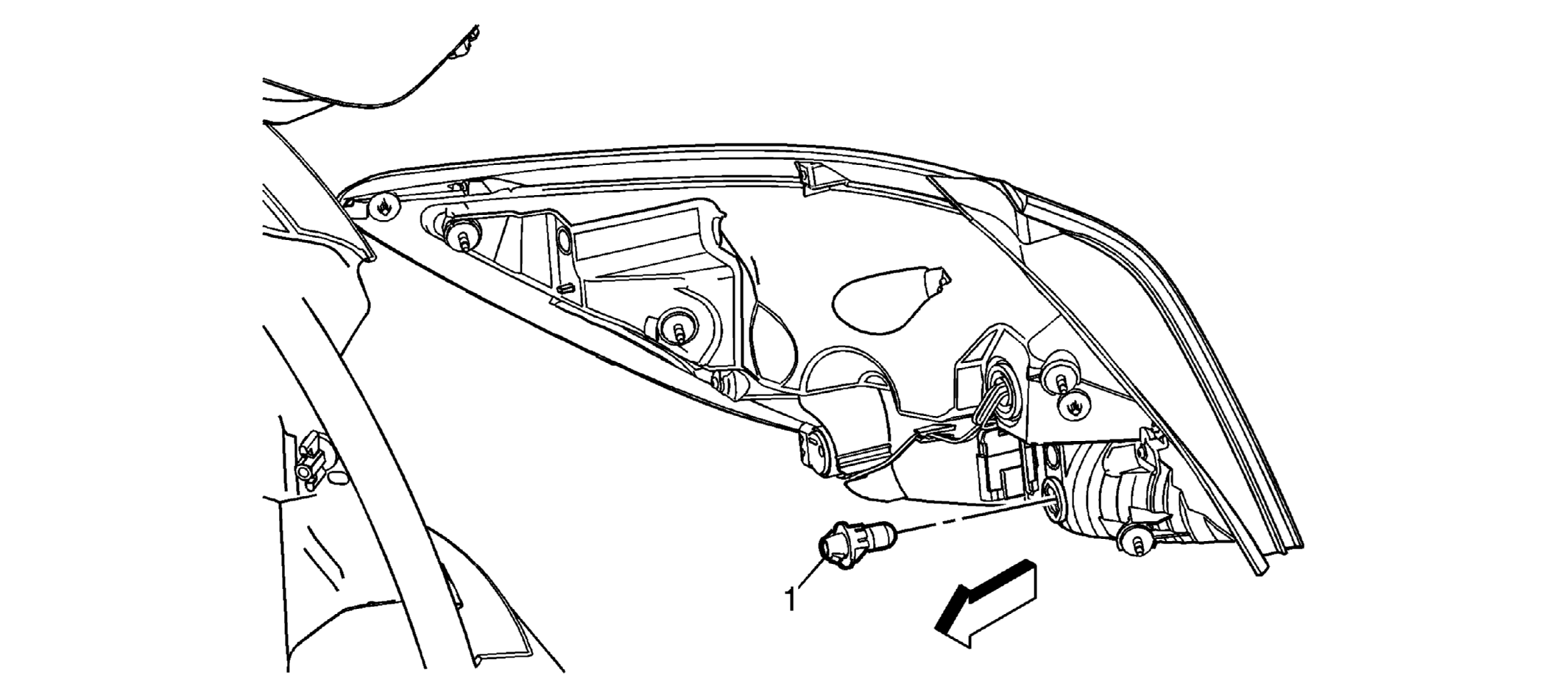

Fig 1: Backup Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear tail lamp assembly. Refer to Tail Lamp Replacement .
1	Back Up Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Rotate the bulb socket counterclockwise and remove from the lamp housing. Remove the bulb from the lamp socket.

Callout

Component Name

Preliminary Procedure:
Remove the rear tail lamp assembly. Refer to Tail Lamp Replacement .

Back Up Lamp Bulb

WARNING: Refer to Halogen Bulb Warning .

Procedure

Rotate the bulb socket counterclockwise and remove from the lamp housing.
Remove the bulb from the lamp socket.
