Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (LLT)

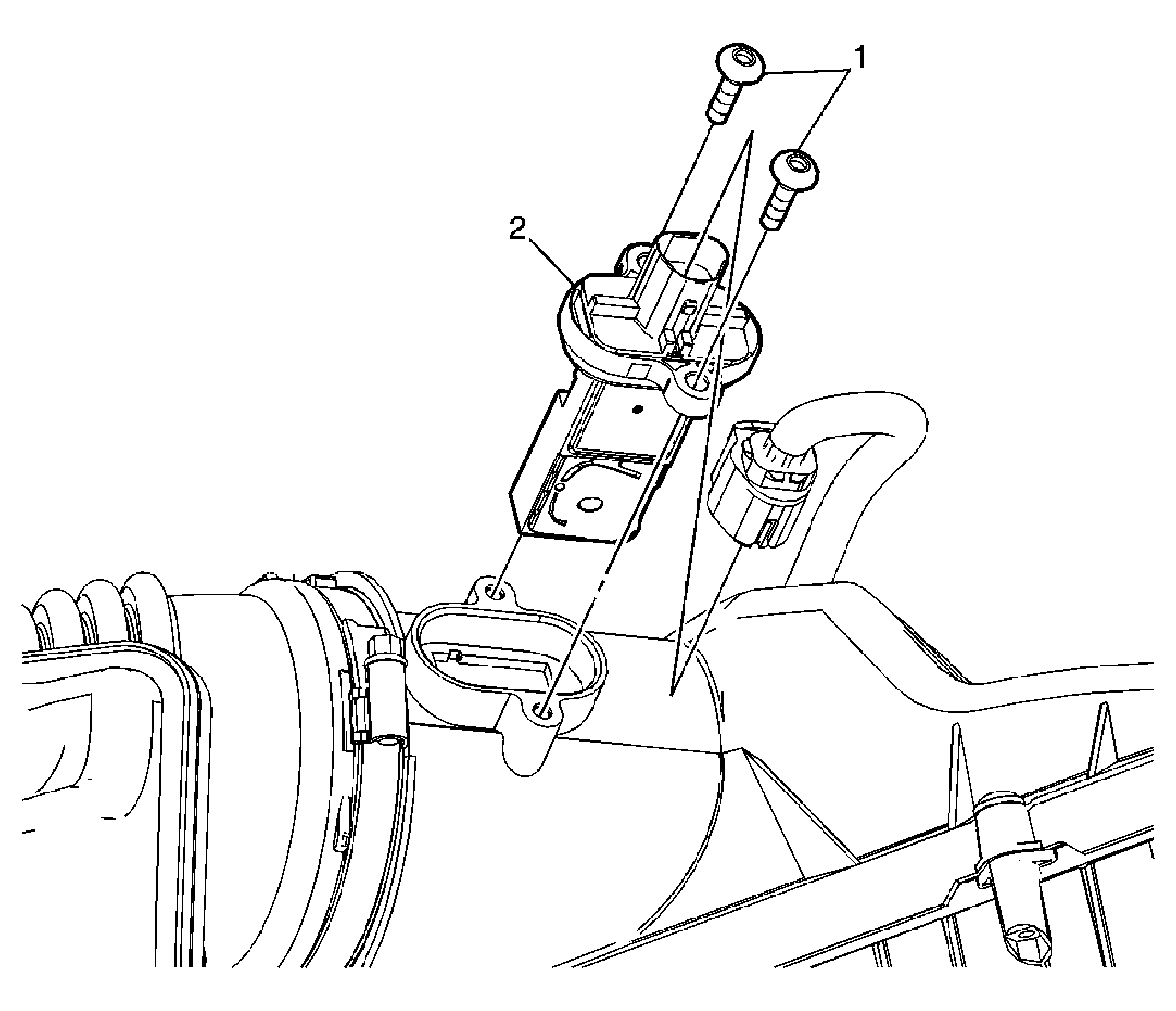

| Callout | Component Name |
|---|---|
| 1 | Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 3 N.m (27 lb in) |
| 2 | Mass Airflow Sensor Procedure: Disconnect the mass airflow sensor harness connector. |
