Fuel Pipe Shield Replacement (LLT)

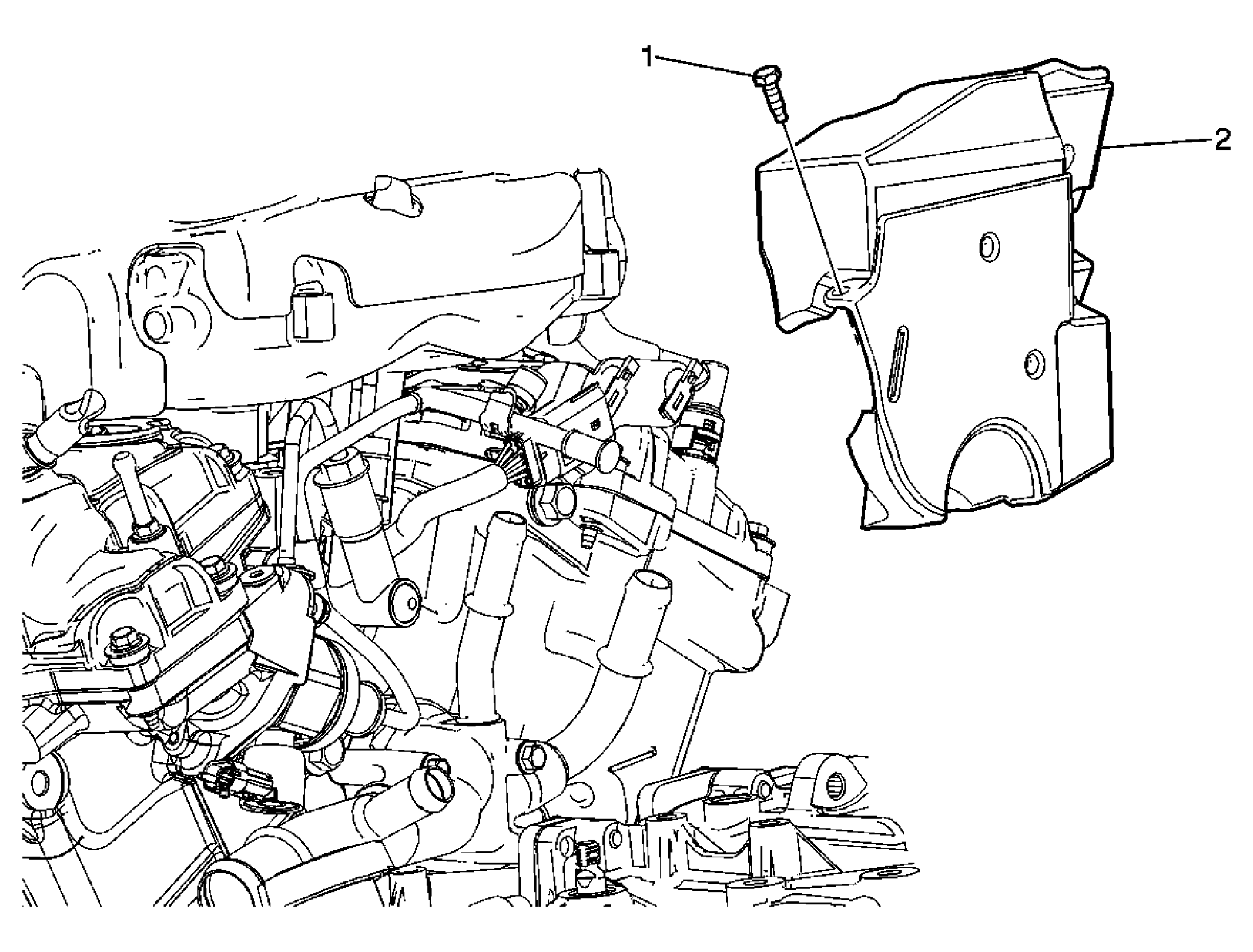

Fig 1: Fuel Pipe Shield (LLT)
GM2193113Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1 Bolt
CAUTION: Refer to Fastener Caution .

Tighten:  10 N.m (89 lb in)
2 Fuel Pipe Shield
