Air Cleaner Element Replacement (LLT)

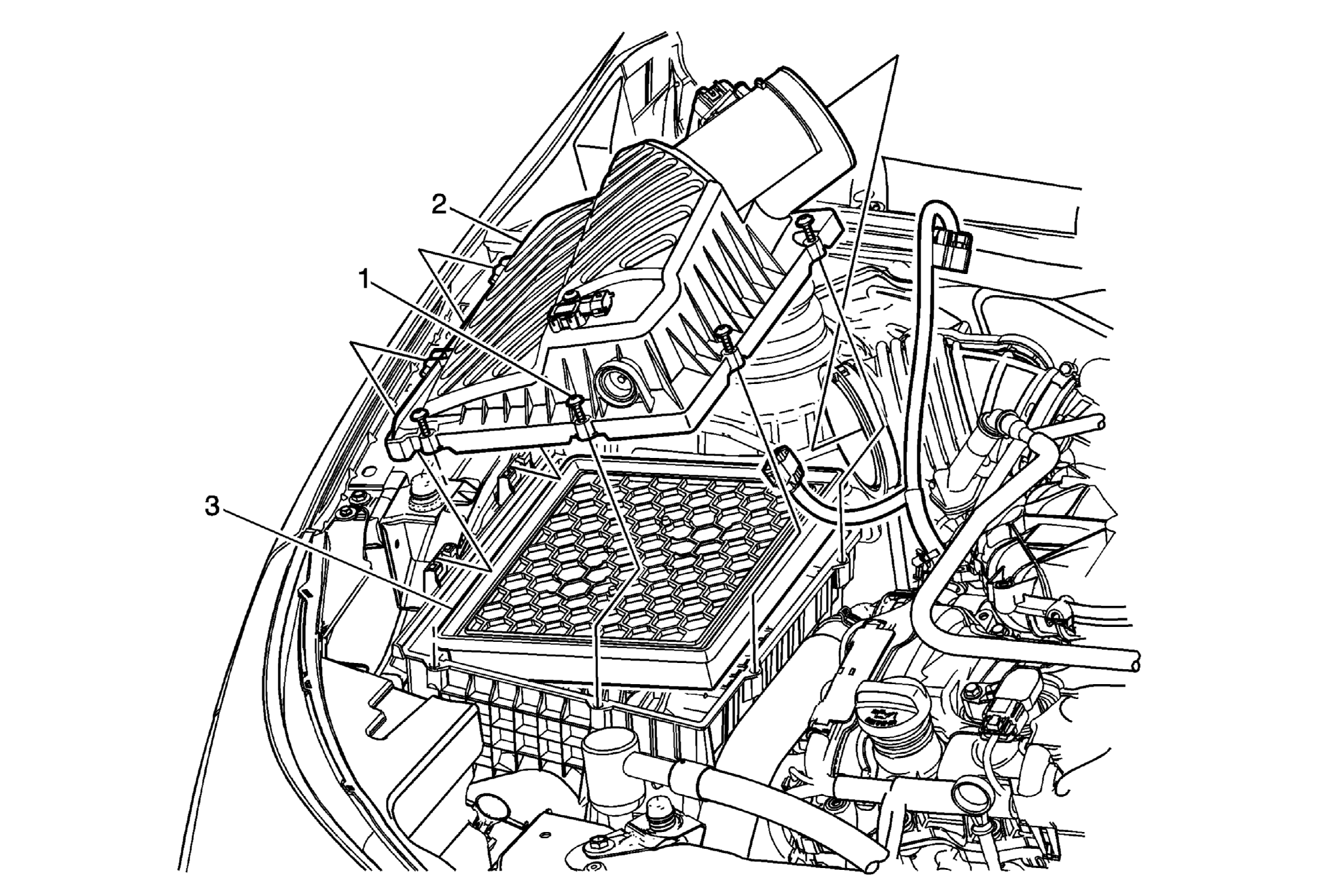

Fig 1: Air Cleaner Element (LLT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Cleaner Fastener (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 5 N.m (44 lb in)
2	Air Cleaner Upper Cover Procedure From the left side of the air cleaner cover, tilt the cover upward. Disengage the upper cover tabs from the lower cover. Remove the air cleaner upper cover from the vehicle.
3	Air Cleaner Element

Callout

Component Name

Air Cleaner Fastener (Qty: 6)

CAUTION: Refer to Fastener Caution .

Tighten: 5 N.m (44 lb in)

Air Cleaner Upper Cover

Procedure

Air Cleaner Element
