Air Cleaner Assembly Replacement (LF1)

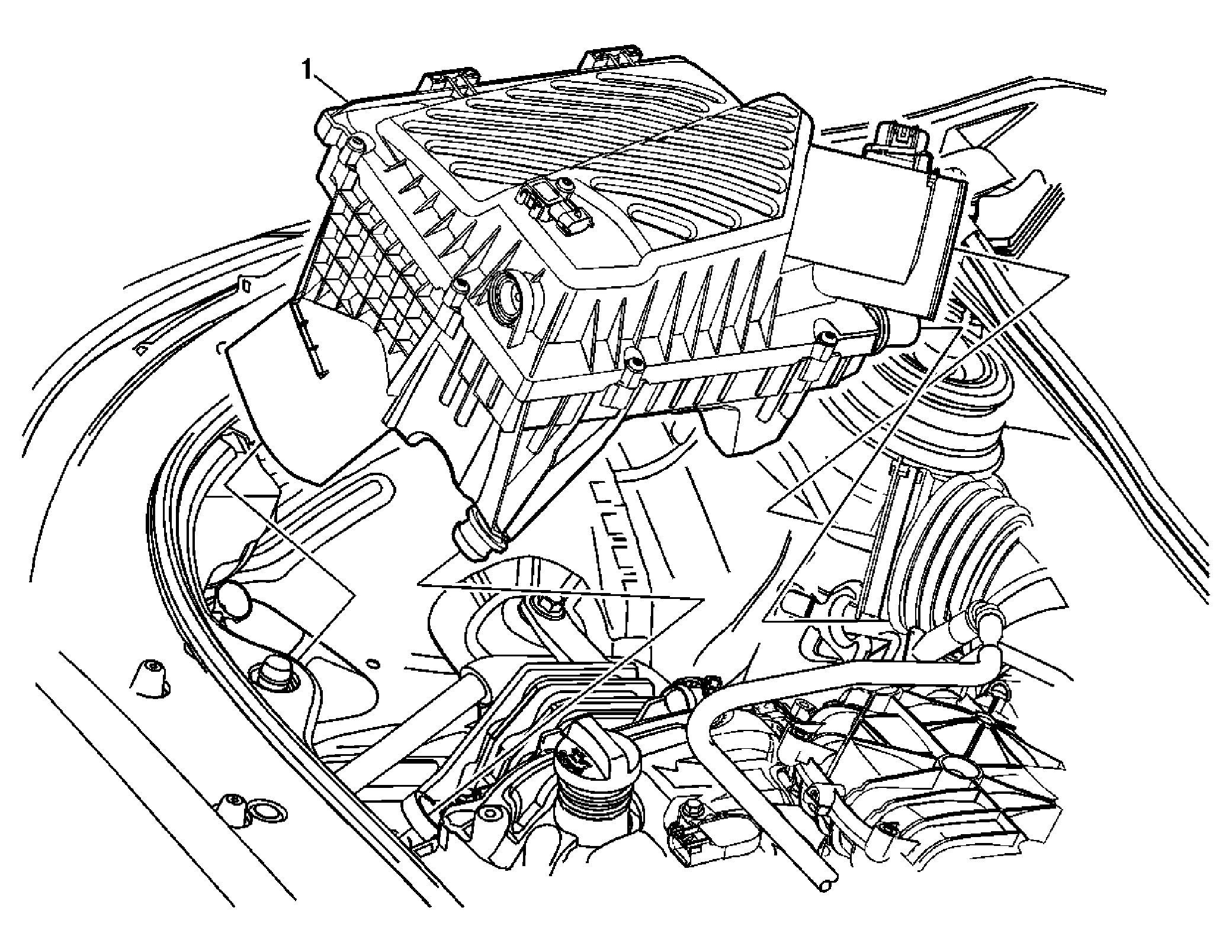

Fig 1: Air Cleaner Assembly (LF1)
GM2193087Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LLT)  or Air Cleaner Outlet Duct Replacement (LF1) .
1 Air Cleaner Assembly

Procedure

  1. Transfer parts as necessary.
  2. Disconnect the electrical connectors.
