Radio/Navigation System Wiring Schematics

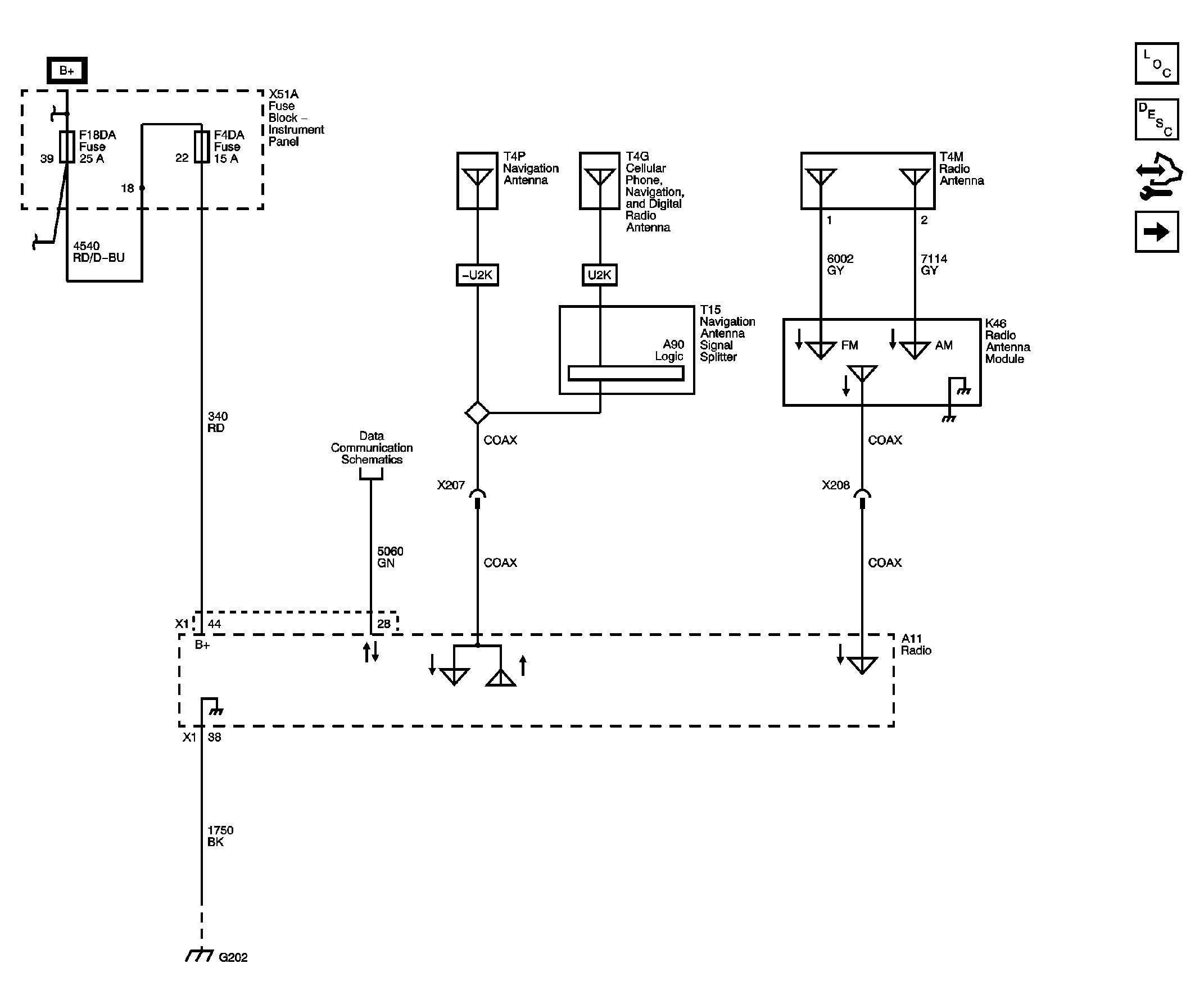

Fig 1: Power, Ground, Antennas and Serial Data Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

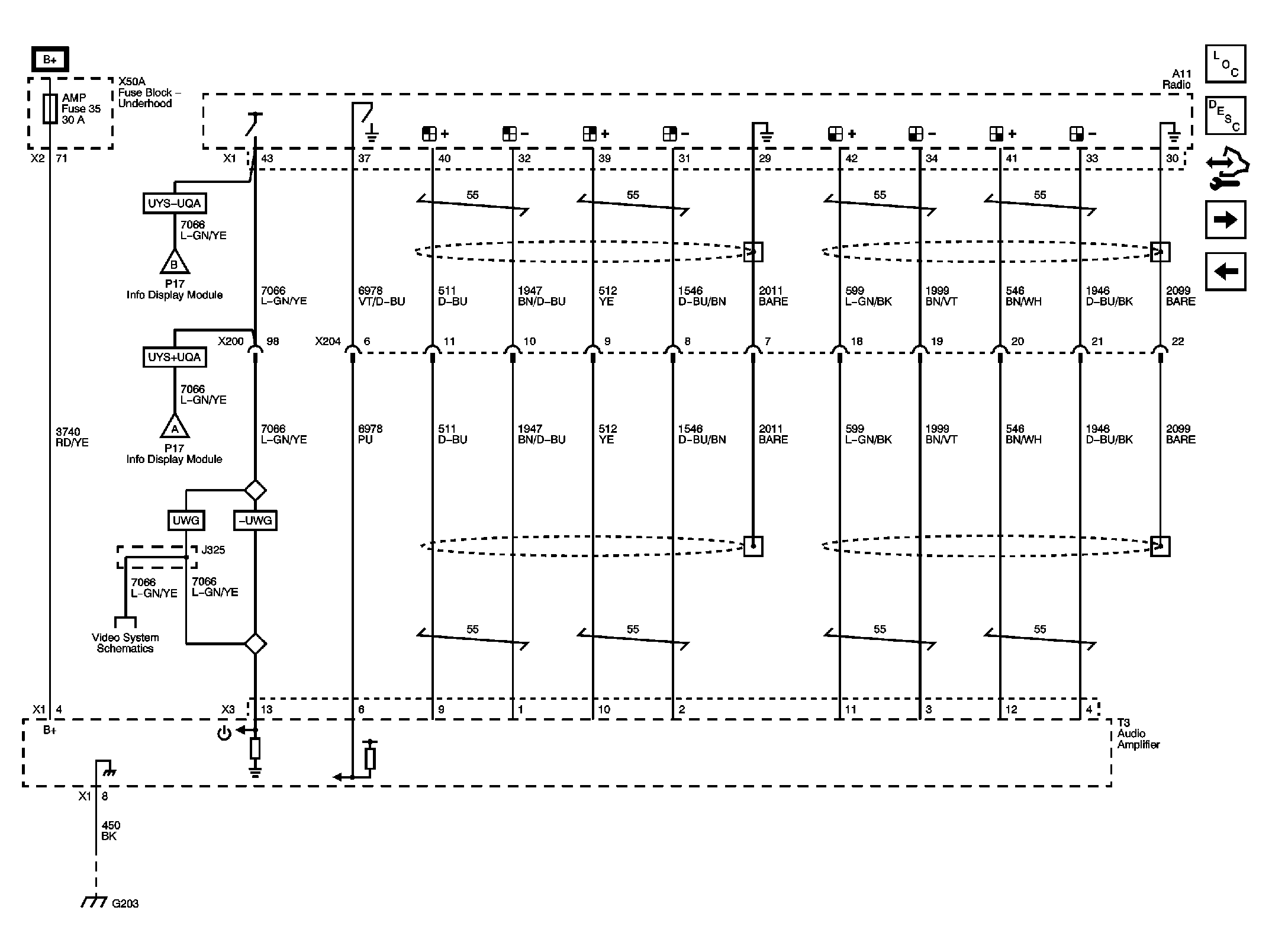

Fig 2: Amplifier (UQA) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

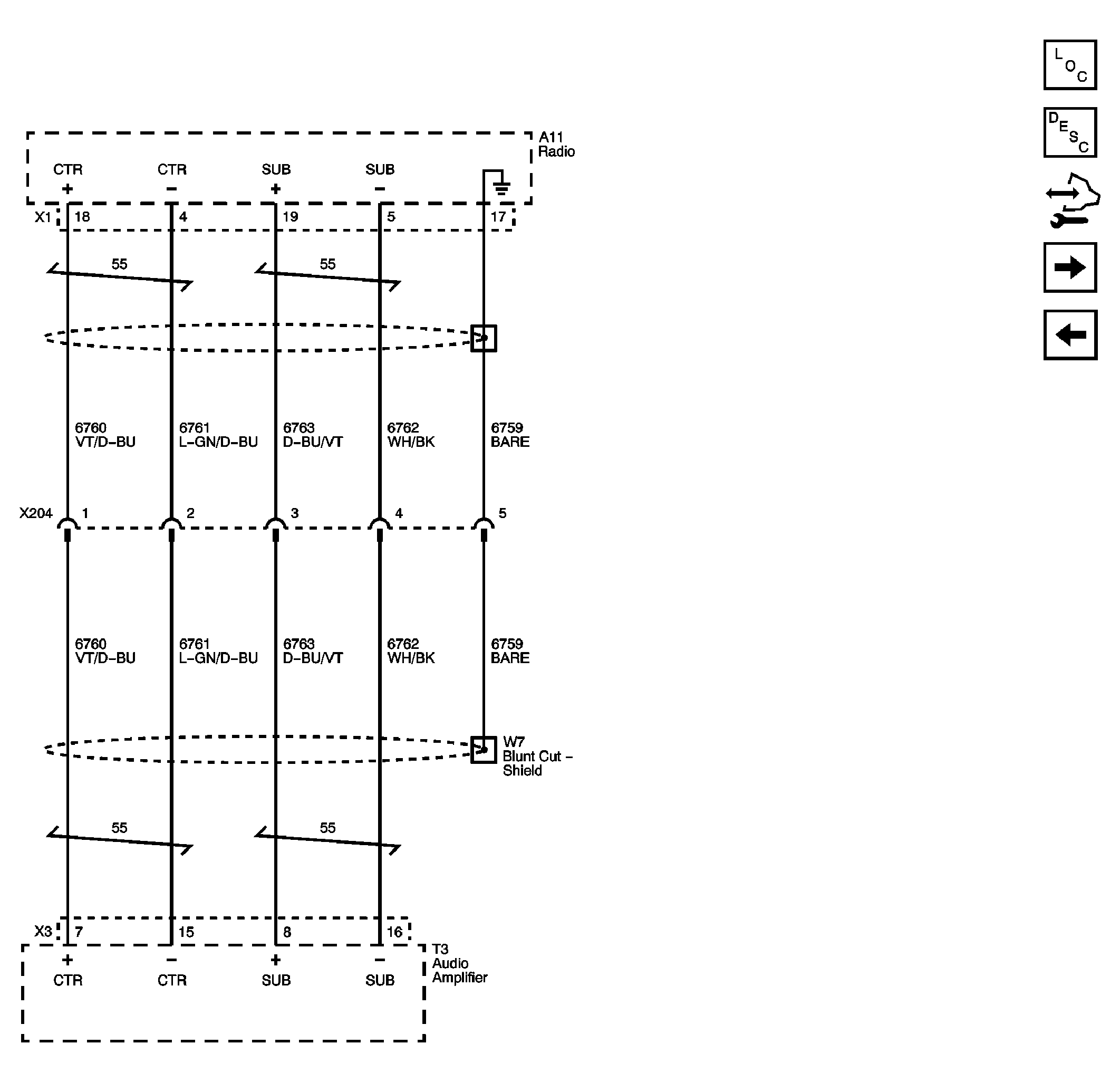

Fig 3: Amplifier (UQA with UYS or UWG) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

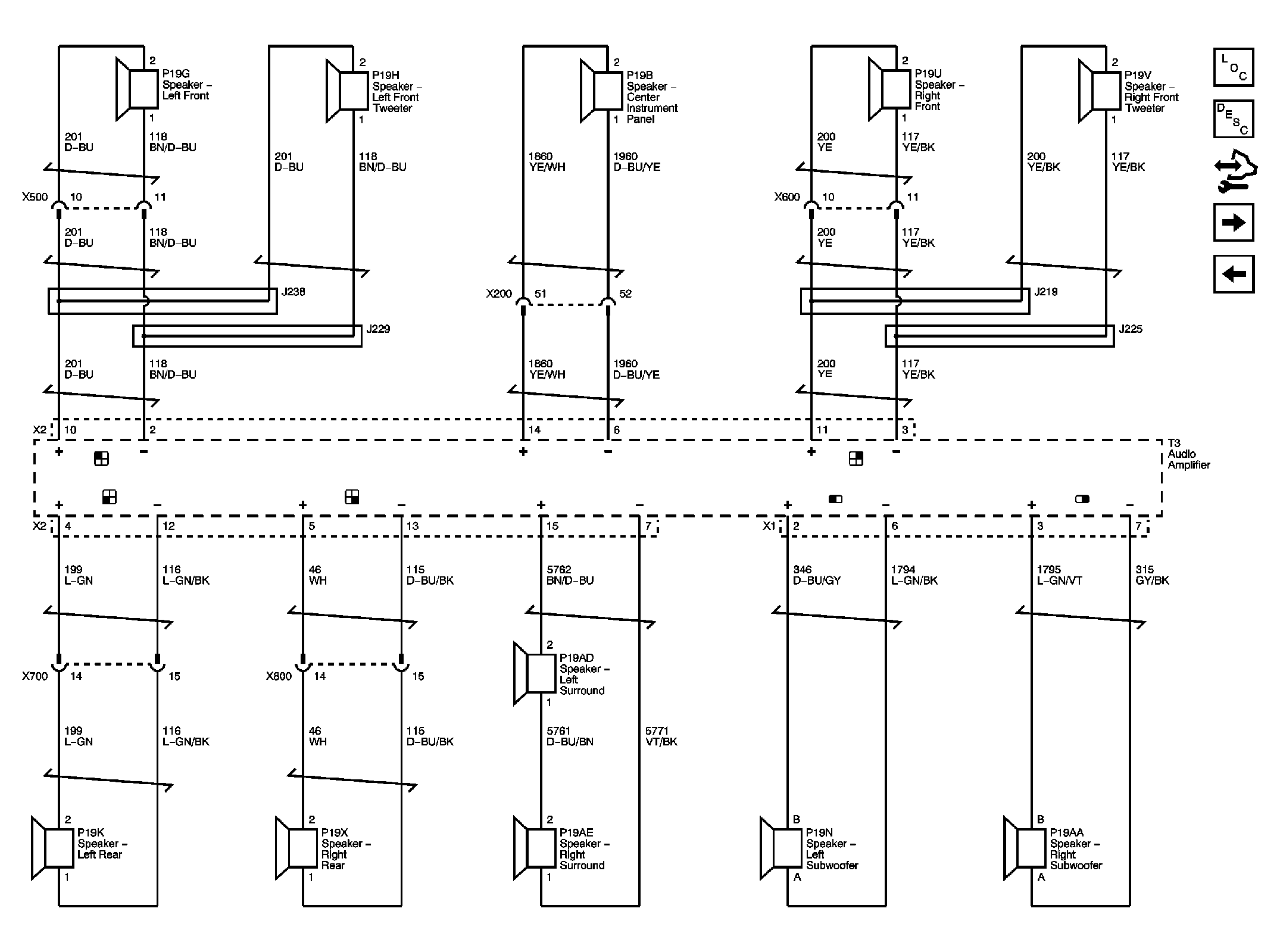

Fig 4: Speakers (UQA) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

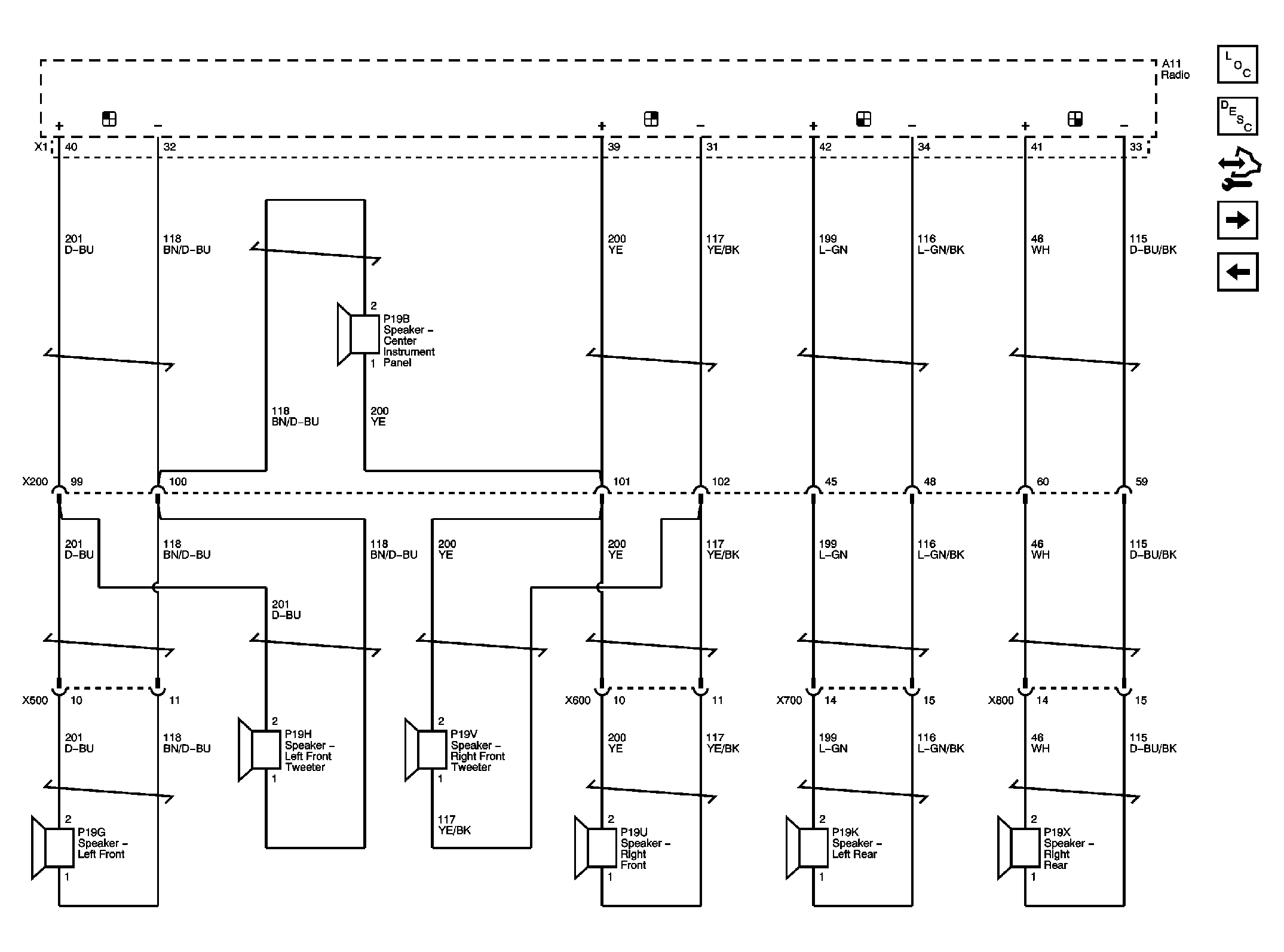

Fig 5: Speakers (U65) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Non-Navigation System (without UYS) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

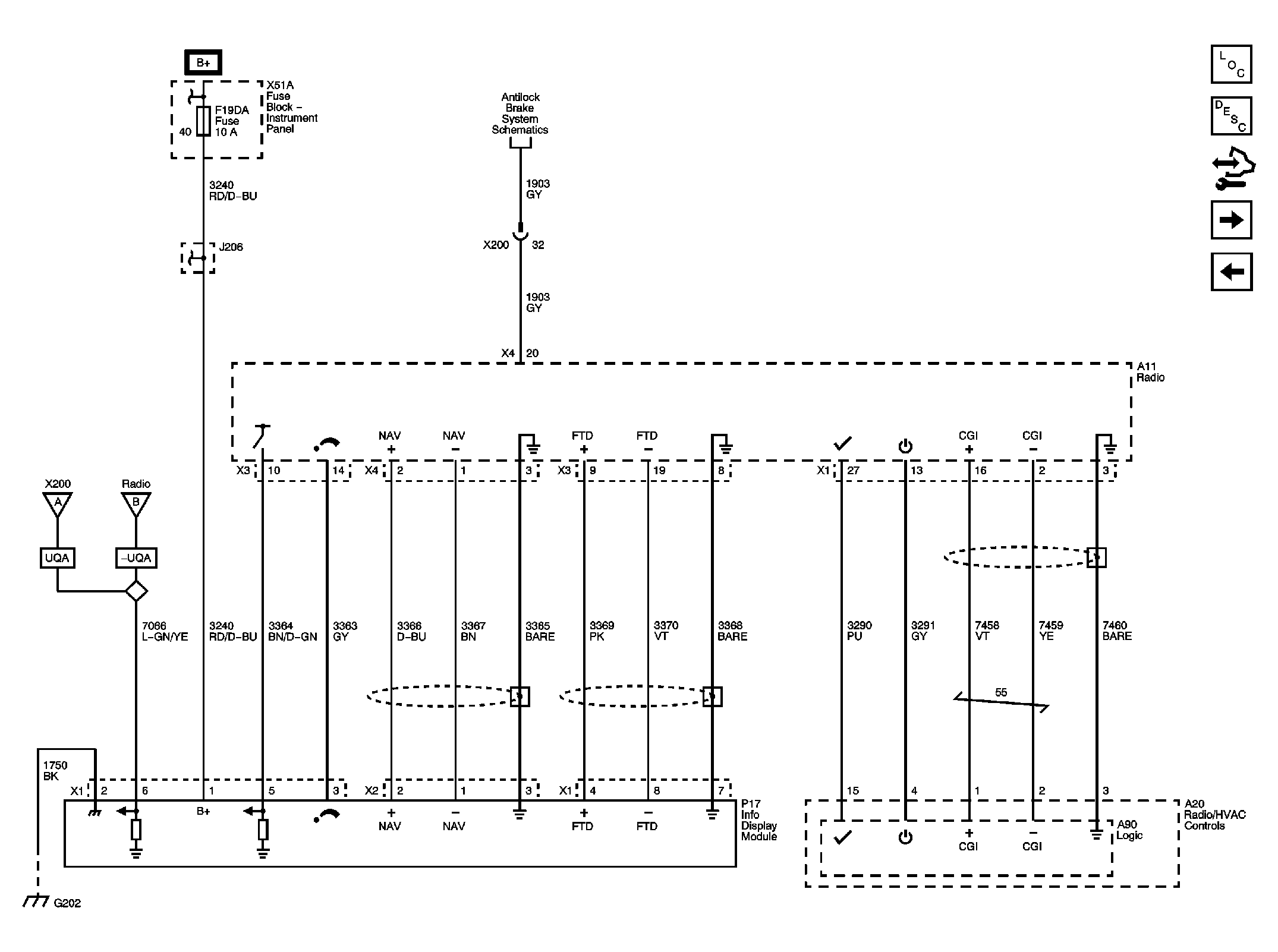

Fig 7: Navigation System (UYS) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

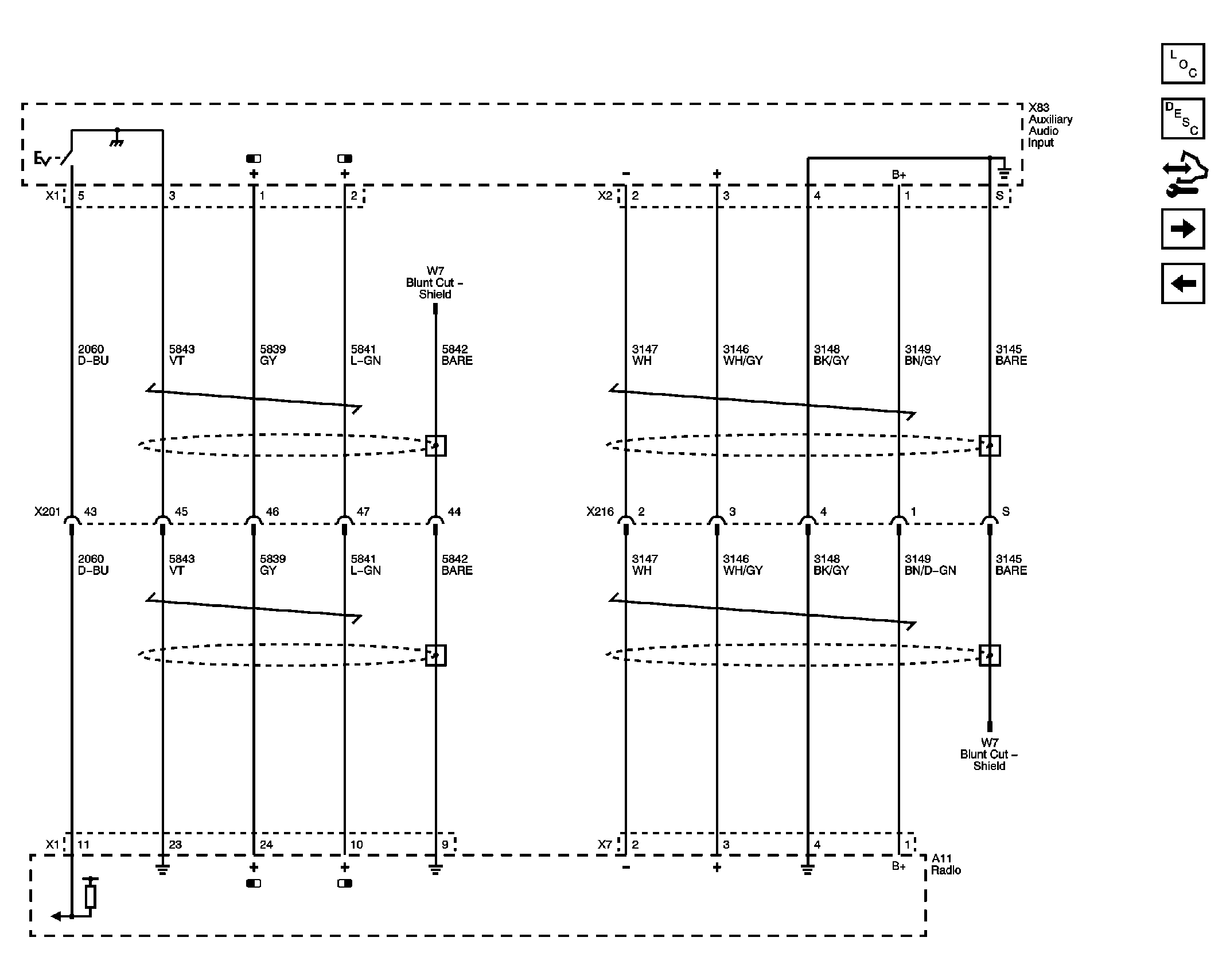

Fig 8: USB Interface (USR without KTA) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

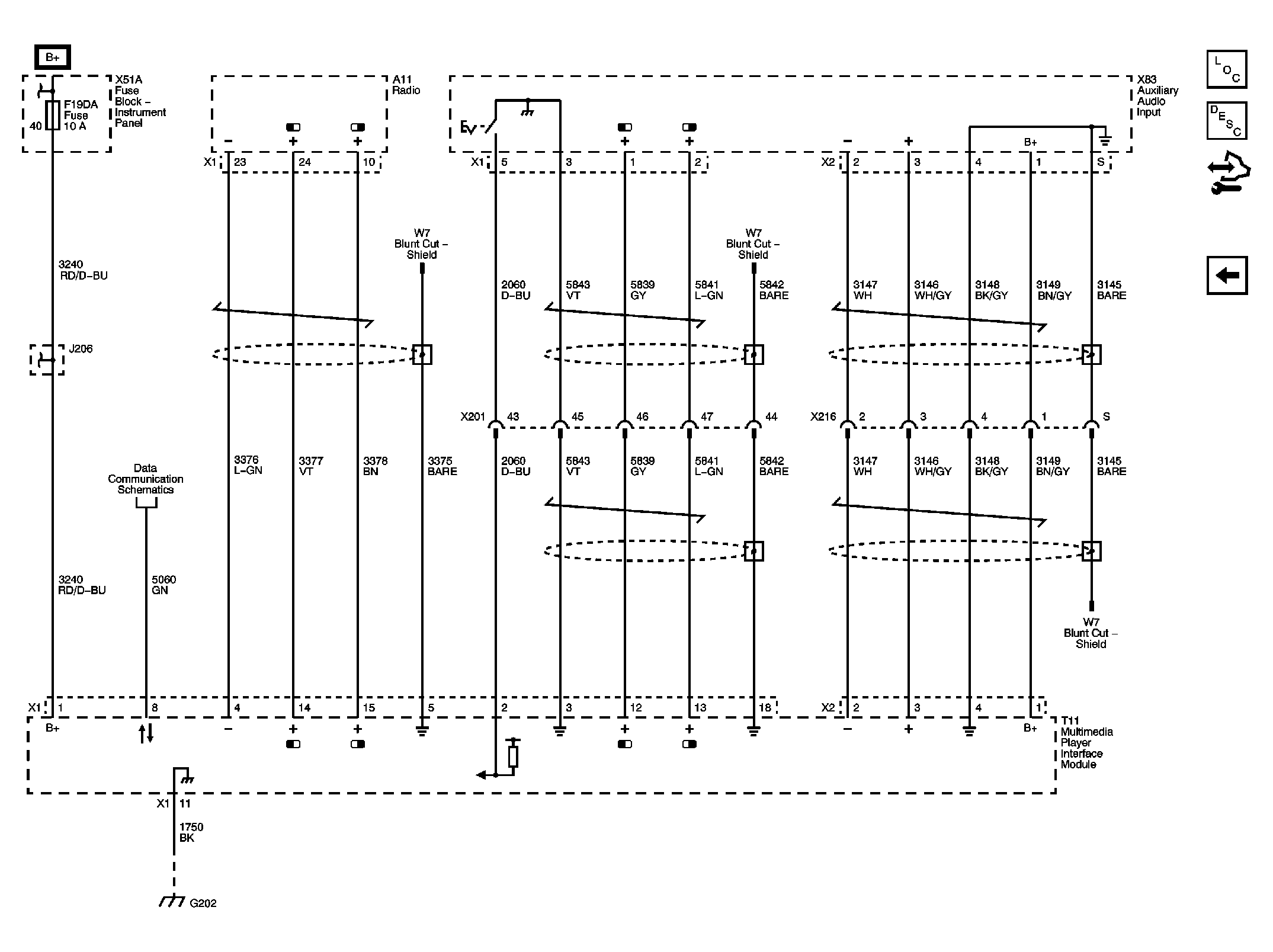

Fig 9: USB Interface (KTA) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
