Object Detection Wiring Schematic

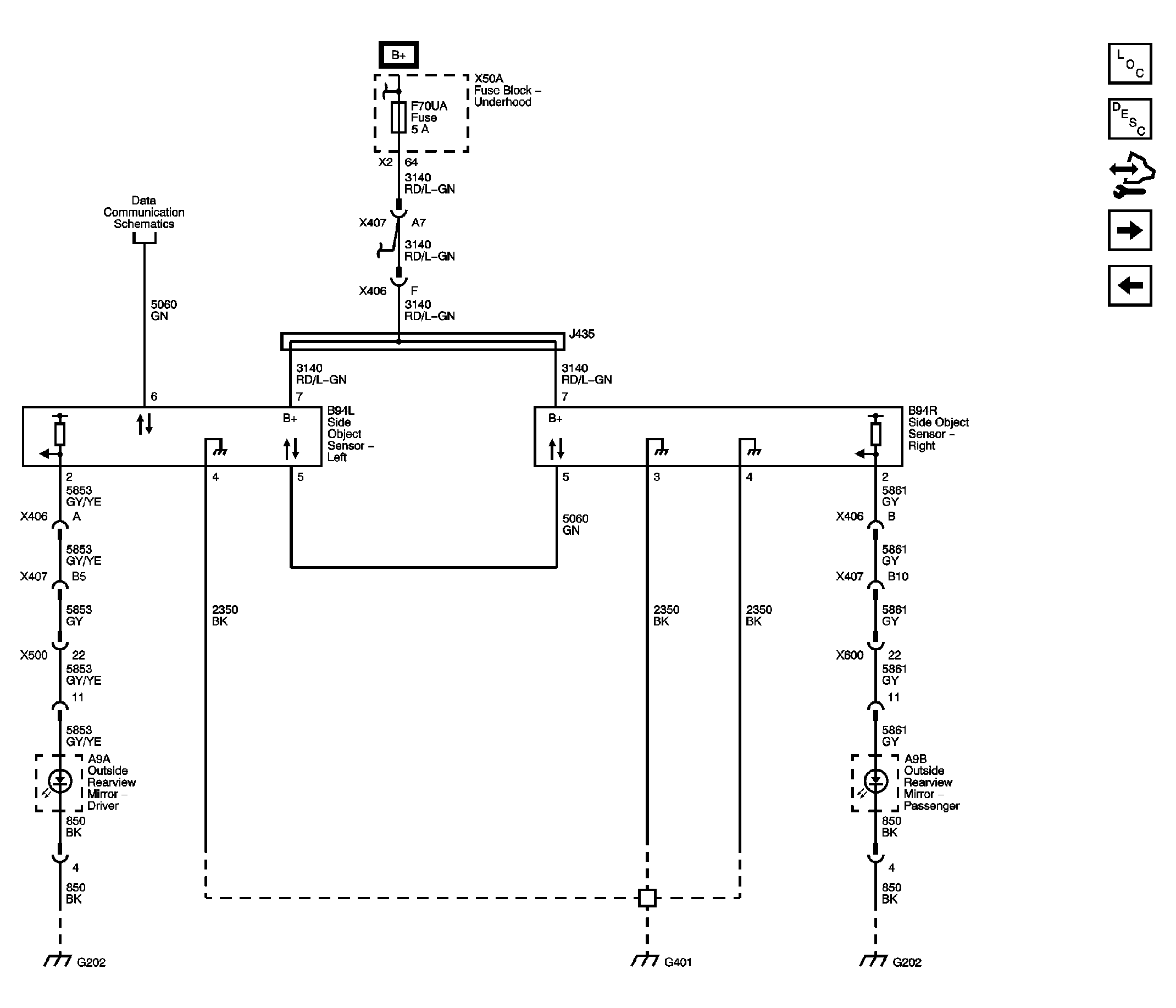

Fig 1: Side Object Detection (UFT) Wiring Schematic
GM2394850Courtesy of GENERAL MOTORS CORP.

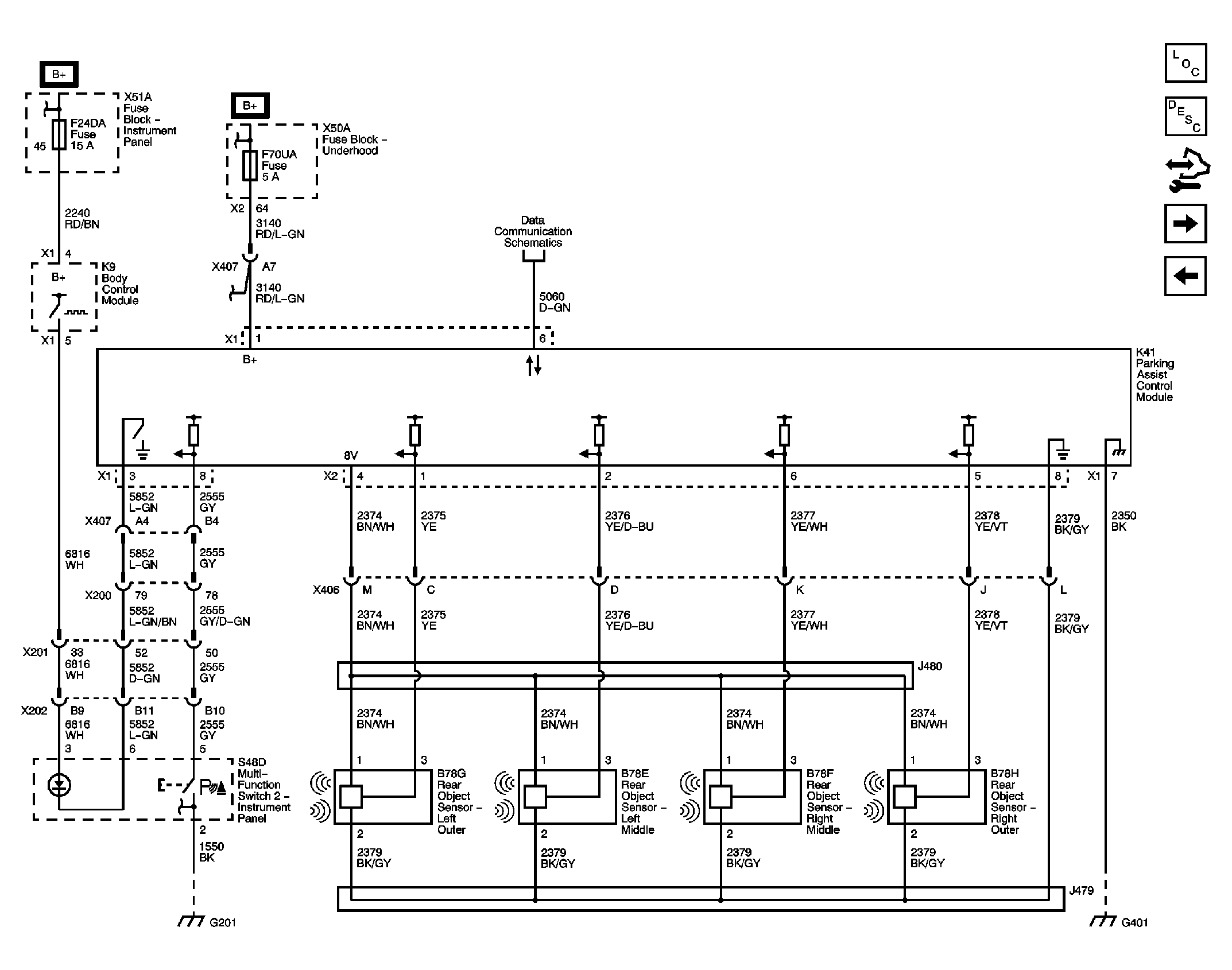

Fig 2: Rear Object Detection (UD7) Wiring Schematic
GM2394851Courtesy of GENERAL MOTORS CORP.

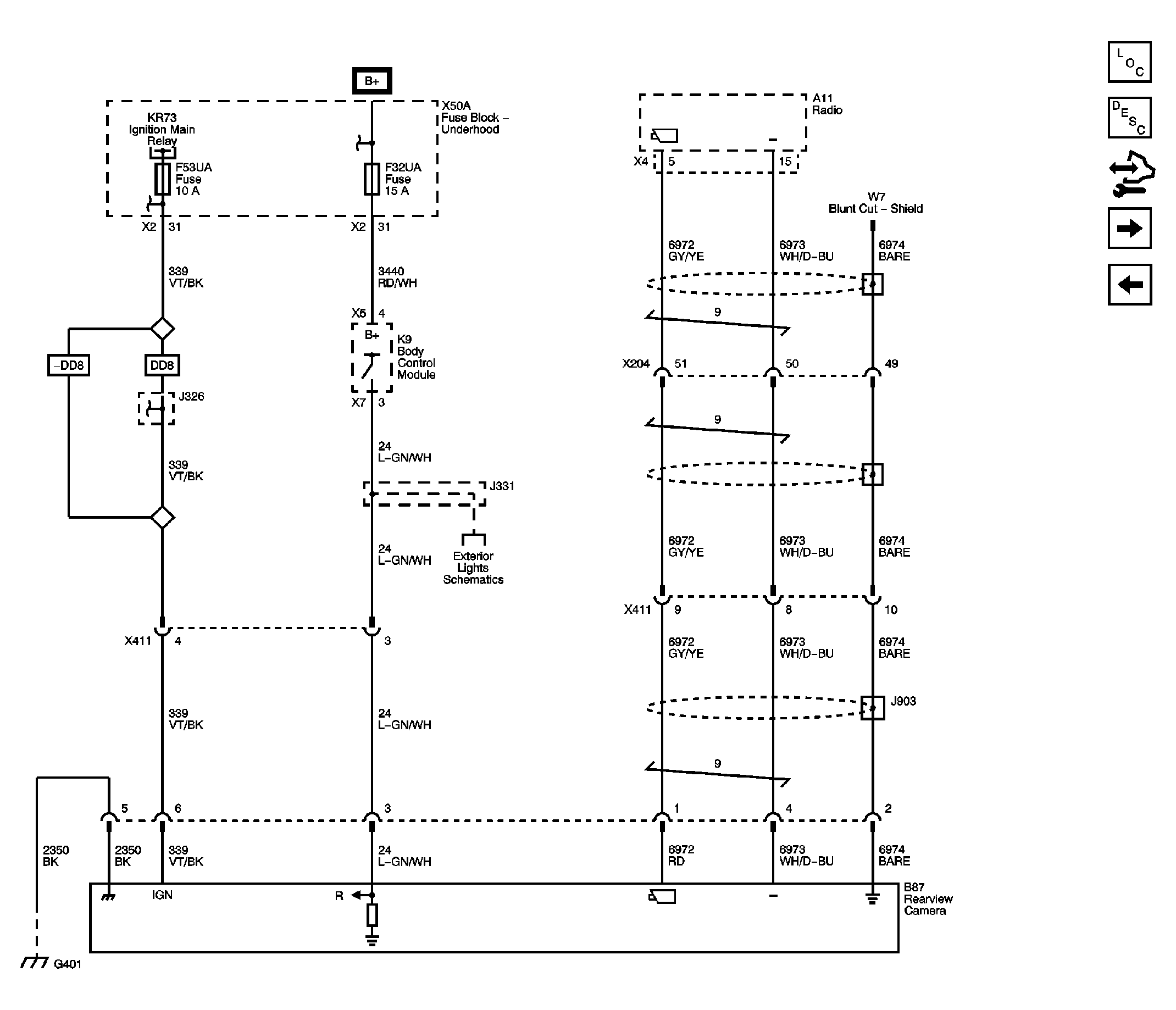

Fig 3: Rear Vision Camera (UVC) Wiring Schematic
GM2394853Courtesy of GENERAL MOTORS CORP.

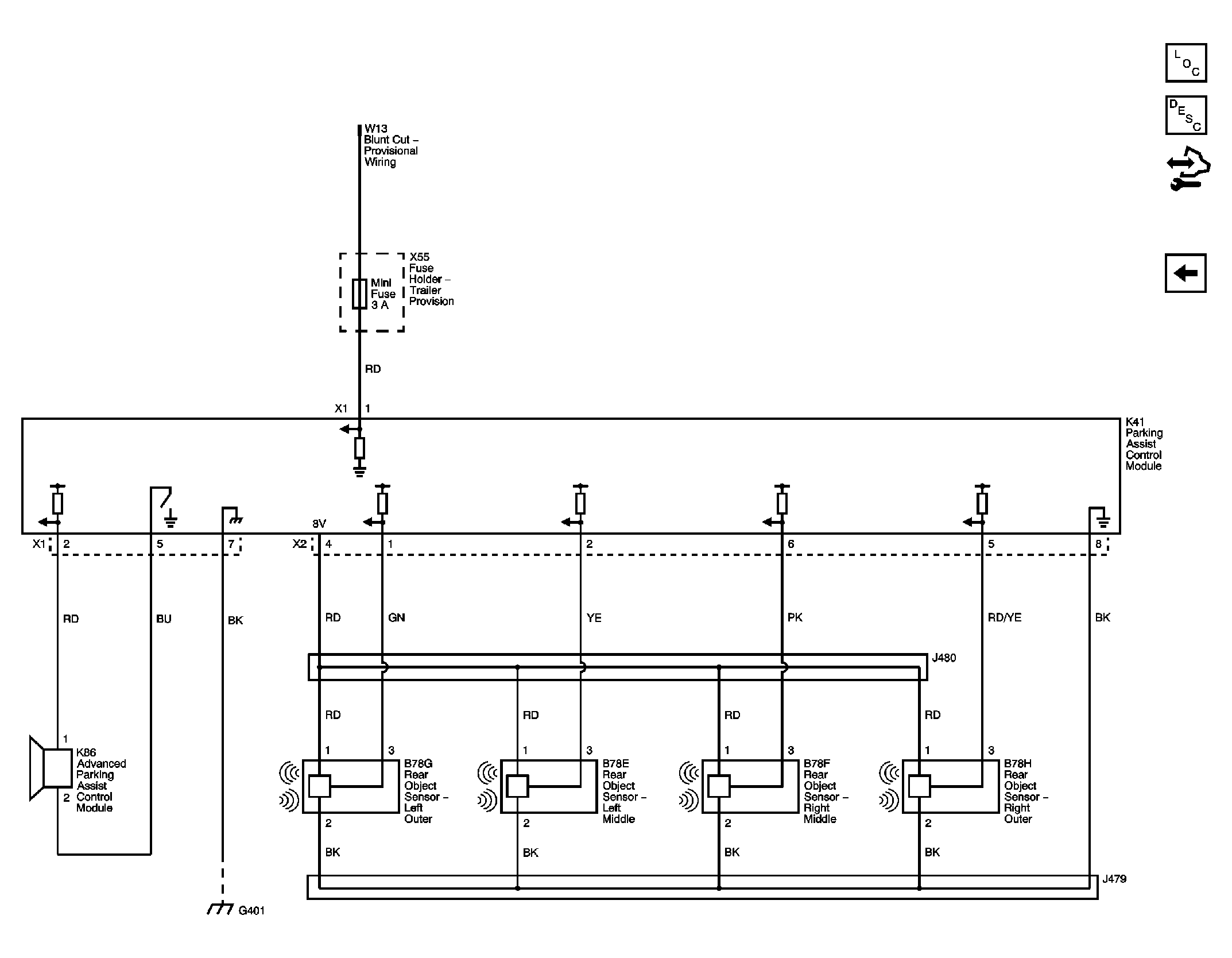

Fig 4: Rear Parking Assist Kit (SPO Accessory) Wiring Schematic
GM2394854Courtesy of GENERAL MOTORS CORP.
