Data Communication Schematics

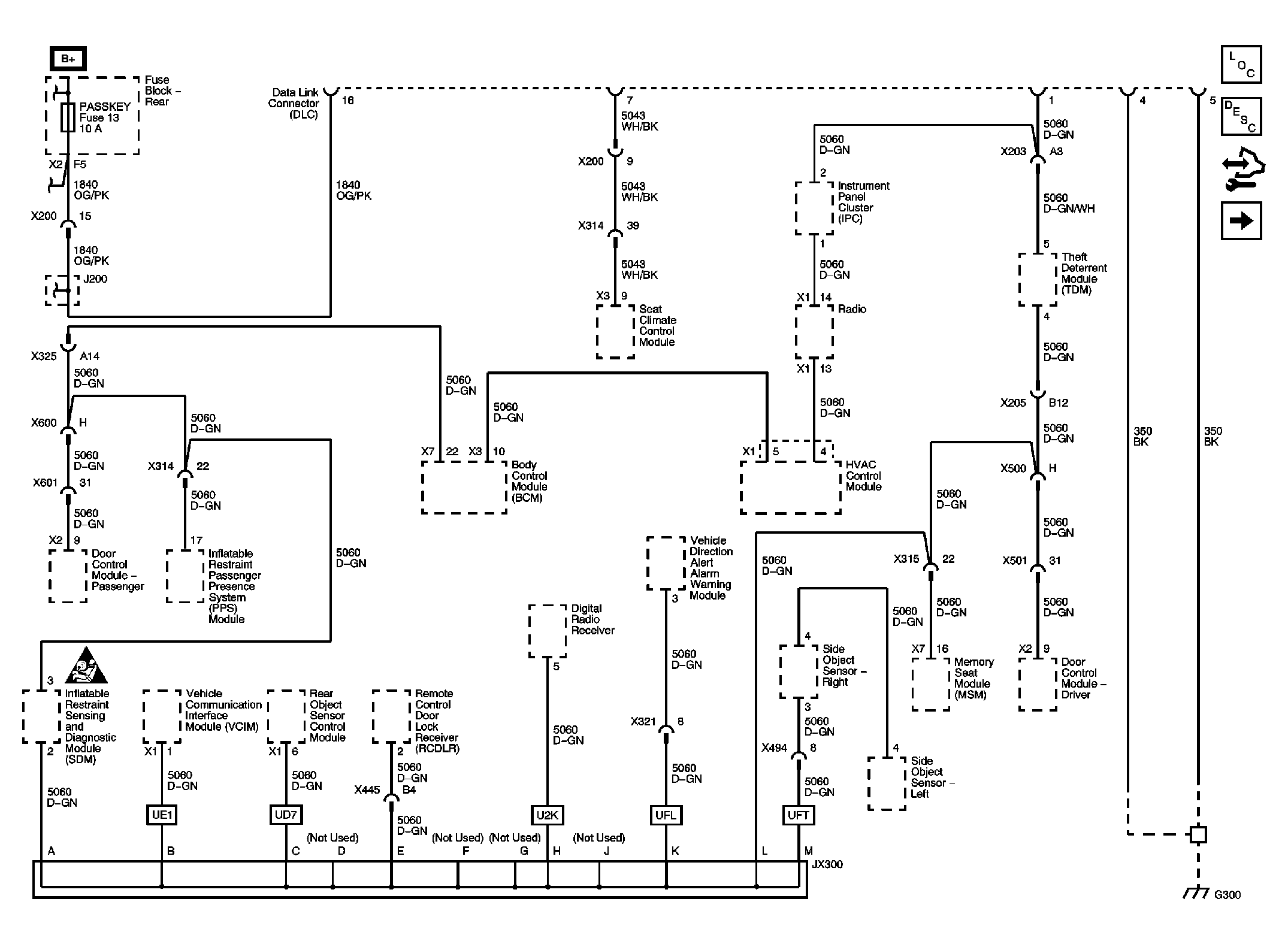

Fig 1: Power, Ground and Low Speed GMLAN
GM2228022Courtesy of GENERAL MOTORS CORP.

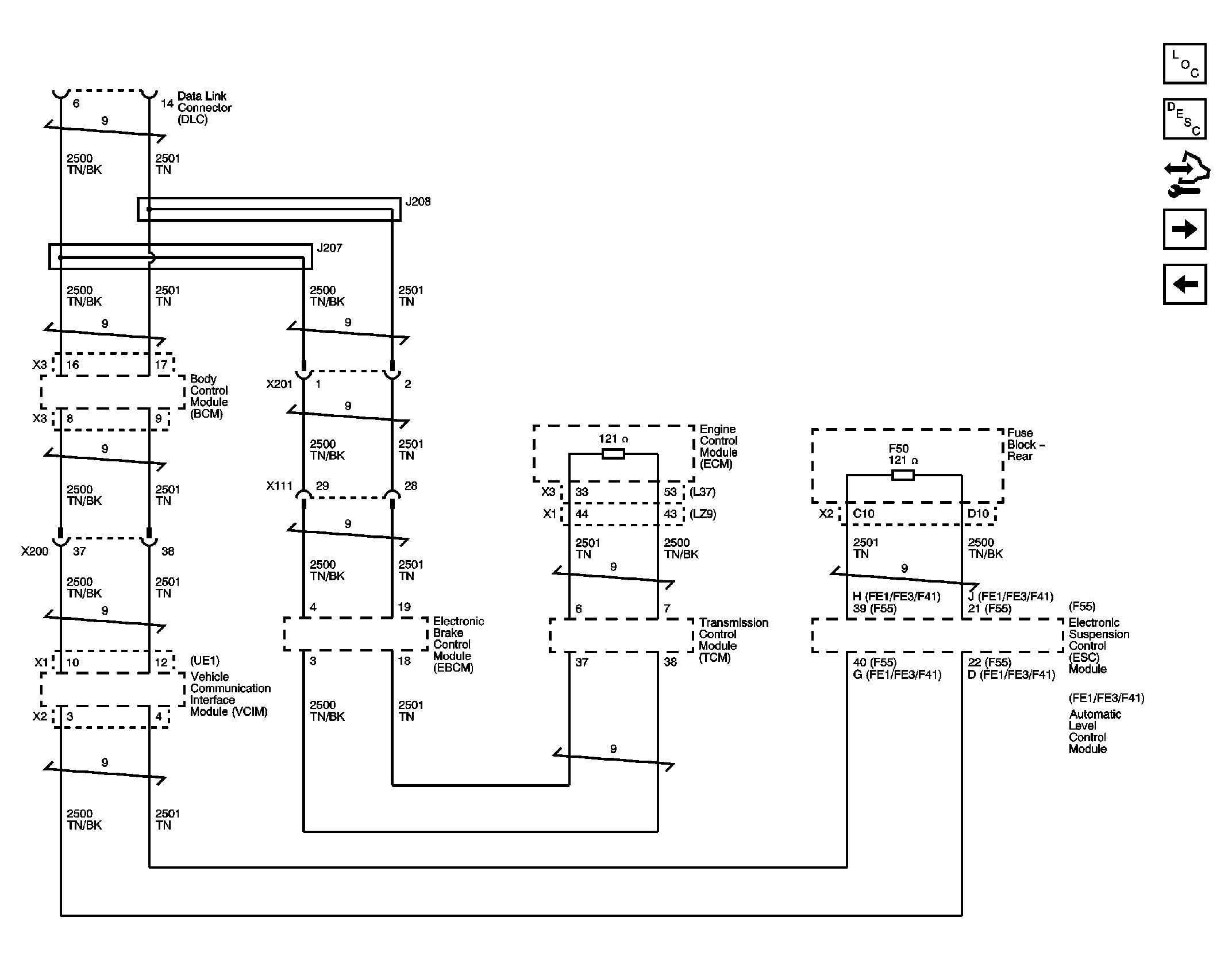

Fig 2: High Speed Serial Data
GM2228024Courtesy of GENERAL MOTORS CORP.

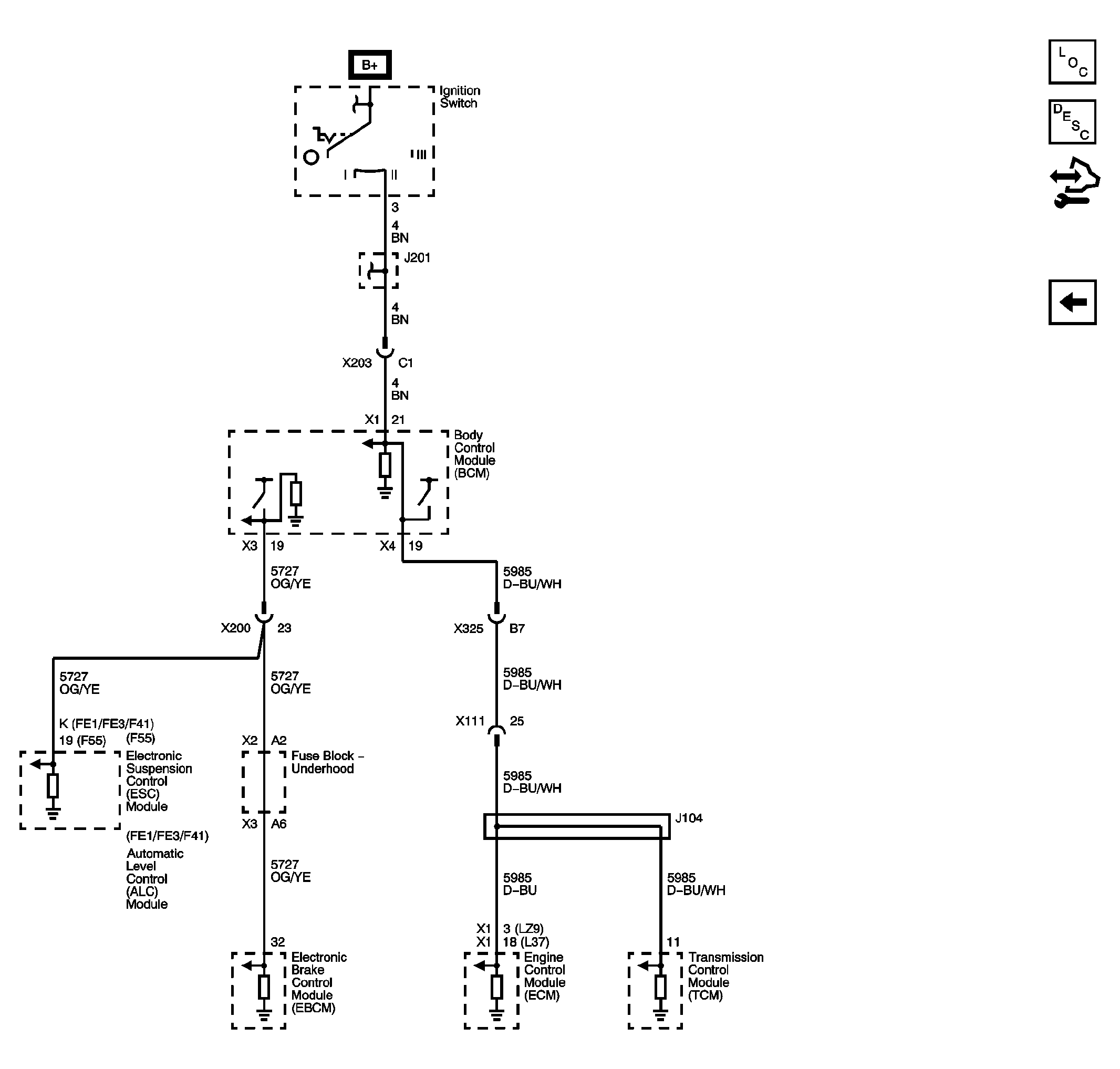

Fig 3: Serial Data Wake Up
GM2228026Courtesy of GENERAL MOTORS CORP.
