Remote Function Schematics

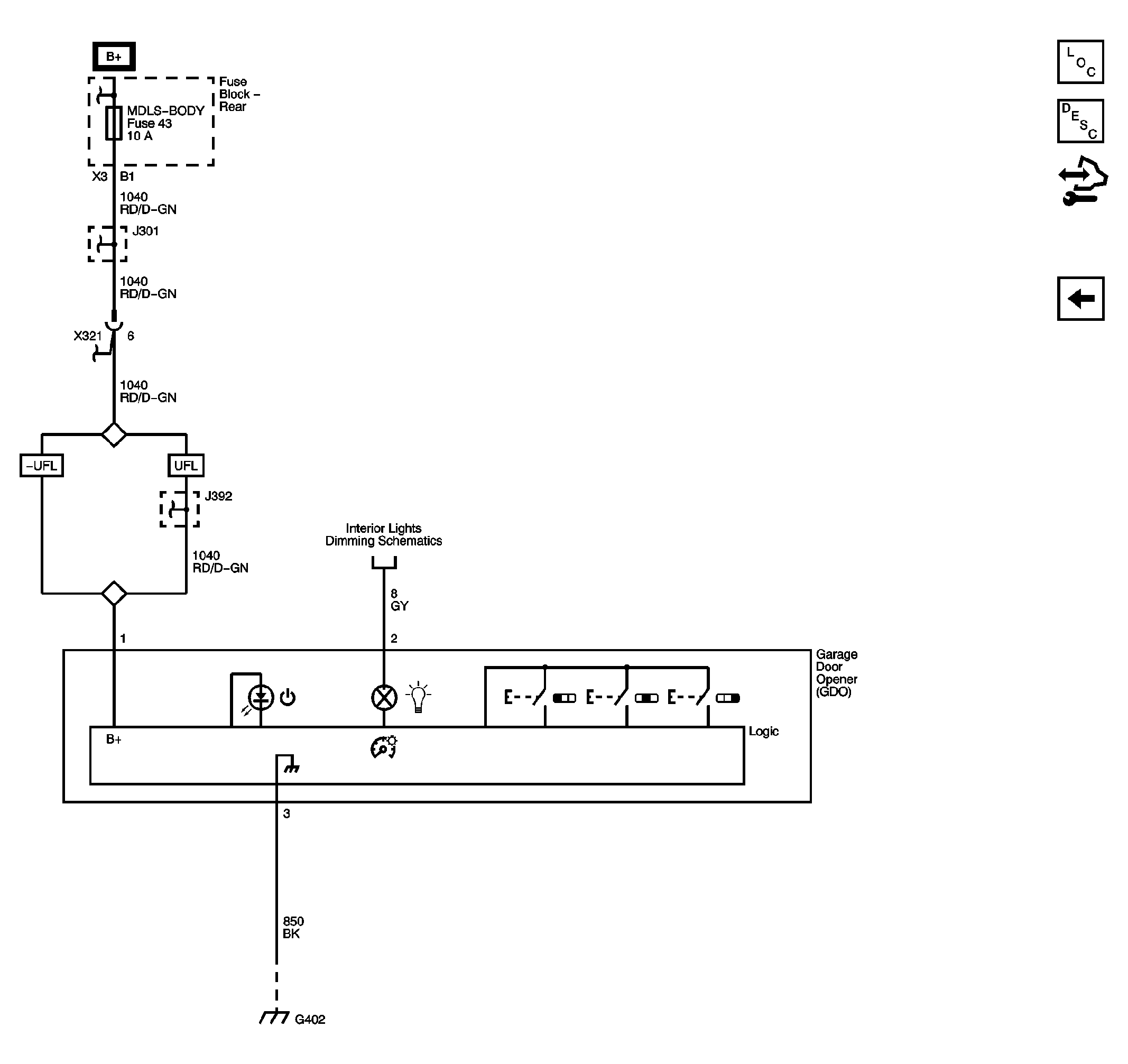

Fig 1: Garage Door Opener
GM2228261Courtesy of GENERAL MOTORS CORP.

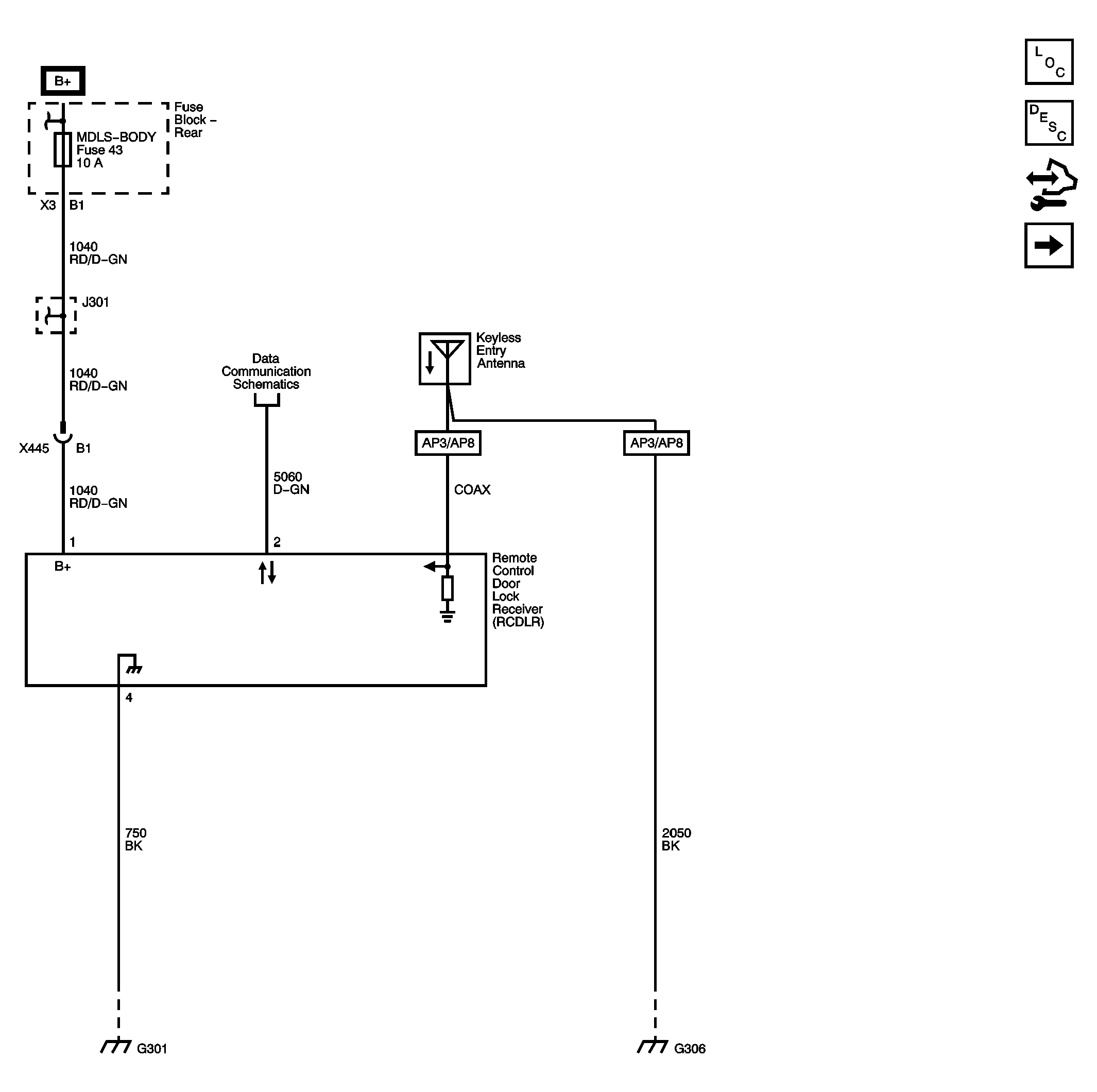

Fig 2: Remote Control Door Lock Receiver (RCDLR)
GM2228265Courtesy of GENERAL MOTORS CORP.

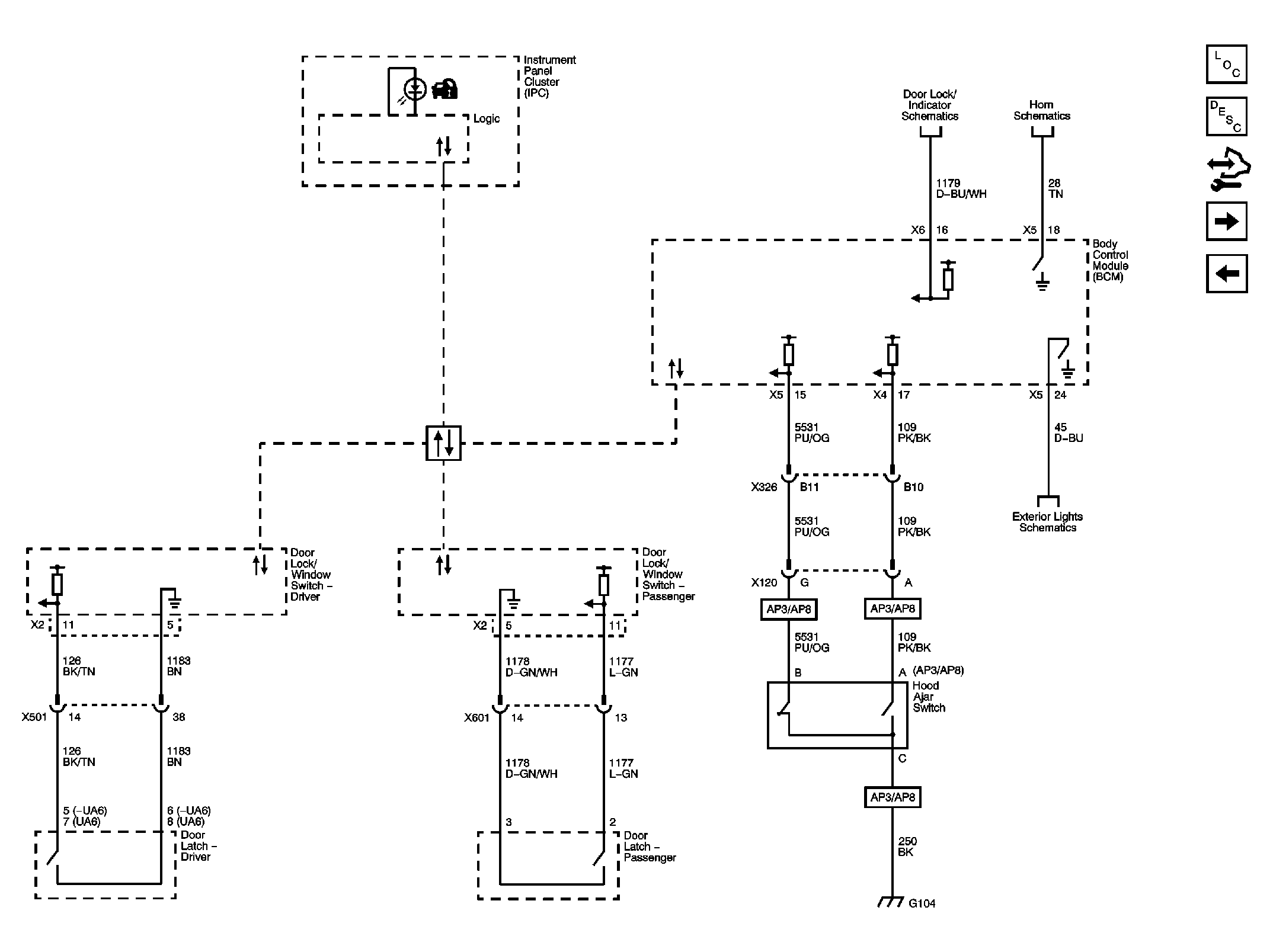

Fig 3: Door Latch Assemblies and Hood Ajar Switch
GM2228269Courtesy of GENERAL MOTORS CORP.
