Body Control System Schematics

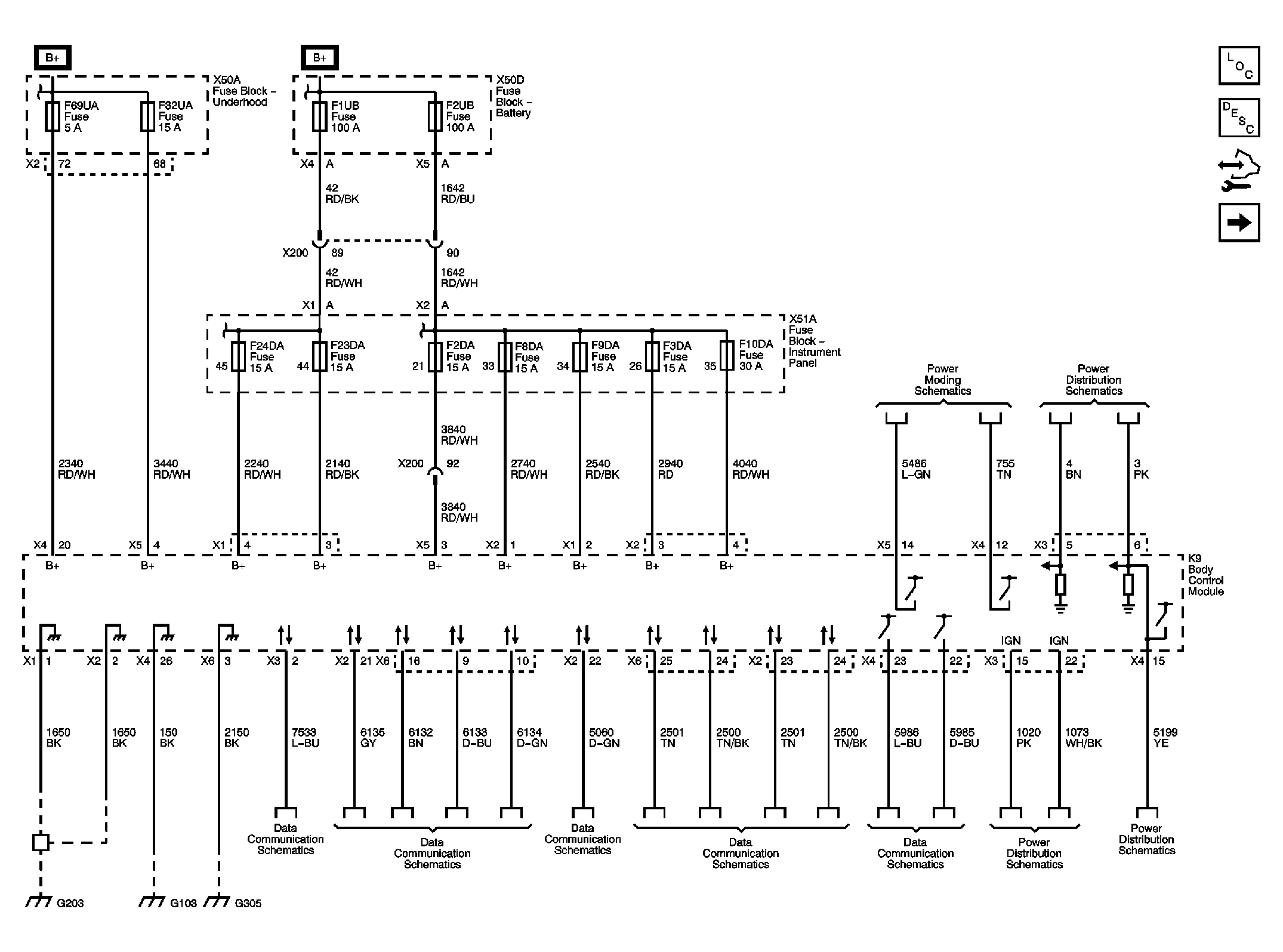

Fig 1: Power, Ground, and Data Communications

Courtesy of GENERAL MOTORS CORP.

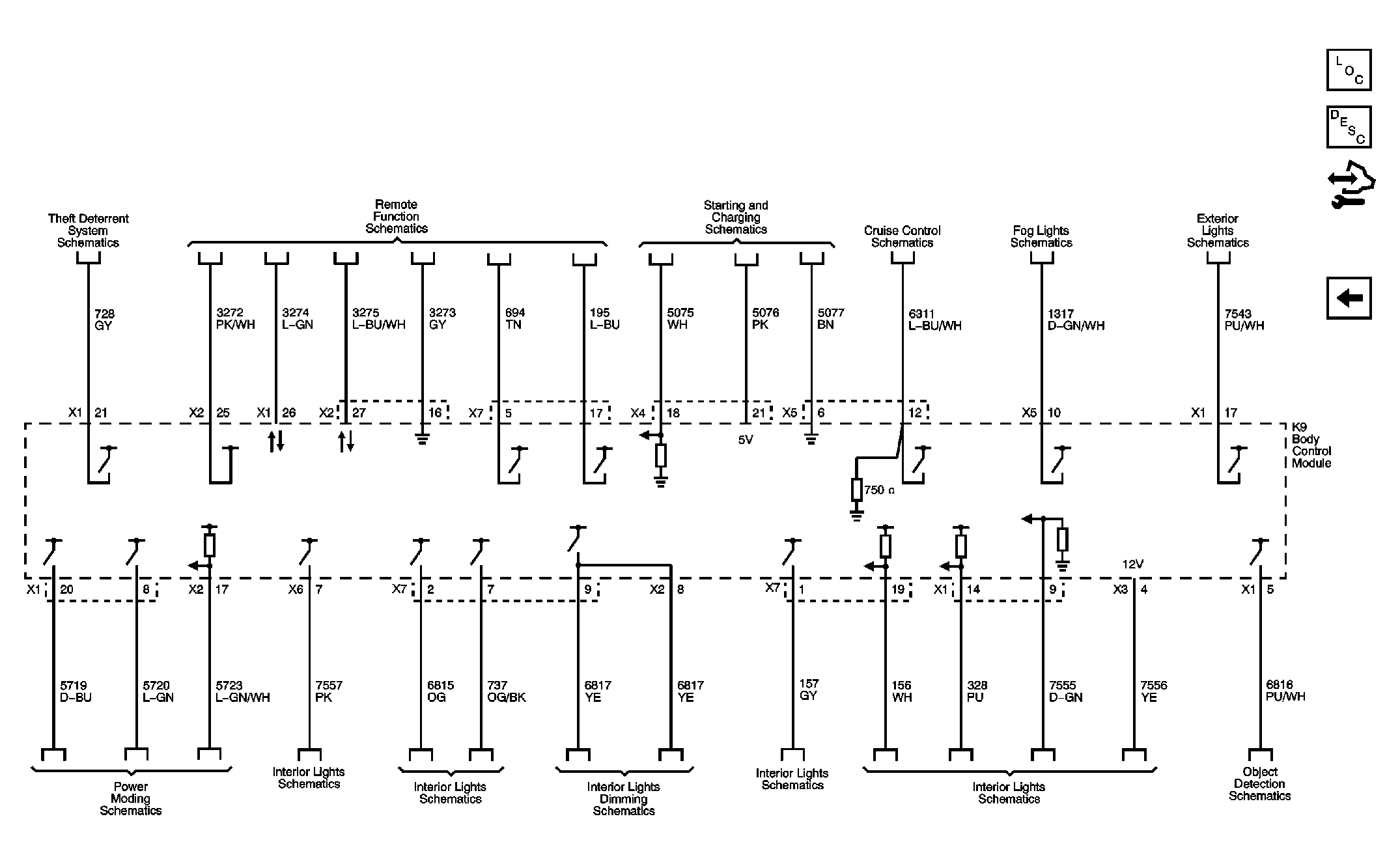

Fig 2: References (1 of 3)

Courtesy of GENERAL MOTORS CORP.

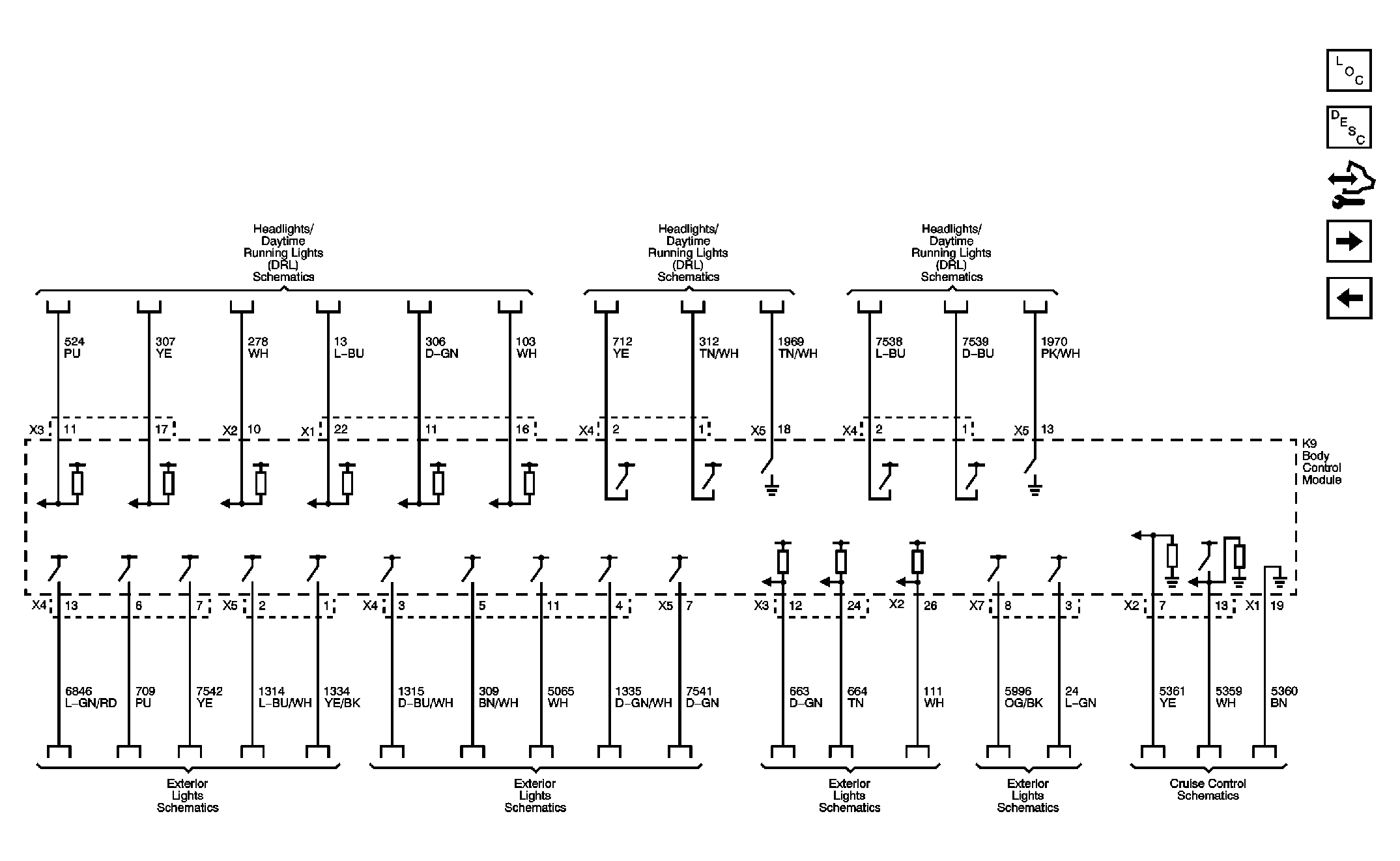

Fig 3: References (2 of 3)

Courtesy of GENERAL MOTORS CORP.

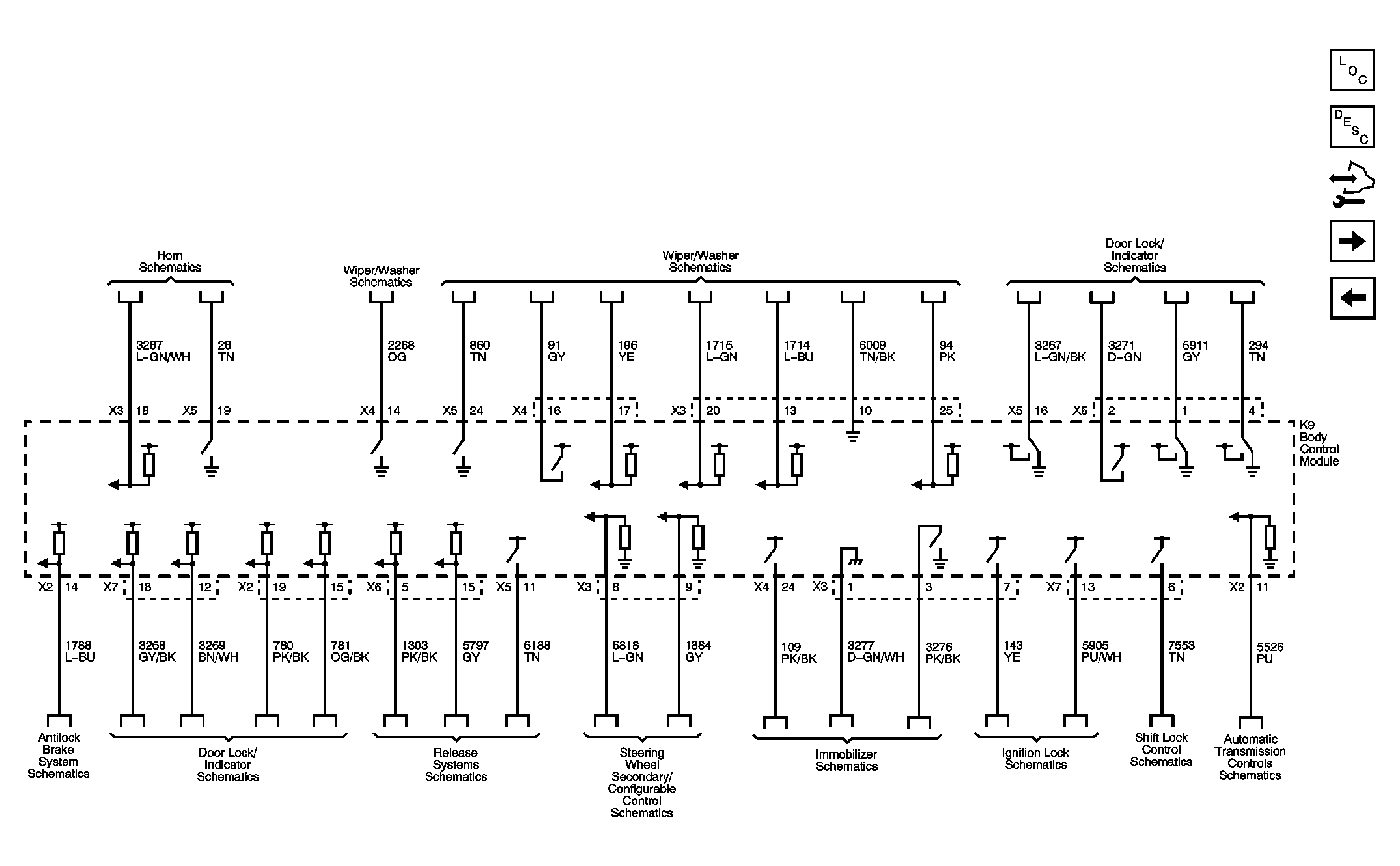

Fig 4: References (3 of 3)

Courtesy of GENERAL MOTORS CORP.
