Front of Vehicle/Engine Compartment Component Views

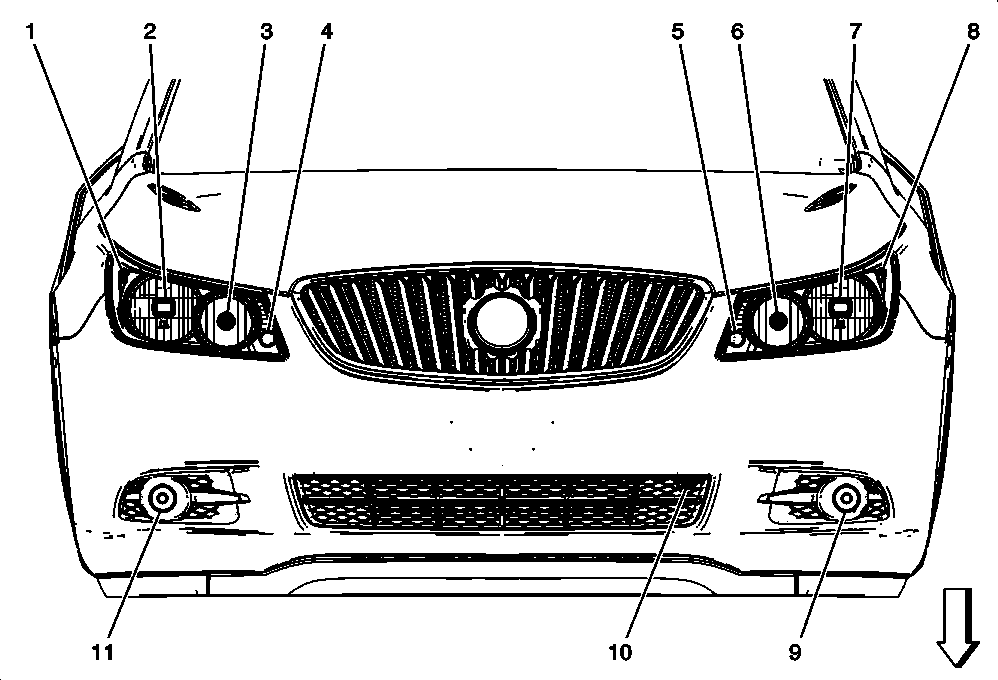

Fig 1: Front Of Vehicle Components (TT2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	E2RF Side Marker Lamp - Right Front
2	E4F Headlamp - Right High Beam or E4H Headlamp - Right Low Beam
3	E4D Daytime Running Lamp - Right
4	E4P Park/Turn Signal Lamp - Right
5	E4N Park/Turn Signal Lamp - Left
6	E4C Daytime Running Lamp - Left
7	E4E Headlamp - Left High Beam or E4G Headlamp - Left Low Beam
8	E2LF Side Marker Lamp - Left Front
9	E29LF Fog Lamp - Left Front (T96)
10	B9 Ambient Air Temperature Sensor
11	E29RF Fog Lamp - Right Front (T96)

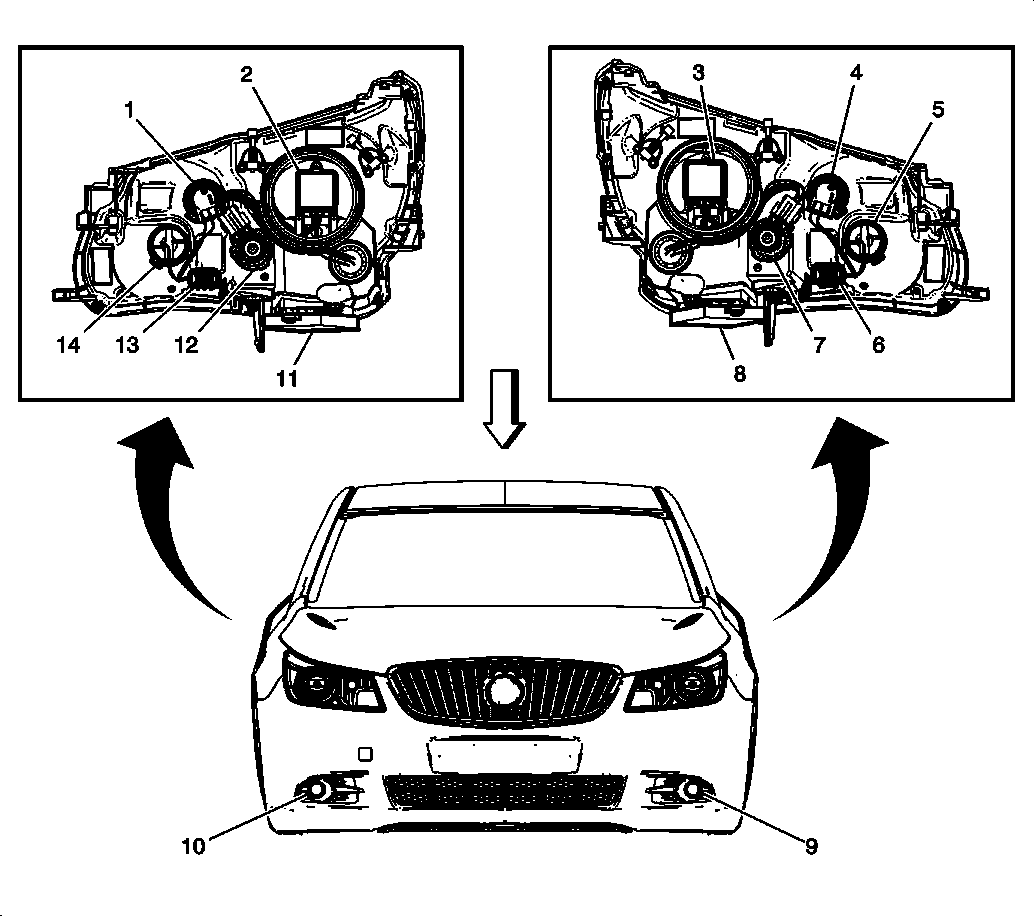

Fig 2: Headlamps (TT2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	E4D Daytime Running Lamp - Right
2	E4F Headlamp - Right High Beam or E4H Headlamp - Right Low Beam
3	E4E Headlamp - Left High Beam or E4G Headlamp - Left Low Beam
4	E4C Daytime Running Lamp - Left
5	E4N Park/Turn Signal Lamp - Left
6	X118
7	M29L Headlamp Leveling Actuator - Left
8	T7L Headlamp - Ballast Left
9	E29LF Fog Lamp - Left Front (T96)
10	E29RF Fog Lamp - Right Front (T96)
11	T7R Headlamp - Ballast Right
12	HM29R Headlamp Leveling Actuator - Right
13	X120
14	E4P Park/Turn Signal Lamp - Right

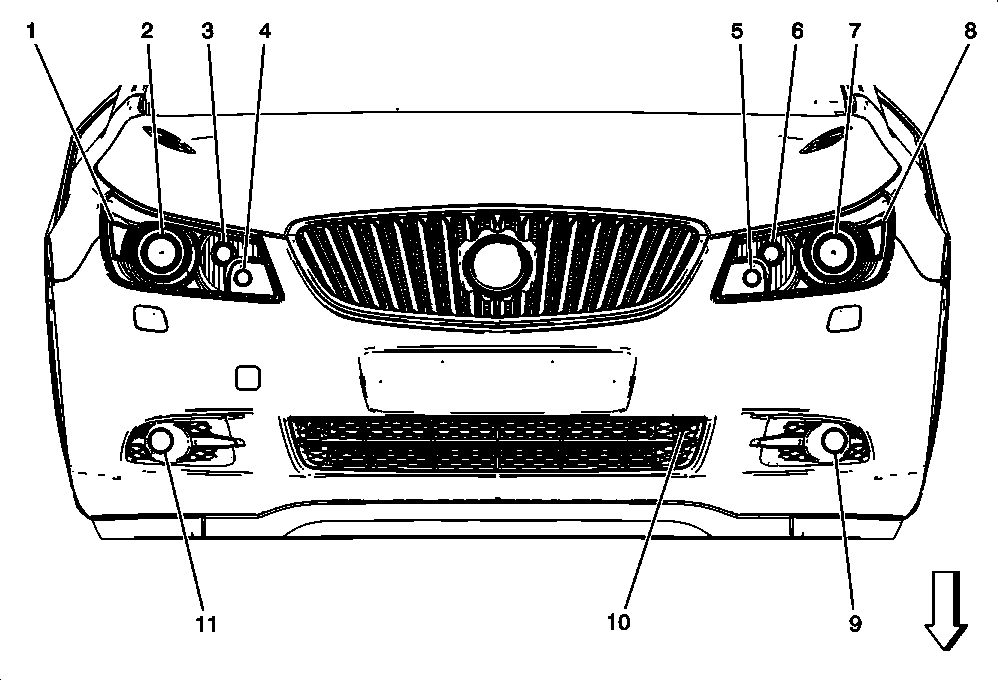

Fig 3: Front Of Vehicle Components (TT4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	E2RF Side Marker Lamp - Right Front
2	E4H Headlamp - Right Low Beam
3	E4F Headlamp - Right High Beam
4	E4P Park/Turn Signal Lamp - Right
5	E4N Park/Turn Signal Lamp - Left
6	E4E Headlamp - Left High Beam
7	E4G Headlamp - Left Low Beam
8	E2LF Side Marker Lamp - Left Front
9	E29LF Fog Lamp - Left Front (T96)
10	B9 Ambient Air Temperature Sensor
11	E29RF Fog Lamp - Right Front (T96)

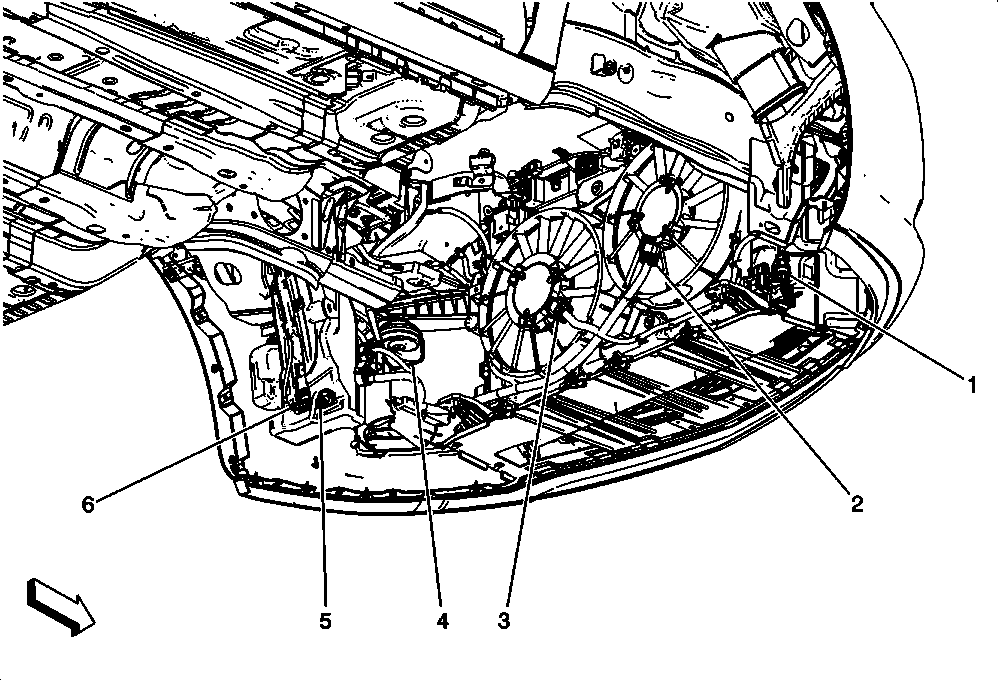

Fig 4: Front Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	B1 A/C Refrigerant Pressure Sensor
2	G10R Cooling Fan Motor - Right
3	G10L Cooling Fan Motor - Left
4	P13 Horn Assembly
5	B118 Windshield Washer Fluid Level Sensor
6	G24 Windshield Washer Pump

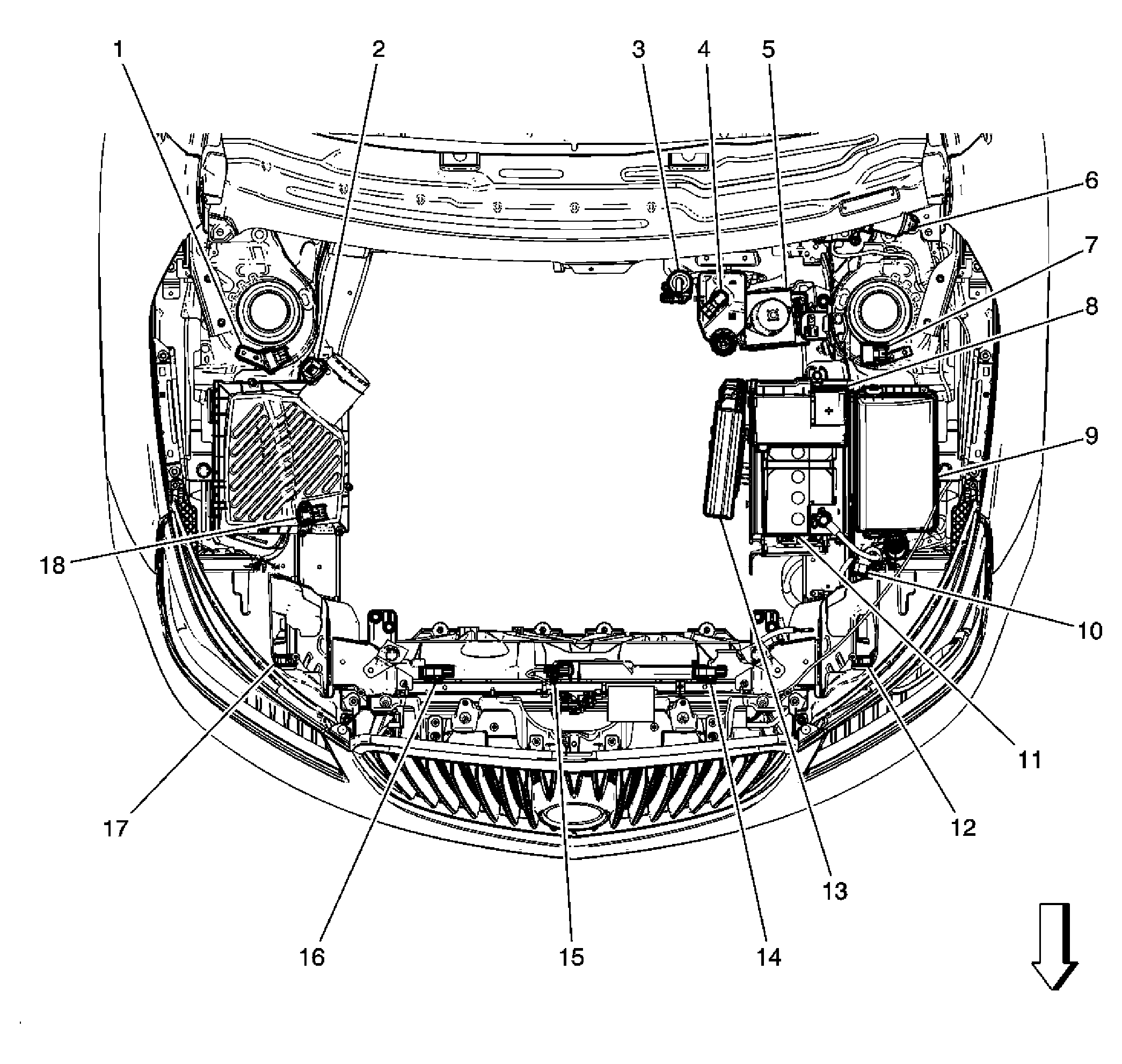

Fig 5: Top Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	B162RF Vertical Body Acceleration Sensor - Right Front (F45)
2	B75B Mass Air Flow Sensor/Intake Air Temperature Sensor
3	B19C Brake Booster Vacuum Switch
4	B20 Brake Fluid Level Switch
5	K17 Electronic Brake Control Module
6	M75 Windshield Wiper Motor
7	B162LF Vertical Body Acceleration Sensor - Left Front (F45)
8	X50D Fuse Block - Battery
9	X50A Fuse Block - Underhood
10	B18 Battery Current Sensor
11	C1 Battery
12	M29L Headlamp Leveling Actuator - Left (TT2)
13	K20 Engine Control Module
14	B59L Front Impact Sensor - Left
15	B55 Hood Ajar Switch
16	B59R Front Impact Sensor - Right
17	M29R Headlamp Leveling Actuator - Right (TT2)
18	B17 Barometric Pressure Sensor (LF1)
