Antilock Brake System Schematics

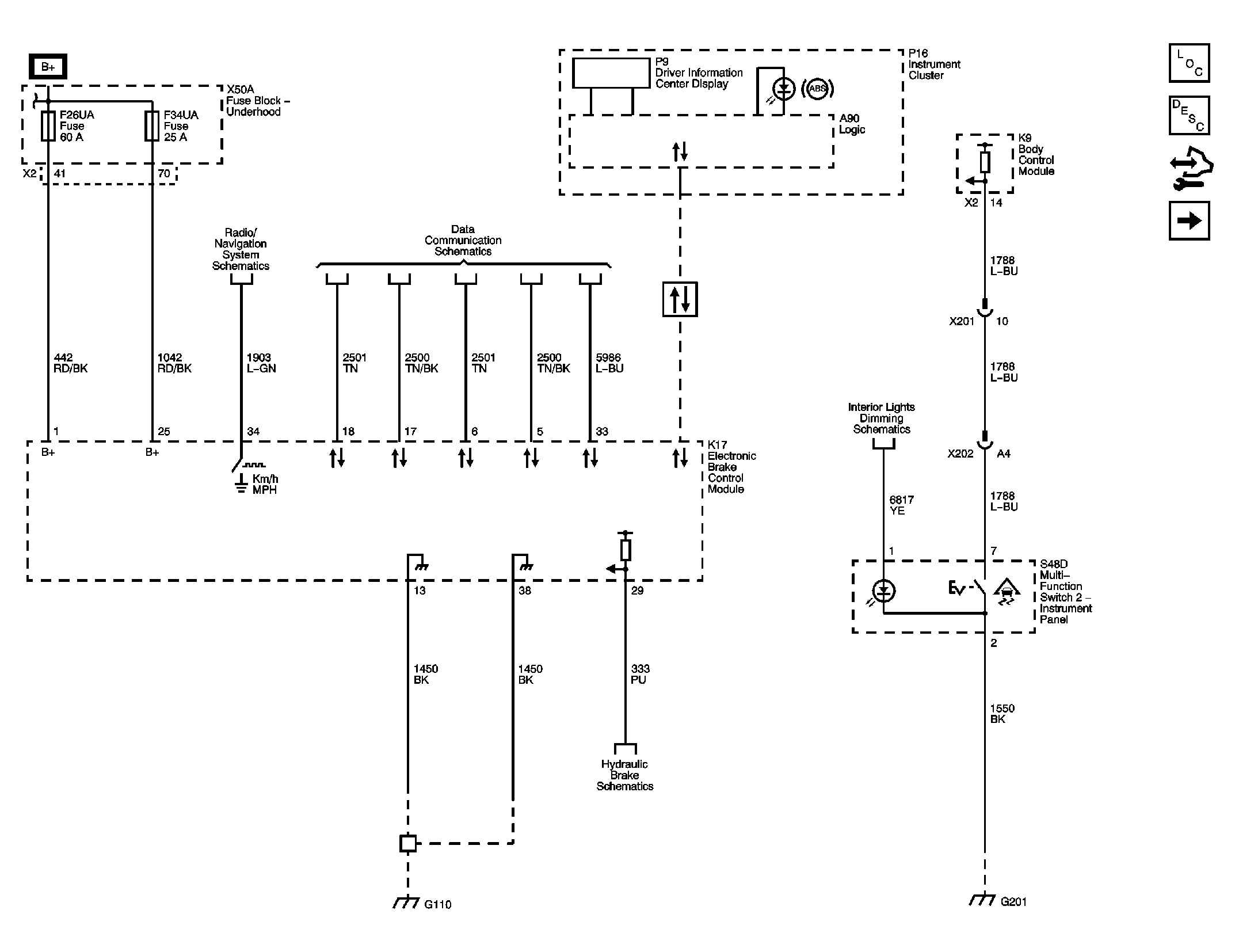

Fig 1: Module Power, Ground, and Subsystem References
GM2204585Courtesy of GENERAL MOTORS CORP.

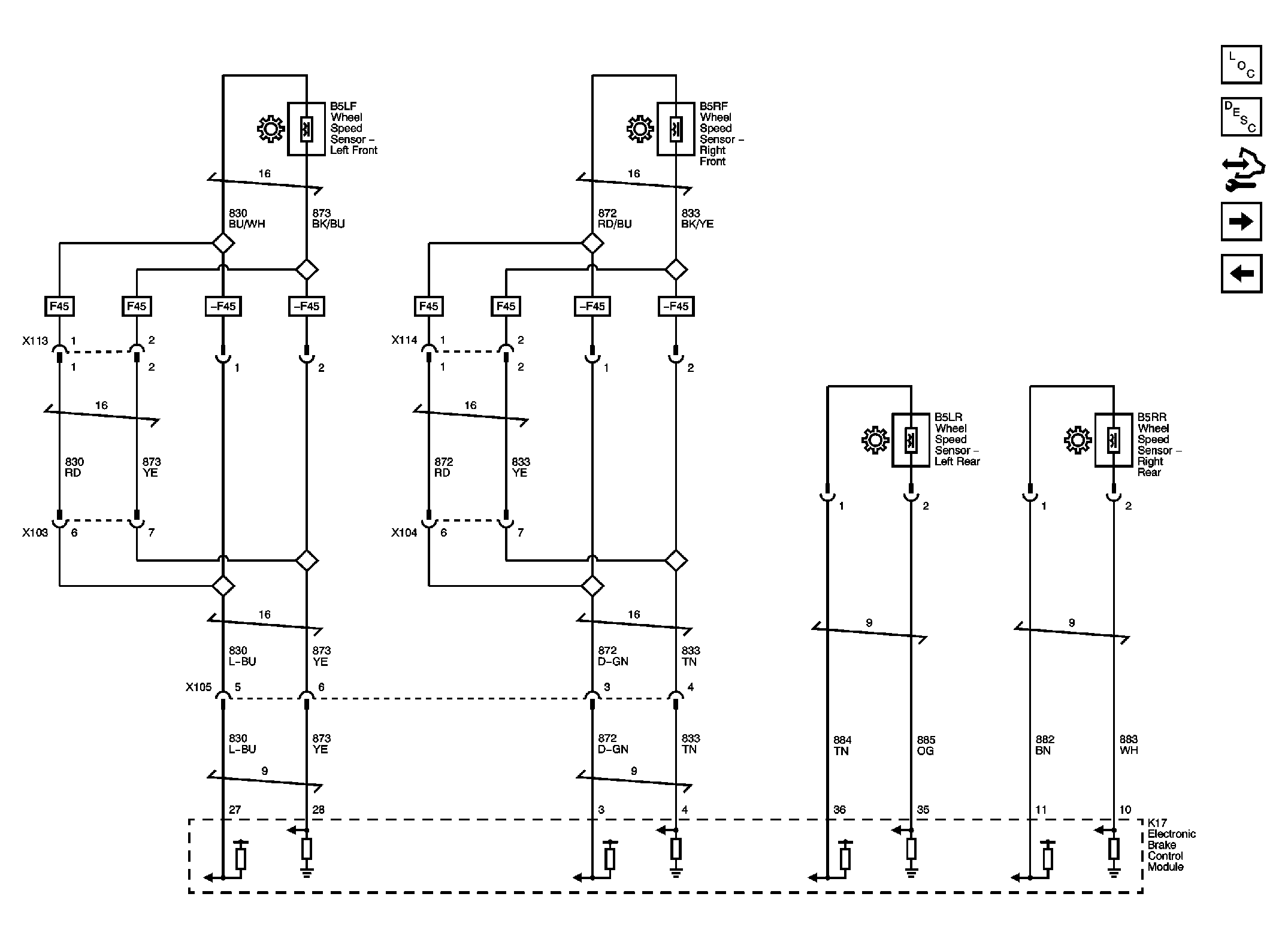

Fig 2: Wheel Speed Sensors
GM2204587Courtesy of GENERAL MOTORS CORP.

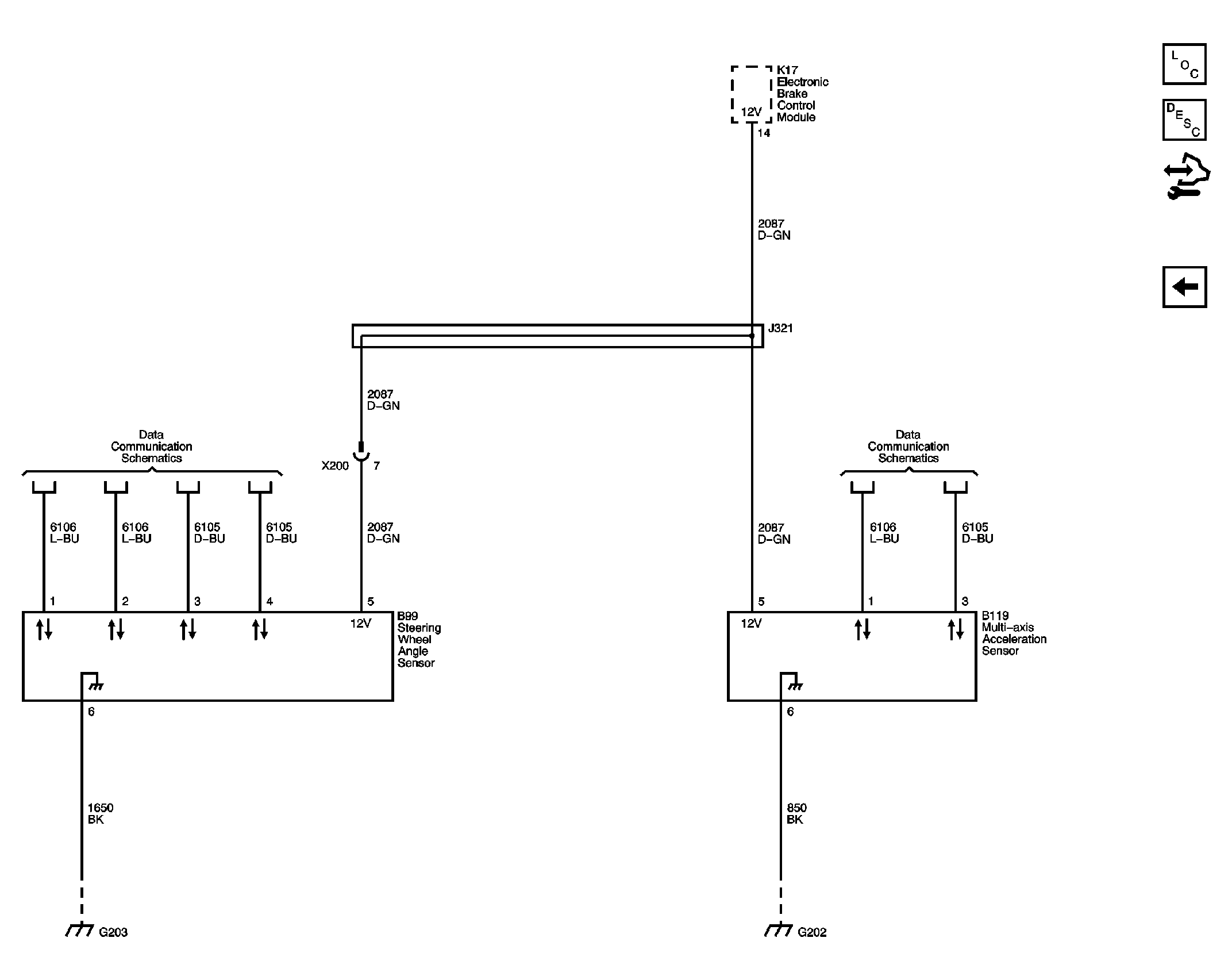

Fig 3: Yaw and Lateral Acceleration and Steering Angle
GM2204590Courtesy of GENERAL MOTORS CORP.
