Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front, center, and rear vent windows. Refer to Sunroof Window Replacement (Front)  or Sunroof Window Replacement (Rear Vent)  or Sunroof Window Replacement (Center)  or Sunroof Window Replacement (Rear Stationary) .

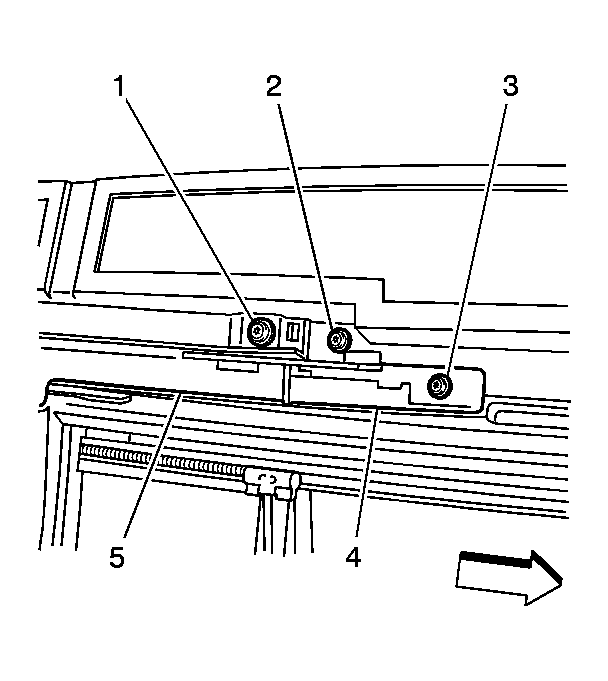

    2. Fig 1: View Of Sunroof Rear Track Extension
    GM903766Courtesy of GENERAL MOTORS CORP.
  2. Remove the front window rear track extension (4) screws (2, 3).
    3. Fig 2: View Of Sunroof Front Window Track Assembly
    GM903356Courtesy of GENERAL MOTORS CORP.
  3. Remove the front window rear track screws (1) on either the right of left side track.
  4. Remove the front window rear track from the vehicle.
  5. Remove the front track extension from the track.
  6. Remove the sunroof guide (2) from the track.
