Engine Controls Schematics

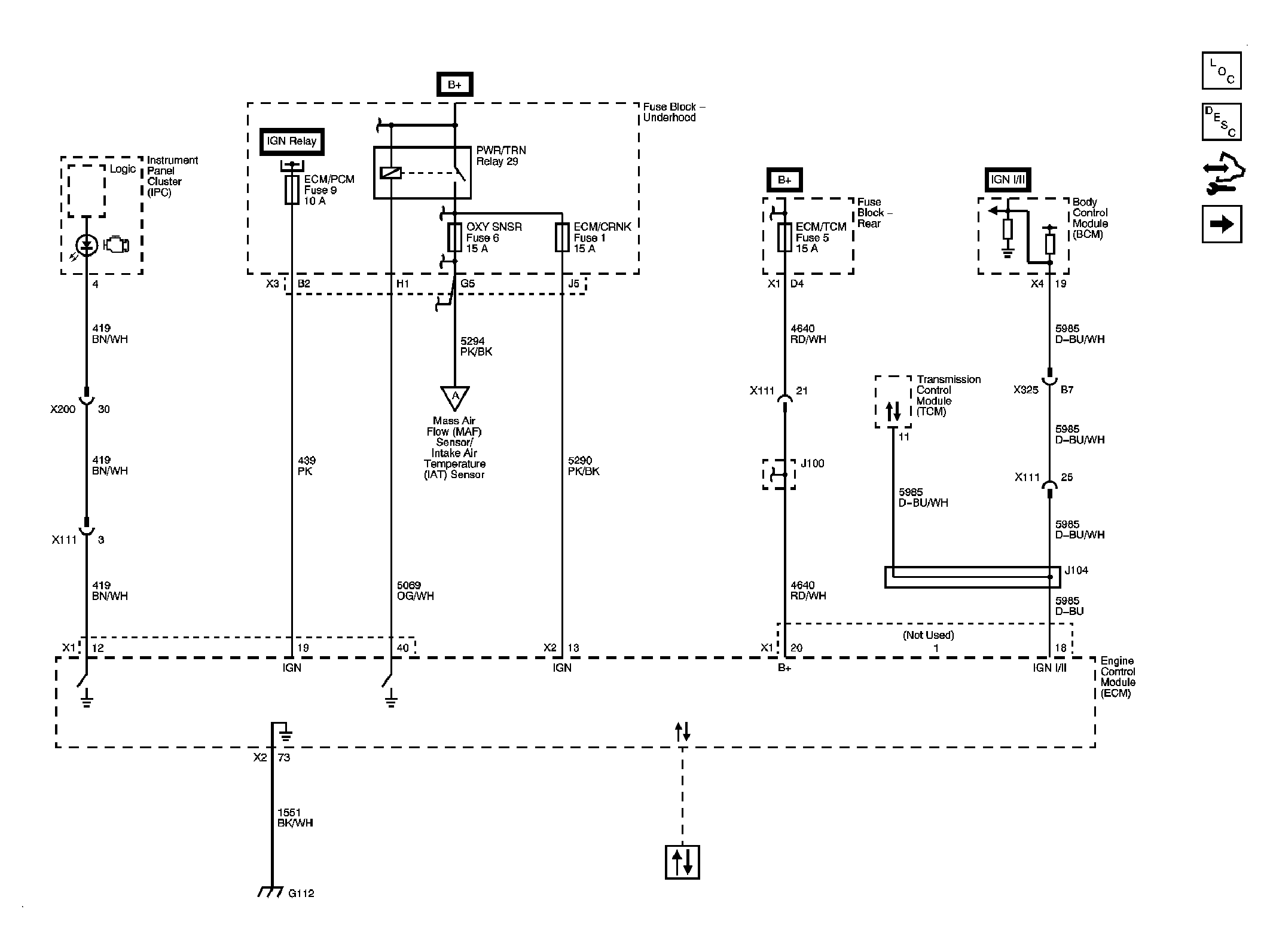

Fig 1: Power, Ground, MIL and DLC

Courtesy of GENERAL MOTORS CORP.

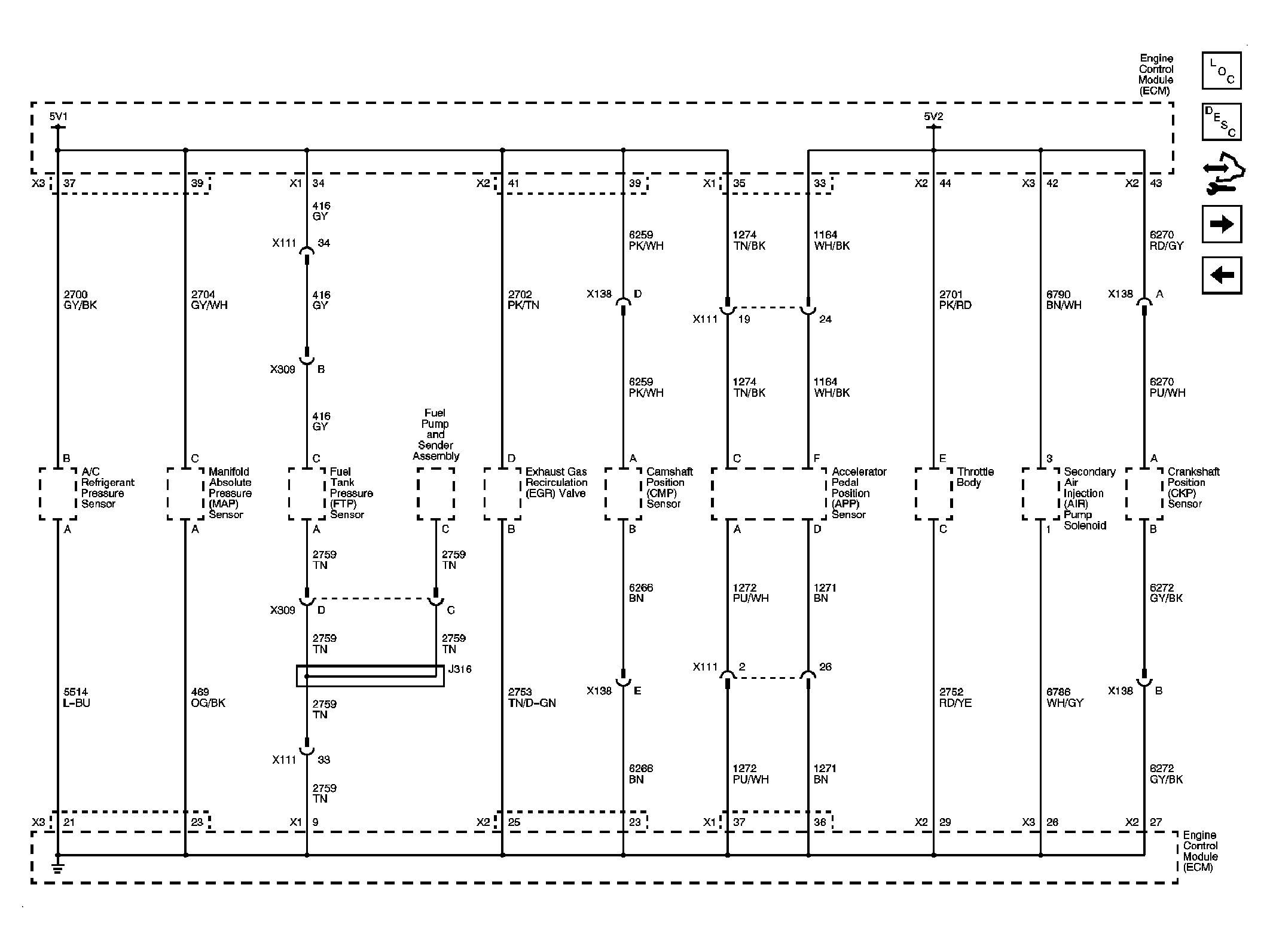

Fig 2: Engine Data Sensors - 5V Reference Bussing

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - Pressure, Temp and MAF/IAT

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - HO2S

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors - APP and Throttle Body Assembly

Courtesy of GENERAL MOTORS CORP.

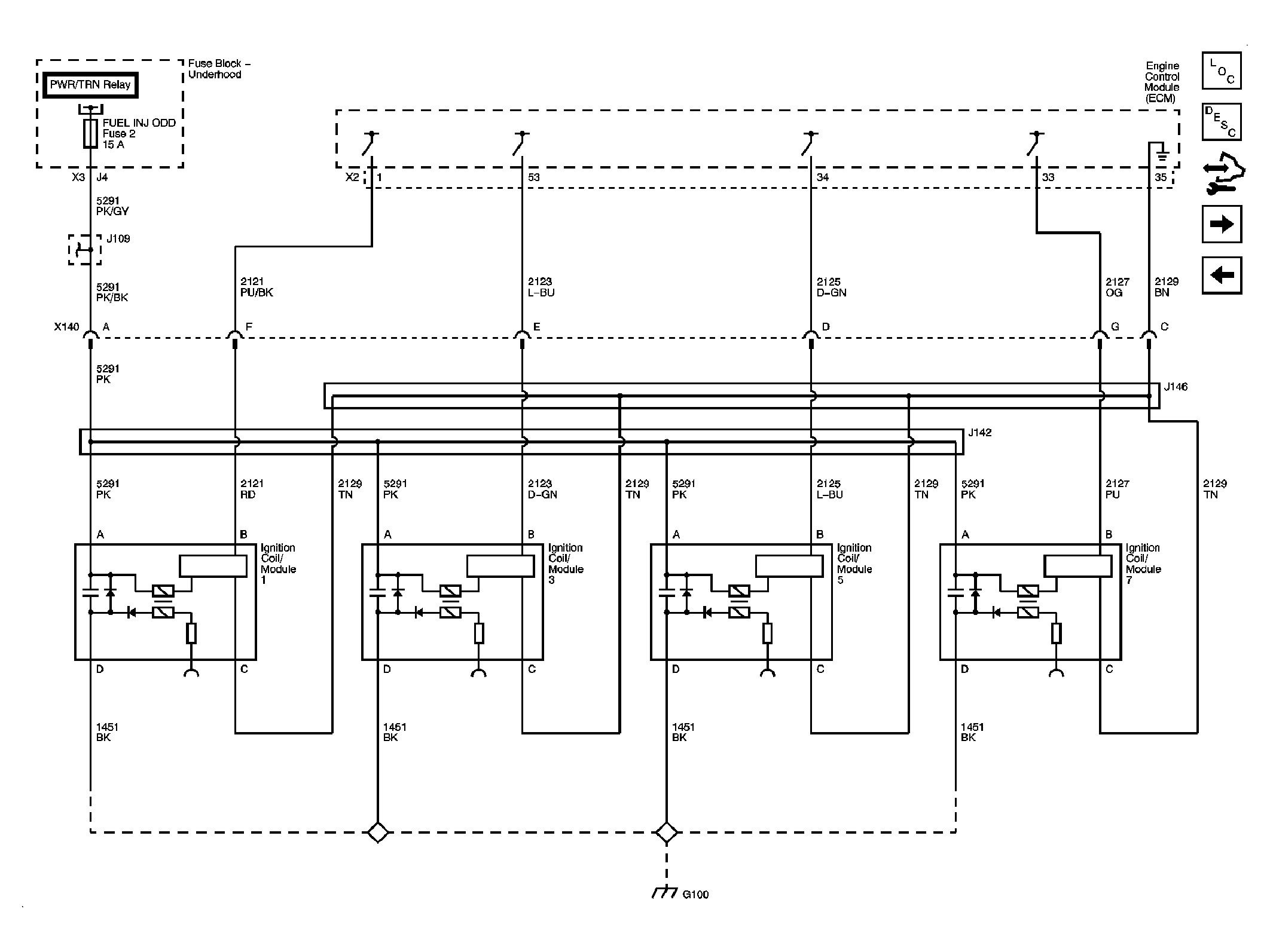

Fig 6: Ignition Controls 1 of 2

Courtesy of GENERAL MOTORS CORP.

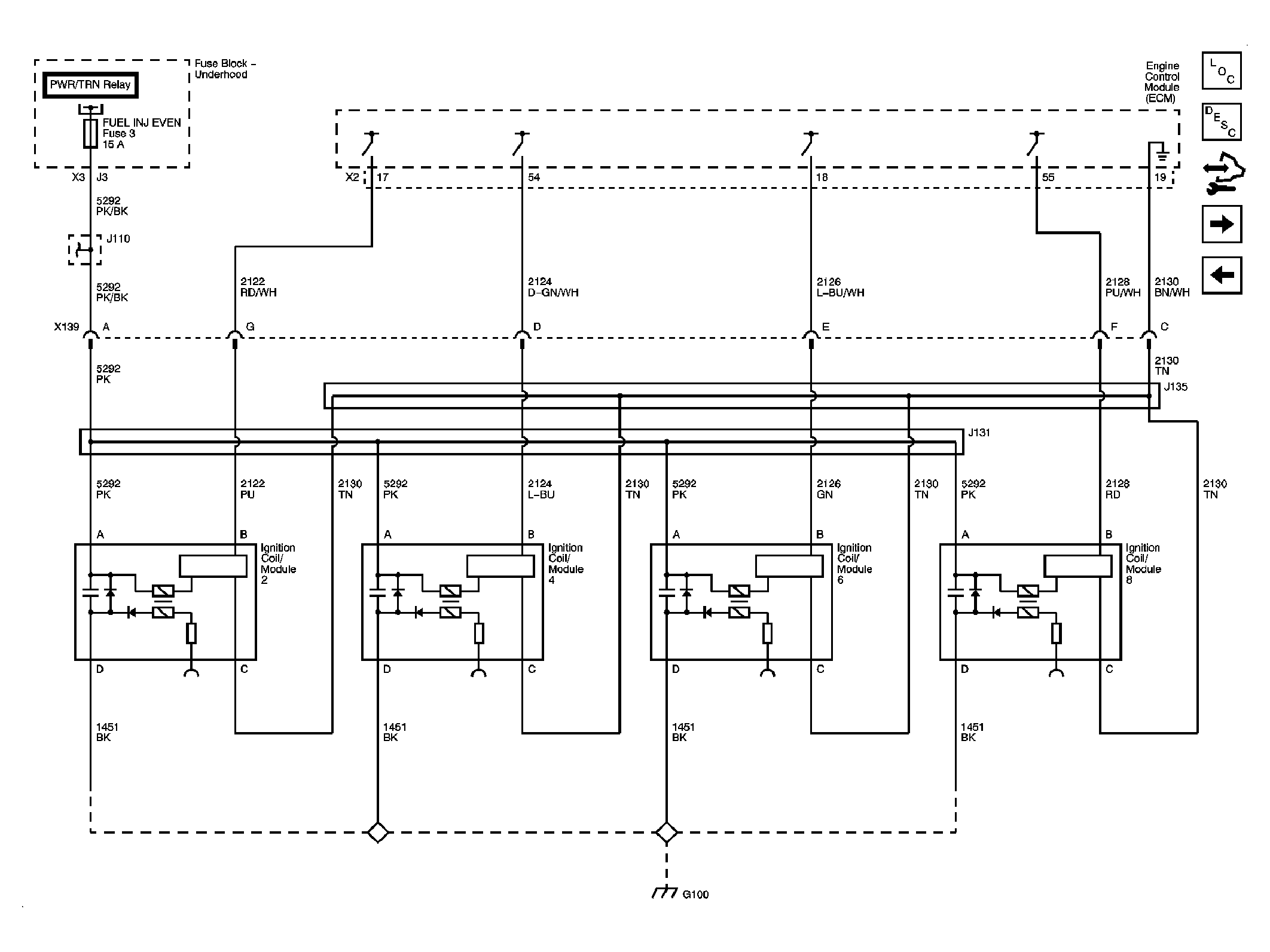

Fig 7: Ignition Controls 2 of 2

Courtesy of GENERAL MOTORS CORP.

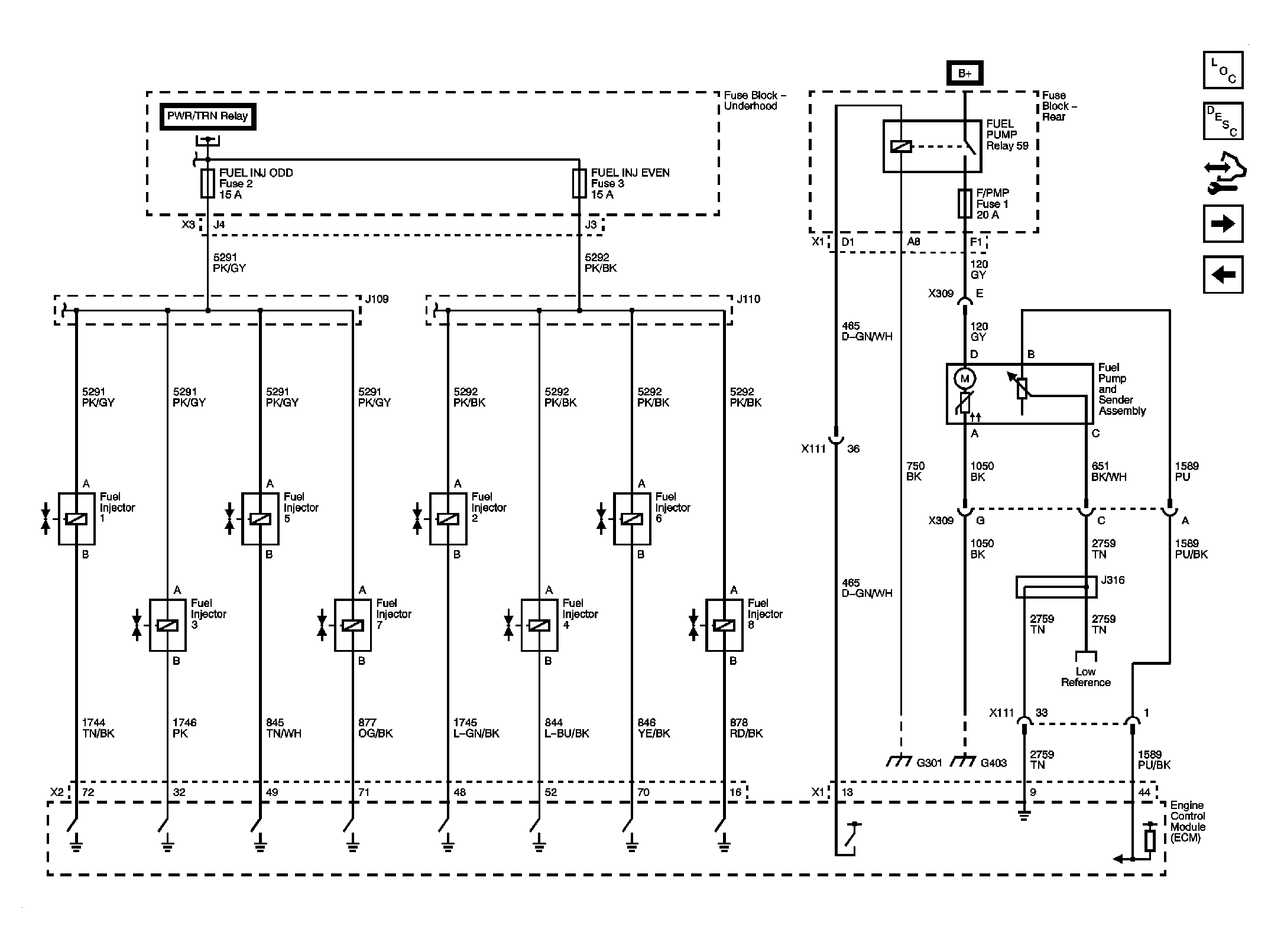

Fig 8: Fuel Controls

Courtesy of GENERAL MOTORS CORP.

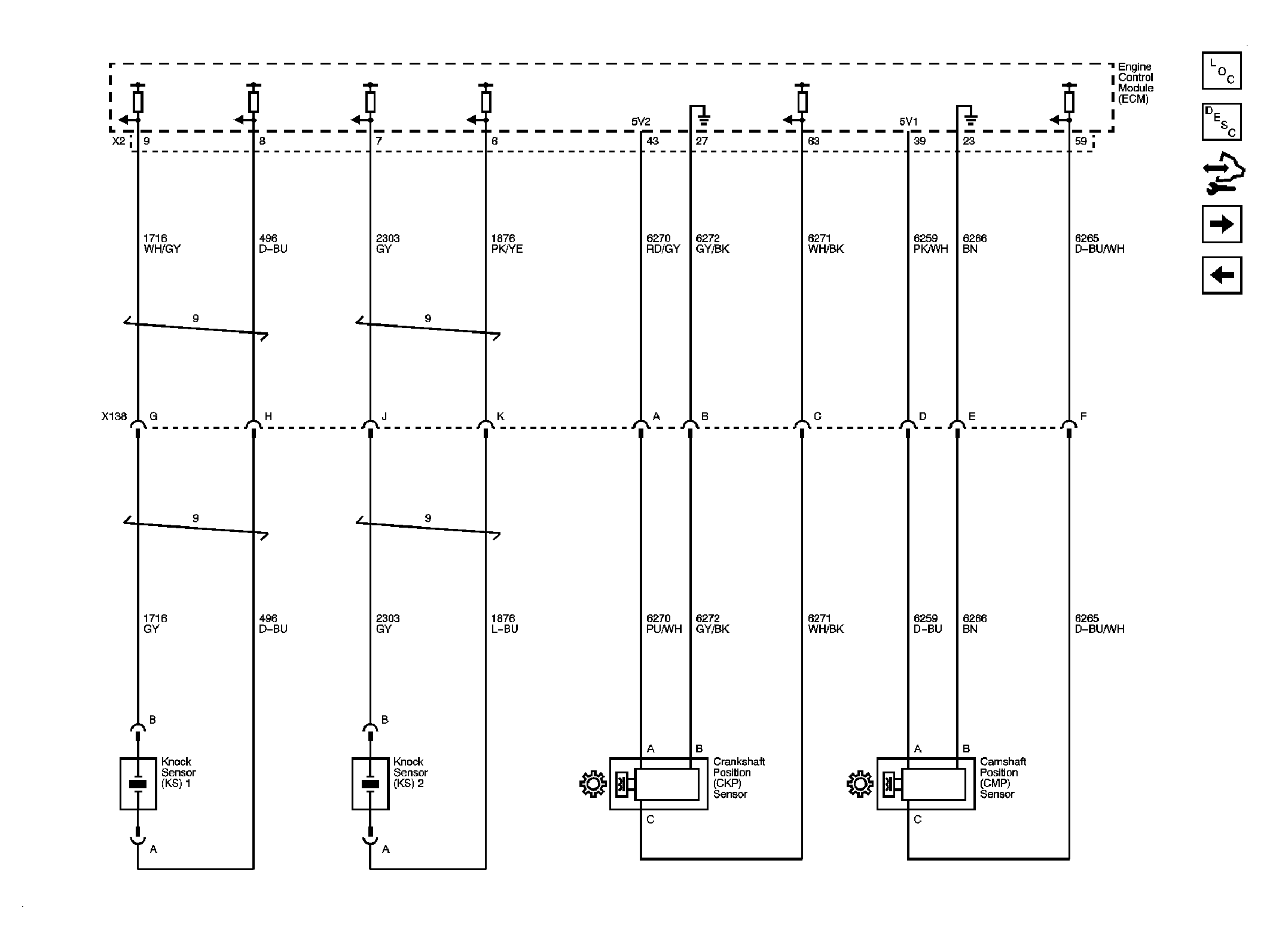

Fig 9: CKP, CMP, Knock Sensors

Courtesy of GENERAL MOTORS CORP.

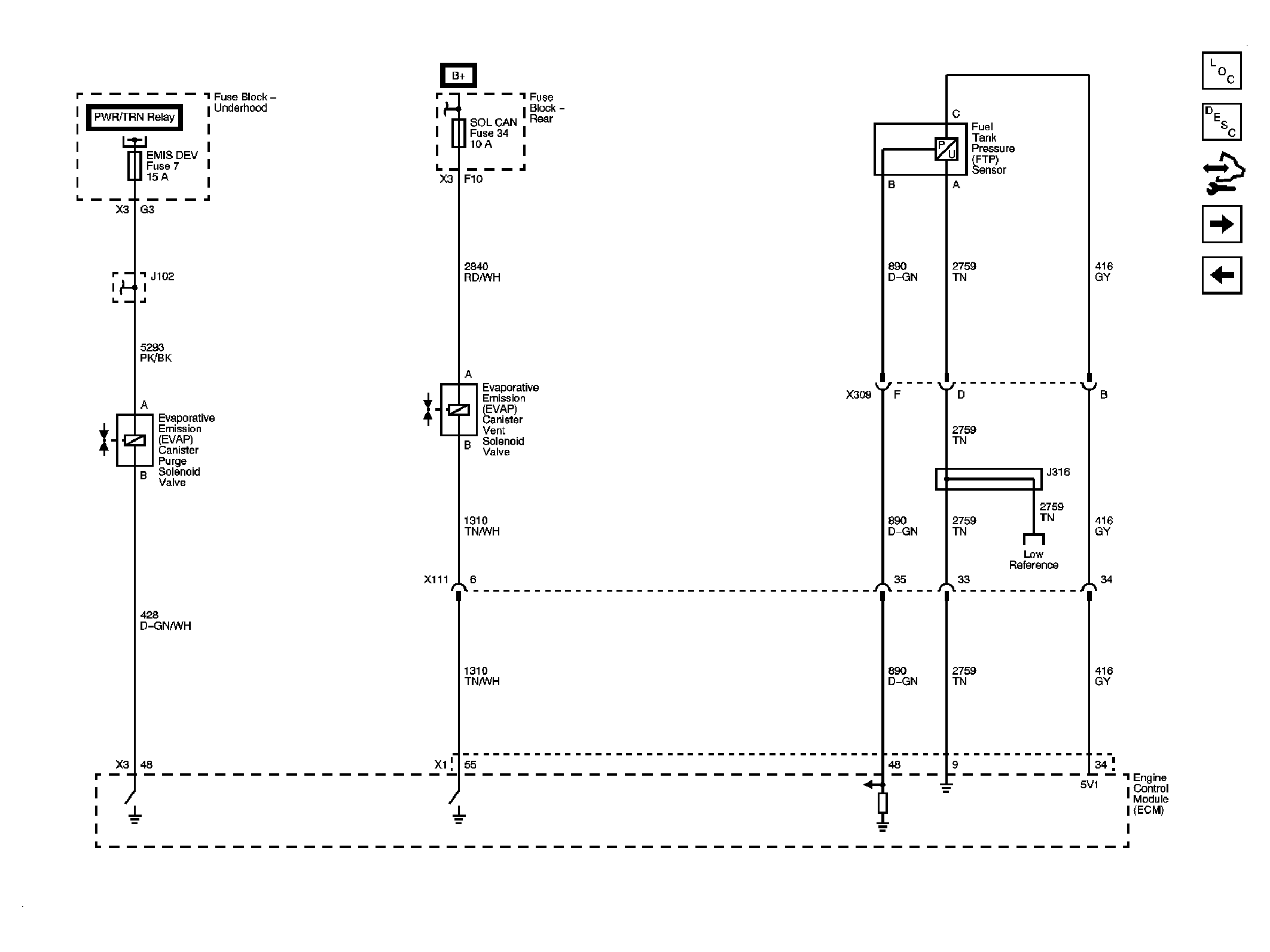

Fig 10: EVAP Controls, FTP Sensor

Courtesy of GENERAL MOTORS CORP.

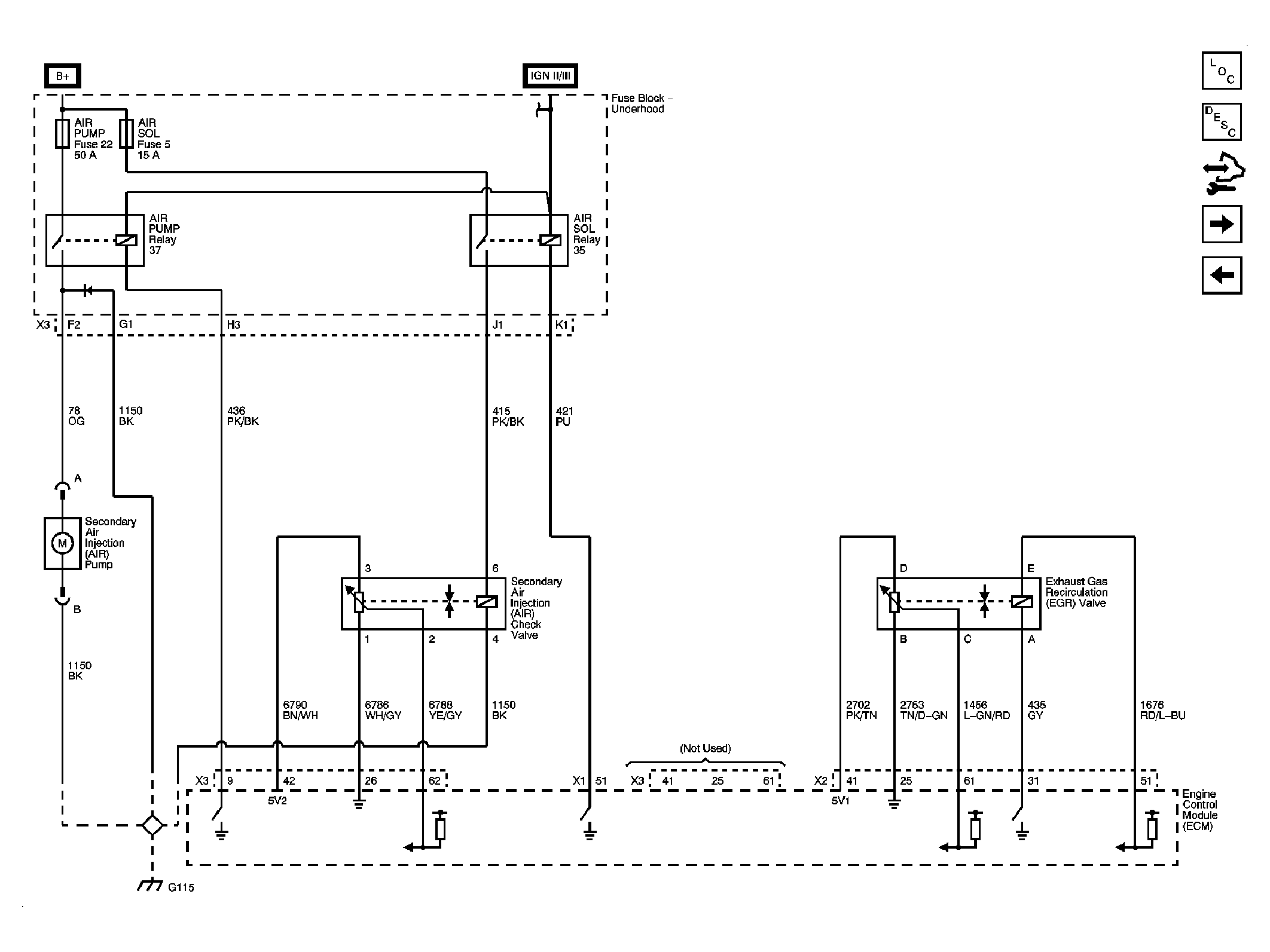

Fig 11: EGR, Secondary Air Injection (AIR)

Courtesy of GENERAL MOTORS CORP.

Fig 12: Controlled and Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
