Power Mirror Replacement

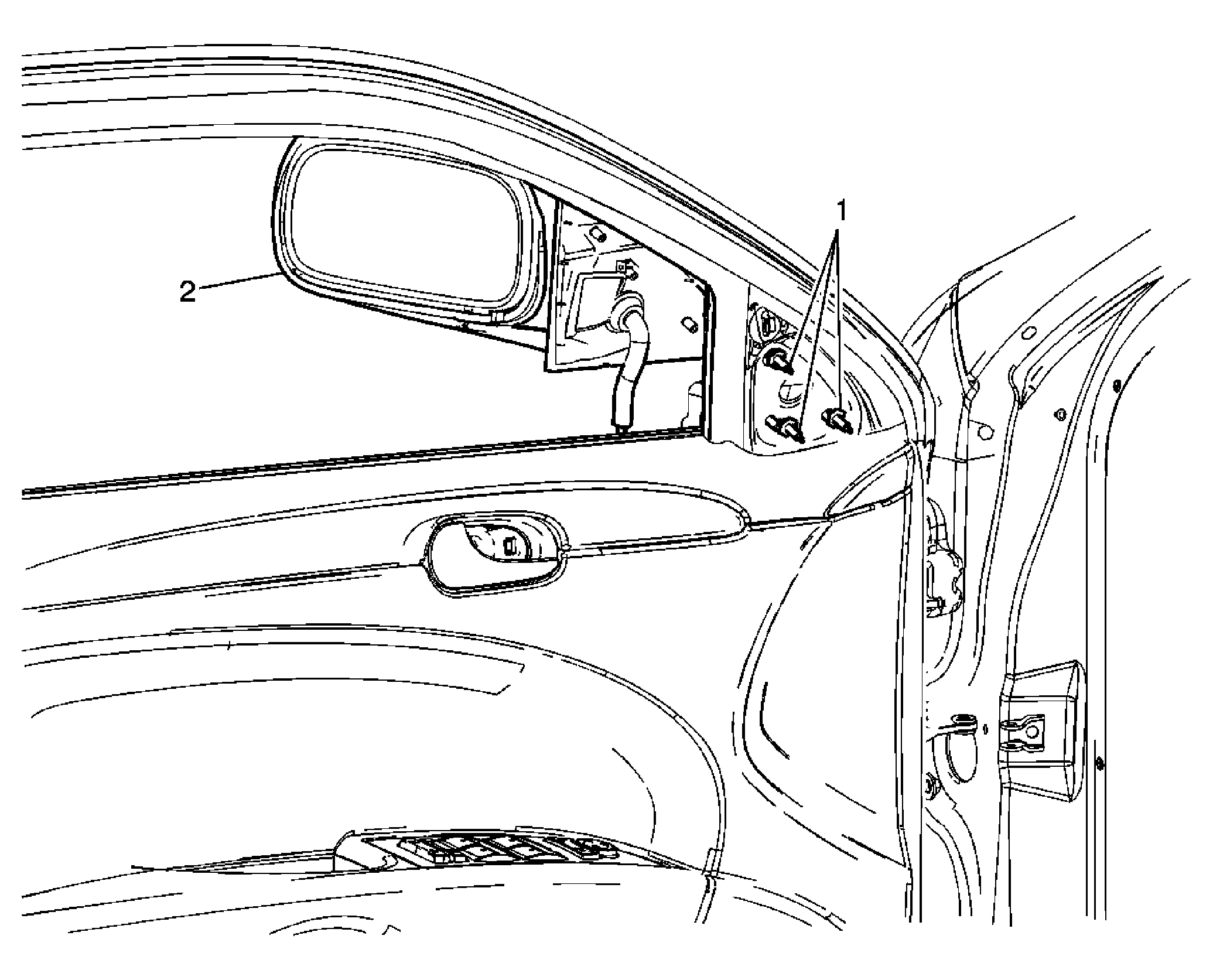

Fig 1: View Of Power Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Mirror Nuts (Qty: 3) CAUTION: Refer to Fastener Caution . Tip: Remove mirror access cover. Tighten: 2 N.m (18 lb in)
2	Outside Mirror
