Object Detection Schematics

Fig 1: Rear Park Assist (UD7)
GM2081661Courtesy of GENERAL MOTORS CORP.

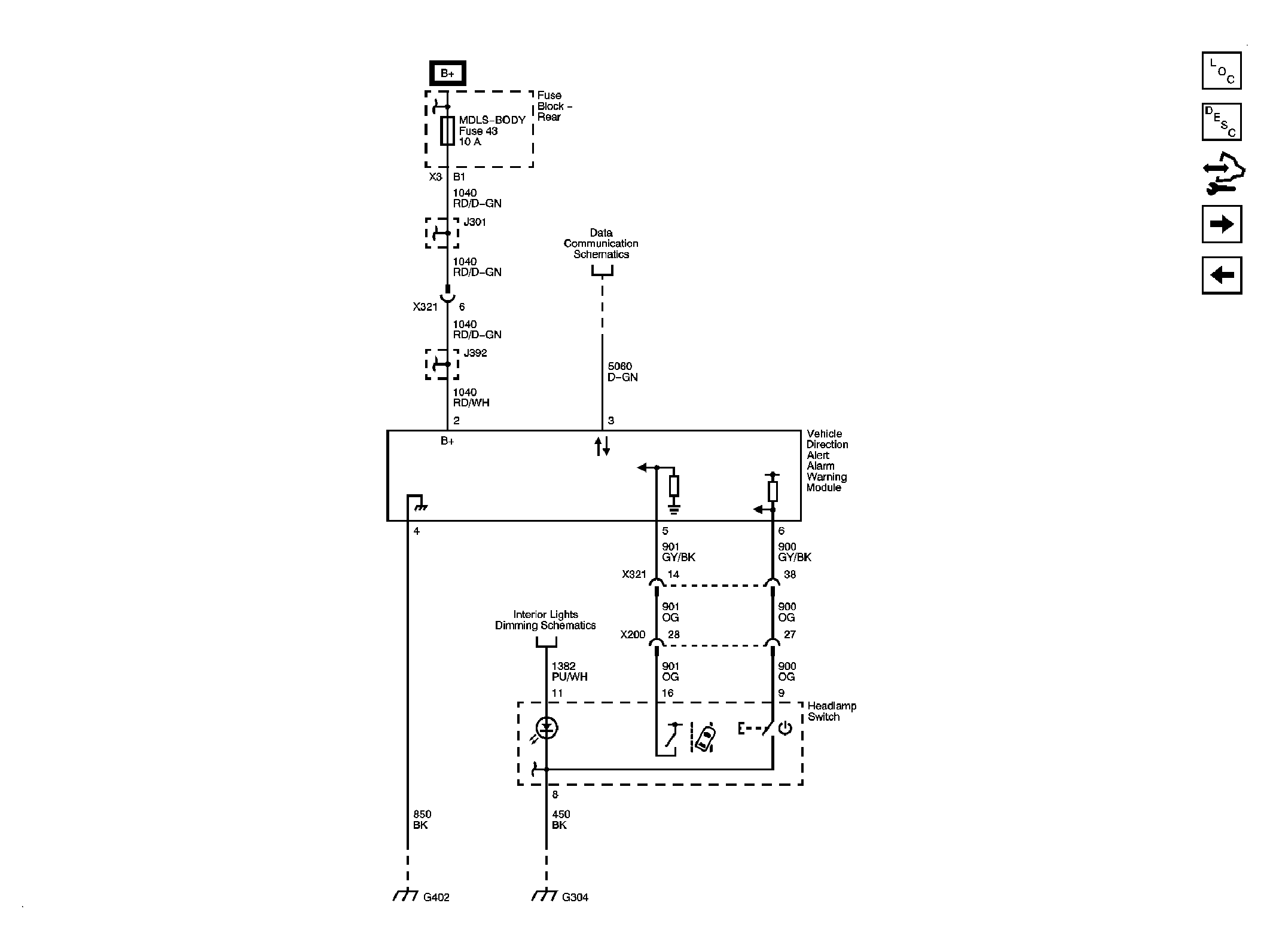

Fig 2: Lane Departure Warning (UFL)
GM2081712Courtesy of GENERAL MOTORS CORP.

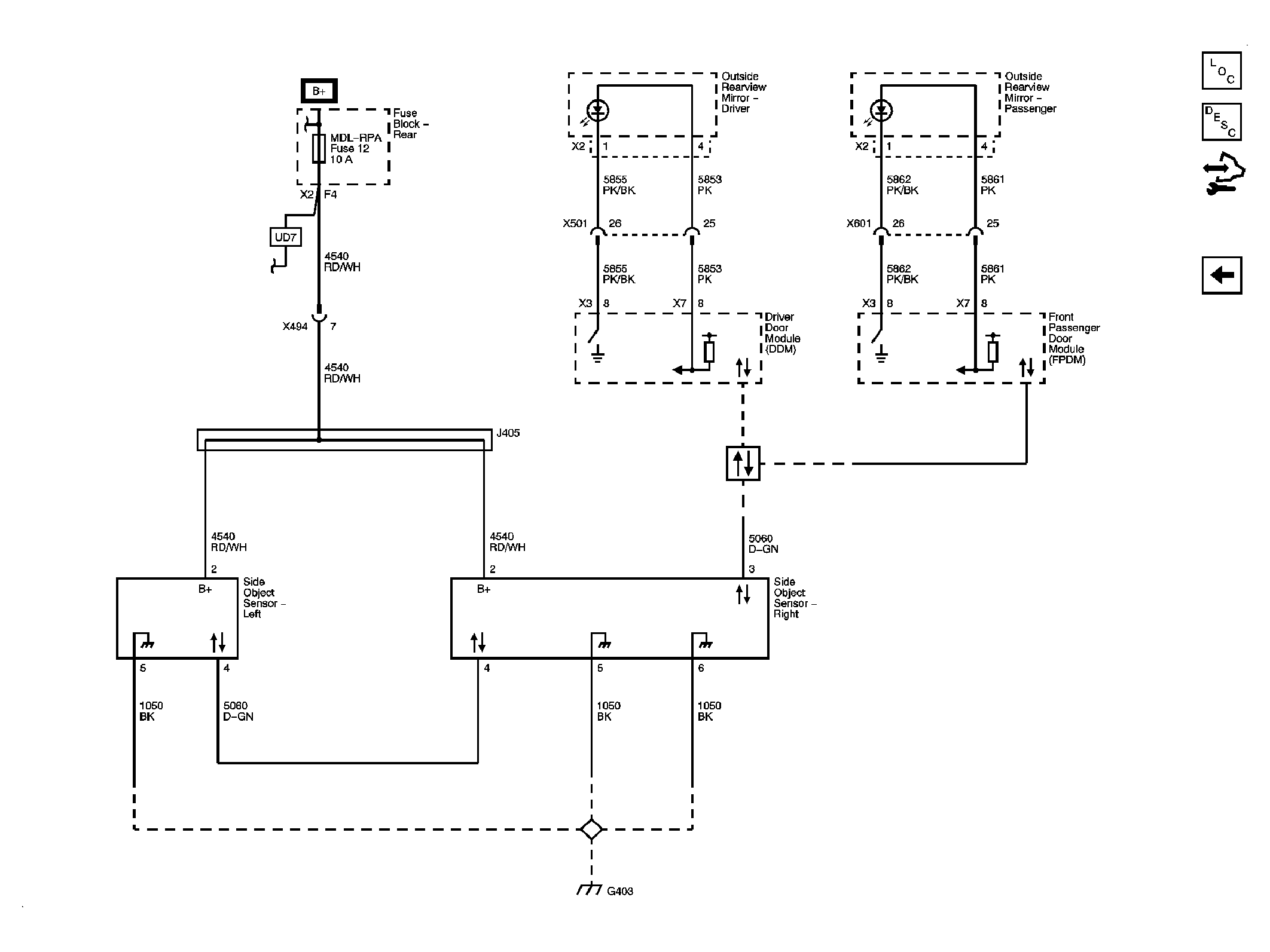

Fig 3: Side Object Detection (UFT)
GM2081732Courtesy of GENERAL MOTORS CORP.
