Remote Function Schematics

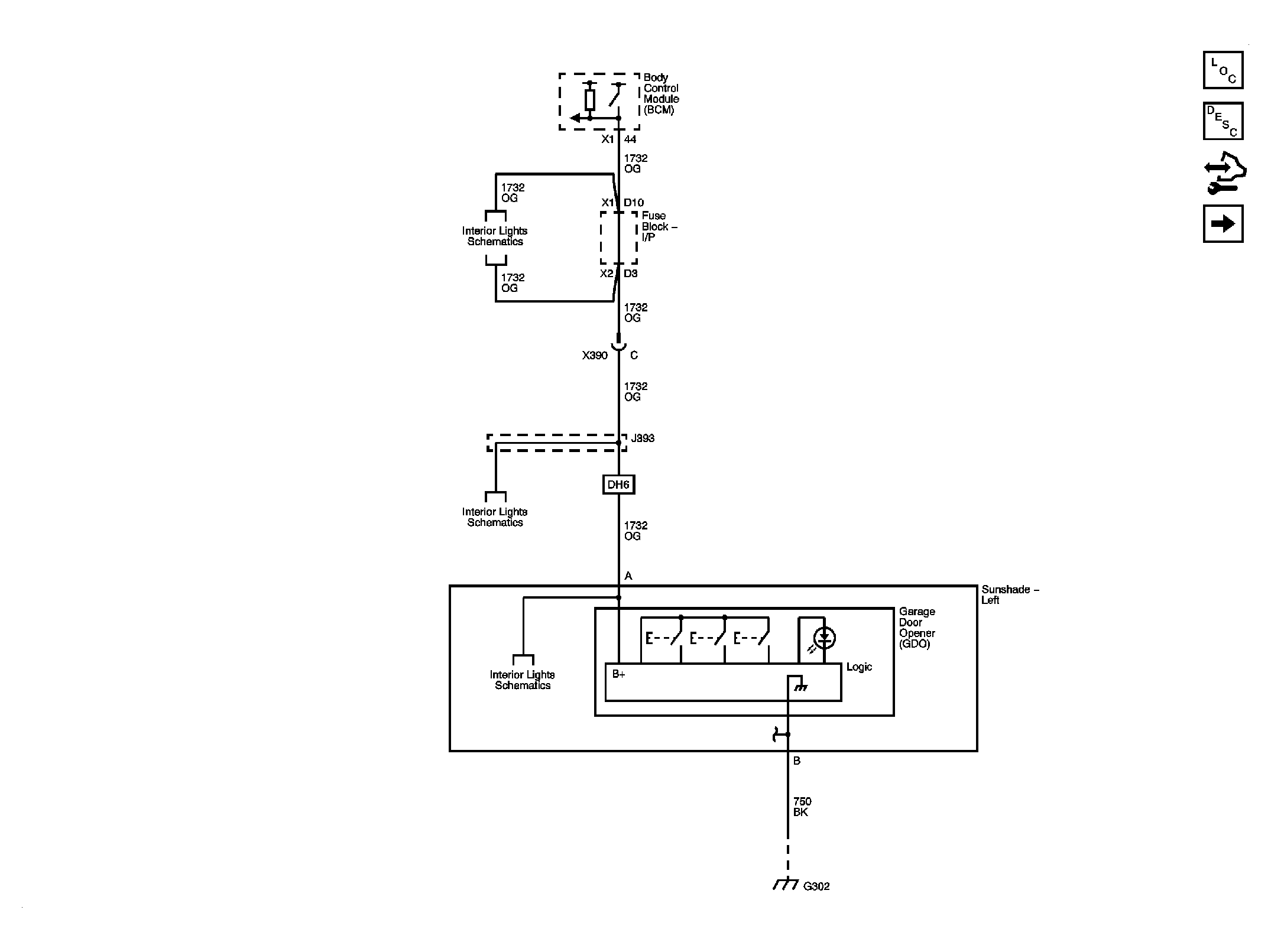

Fig 1: Garage Door Opener
Courtesy of GENERAL MOTORS CORP.

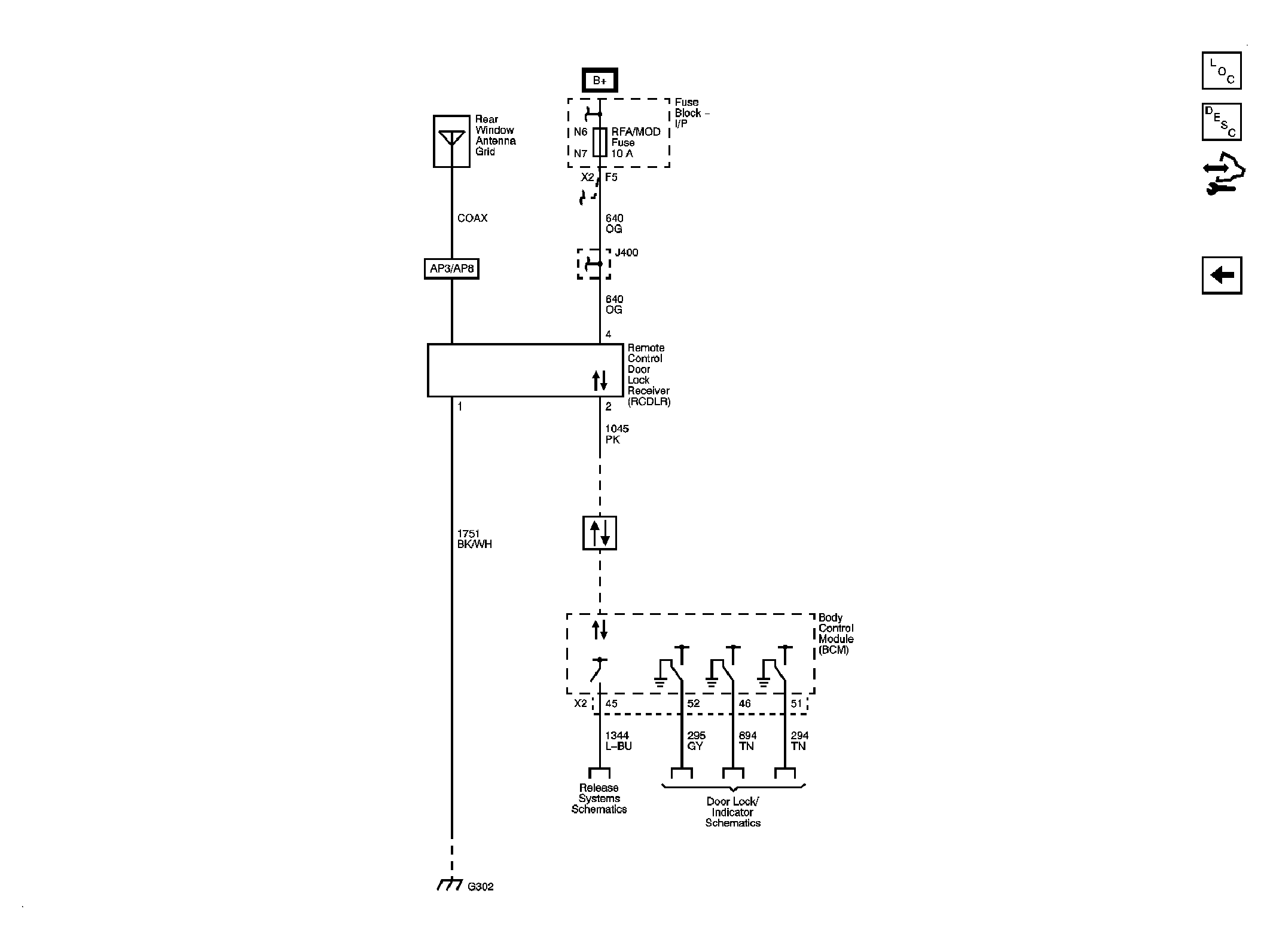

Fig 2: Keyless Door Entry
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
