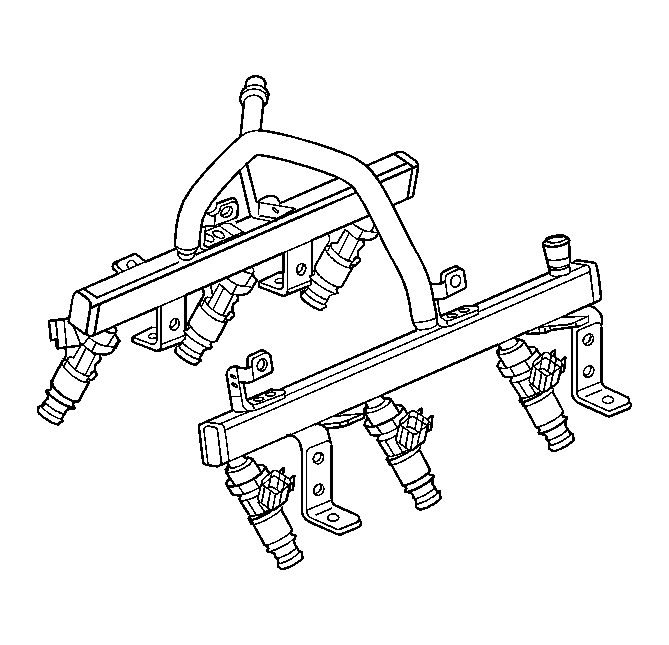

Fuel Rail Assembly
Courtesy of GENERAL MOTORS CORP.
The fuel rail assembly attaches to the engine intake manifold. The fuel rail assembly performs the following functions:
- Positions the injectors in the intake manifold
- Distributes fuel evenly to the injectors
