Home >> Buick >> 2009 >> Allure CX >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System & Fuel System - 3.8L - Introduction >> Description and Operation >> Electronic Ignition (EI) System Description >> Notes

Electronic Ignition (EI) System Description: Notes

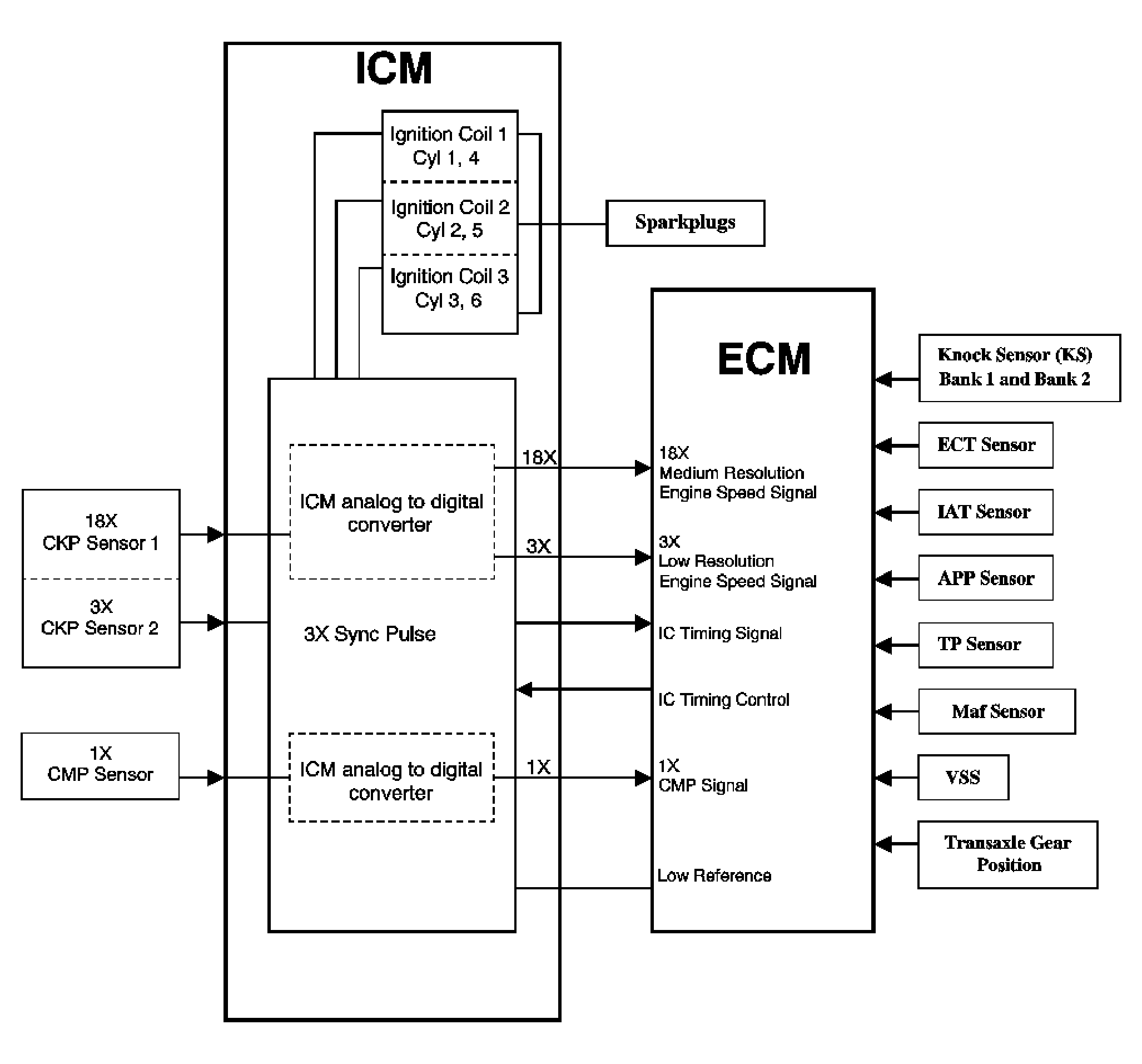

Fig 1: Identifying Electronic Ignition (EI) System

GM1916803

Courtesy of GENERAL MOTORS CORP.
