Communication Interface Module Replacement

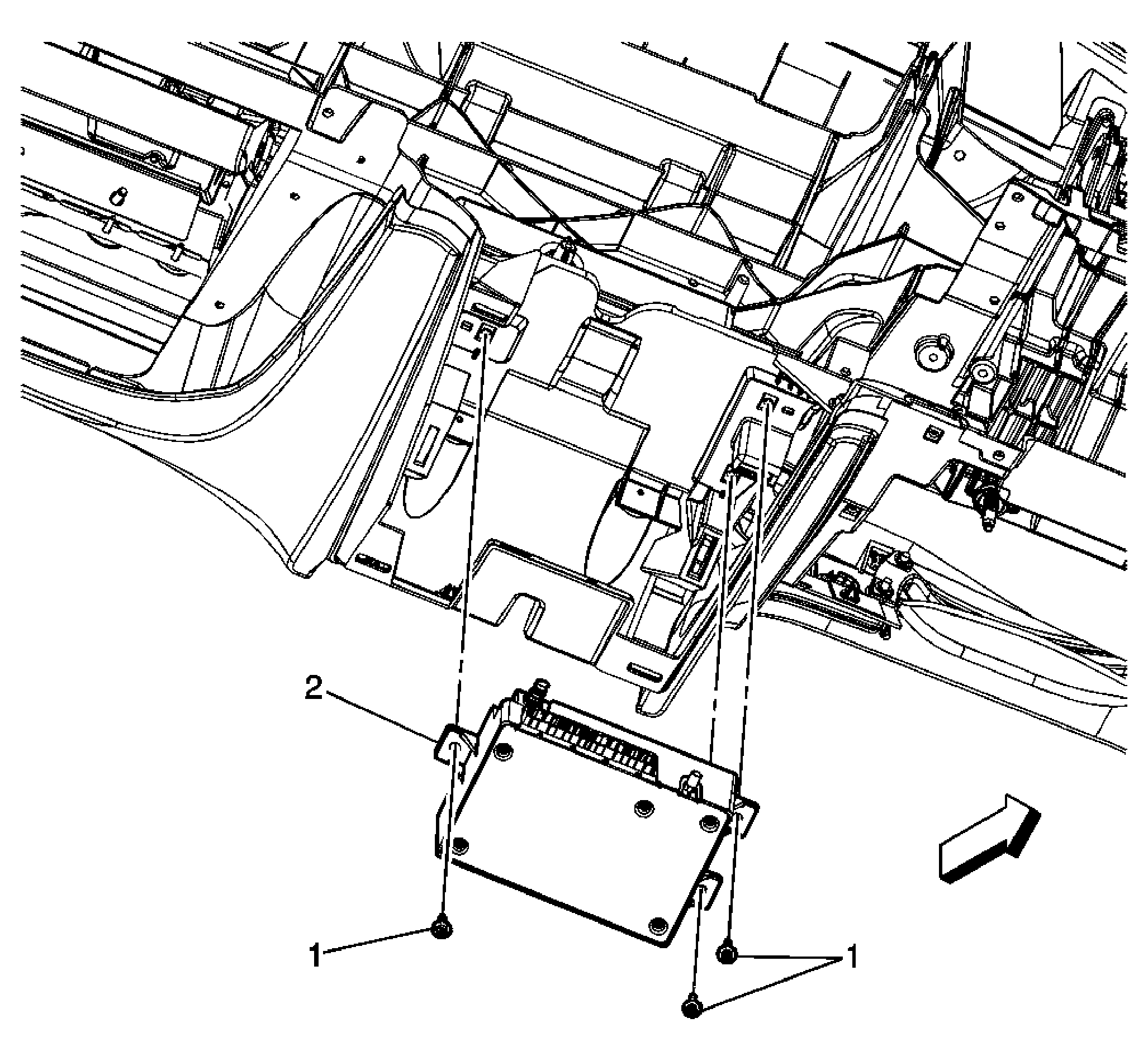

Fig 1: Communication Interface Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the Front Floor Console. Refer to FRONT FLOOR CONSOLE REPLACEMENT
1	Communication Interface Module Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Communication Interface Module Procedure Disconnect the electrical connections. If Replacing the Communication Interface Module be sure to transfer Bluetooth Antenna, if equipped. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure:
Remove the Front Floor Console. Refer to FRONT FLOOR CONSOLE REPLACEMENT

Communication Interface Module Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Communication Interface Module

Procedure

Disconnect the electrical connections.
If Replacing the Communication Interface Module be sure to transfer Bluetooth Antenna, if equipped.
Refer to Control Module References for programming and set up procedures.
