Instrument Panel/Center Console Component Views

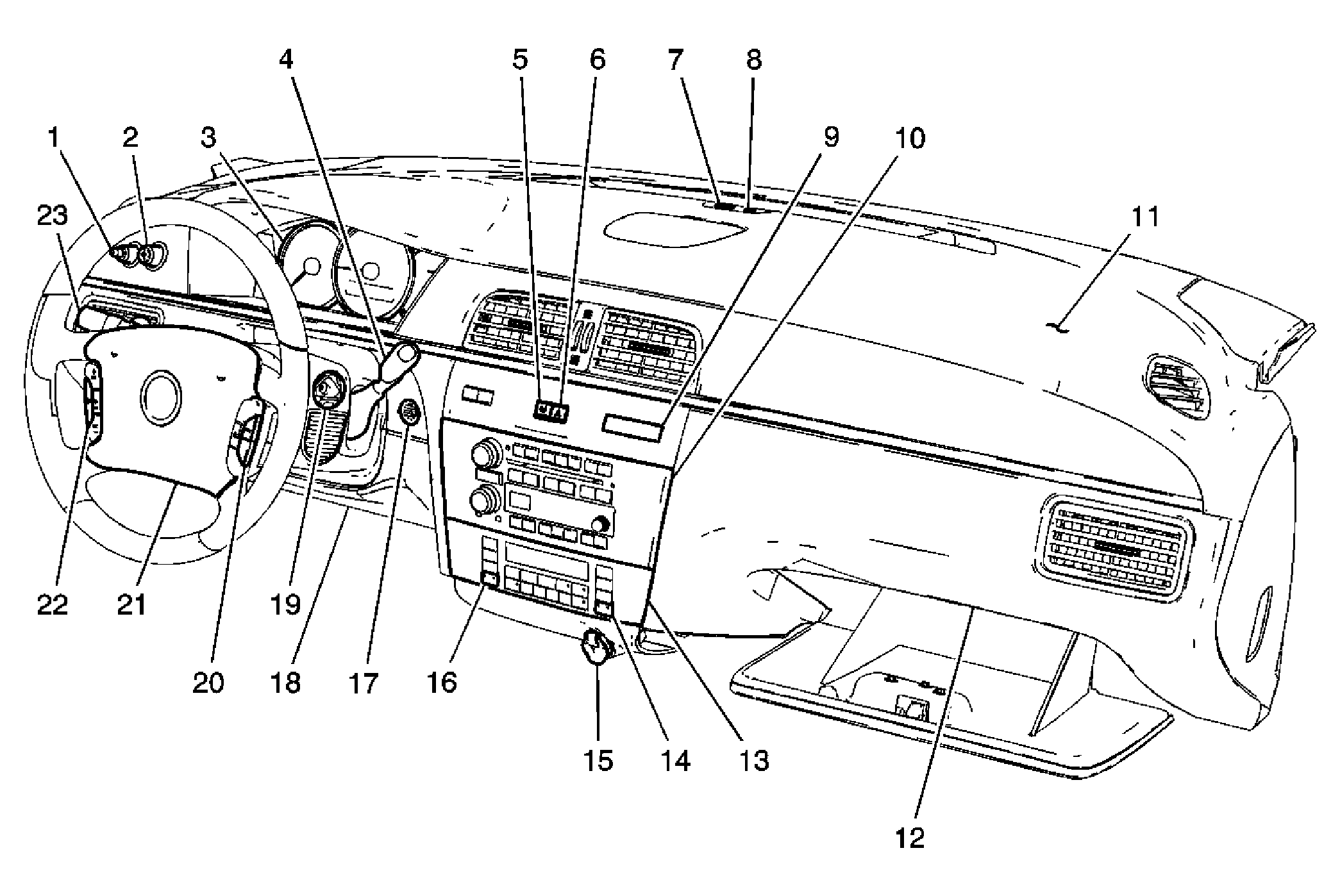

Fig 1: Instrument Panel Overview

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Switch - I/P (Exterior Lamps)
2	Multifunction Switch - I/P (Interior Lamps)
3	Instrument Panel Cluster (IPC)
4	Automatic Transmission Shift Lock Control Solenoid (without D55)
5	Traction Control Switch (Part of Driver information Center (DIC) Switch)
6	Hazard Switch (Part of Driver information Center (DIC) Switch)
7	Sunload Sensor (CJ2)
8	Ambient Light Sensor (C67)
9	Driver Information Center (DIC) Switch
10	Radio
11	Inflatable Restraint I/P Module
12	I/P Compartment Lamp Switch
13	HVAC Control Module
14	Heated Seat Switch - Passenger (Part of HVAC Control Module) (KA1)
15	Cigar Lighter
16	Heated Seat Switch - Driver (Part of HVAC Control Module) (KA1)
17	Air Temperature Sensor - Inside (CJ2)
18	Data Link Connector (DLC)
19	Ignition Switch
20	Steering Wheel Control Switch - Right (UK3)
21	Inflatable Restraint Steering Wheel Module
22	Steering Wheel Control Switch - Left (UK3)
23	Turn Signal/Multifunction Switch

Fig 2: View Behind Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Compartment Lamp Switch
2	HVAC Control Module
3	Radio
4	Air Temperature Sensor - Inside (CJ2)
5	Steering Wheel
6	Instrument Panel Cluster (IPC)
7	Body Control Module (BCM)
8	Steering Angle Sensor (JL4)
9	Vehicle Communication Interface Module (VCIM) (UE1)
10	Cigar Lighter
11	Fuse Block - I/P

Fig 3: Left Front of the Passenger Compartment, in the Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Theft Deterrent Module (TDM)
3	Ignition lock Cylinder Control Actuator (D55)

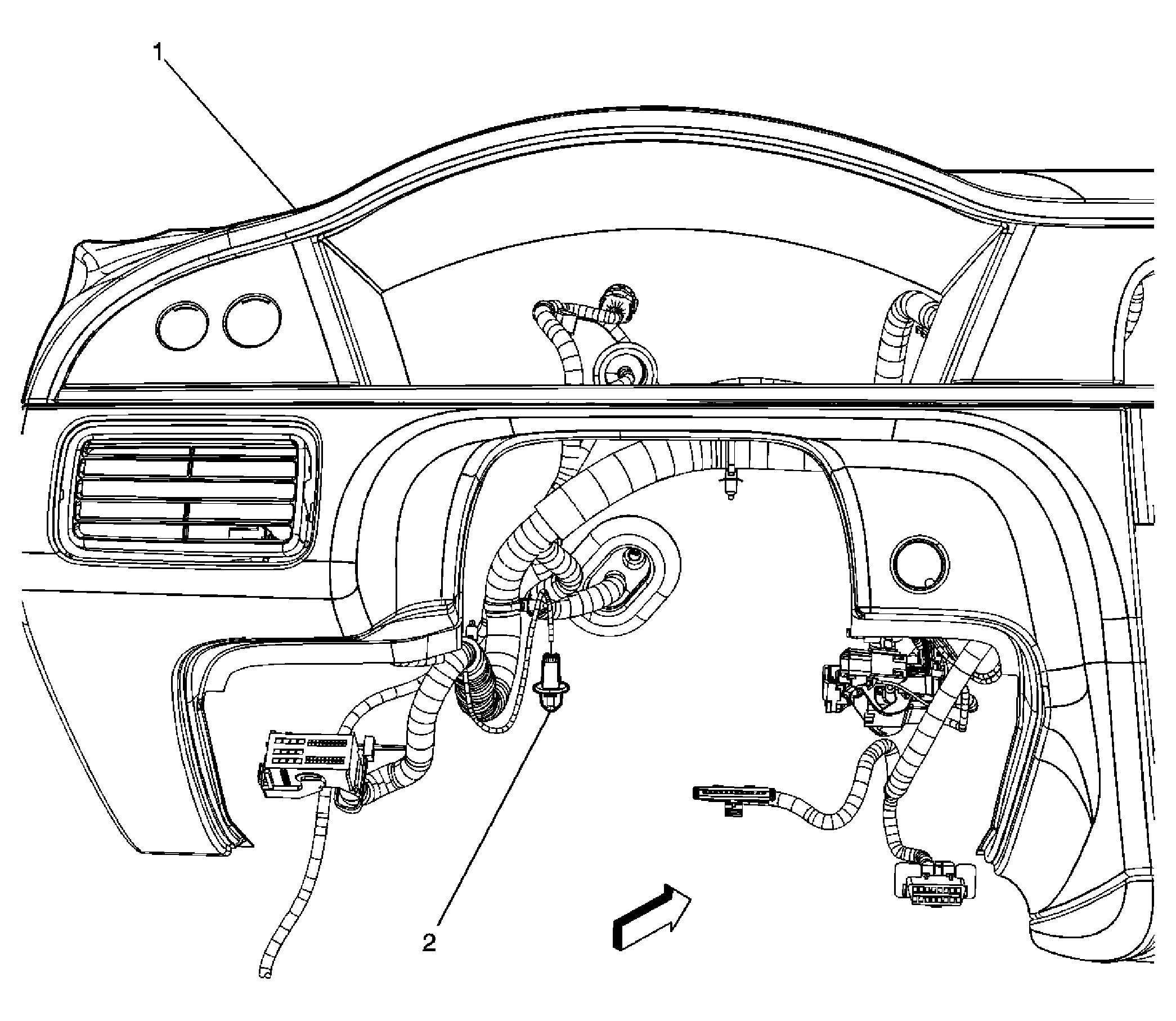

Fig 4: Left Side I/P Lighting

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	I/P Courtesy Lamp - Left

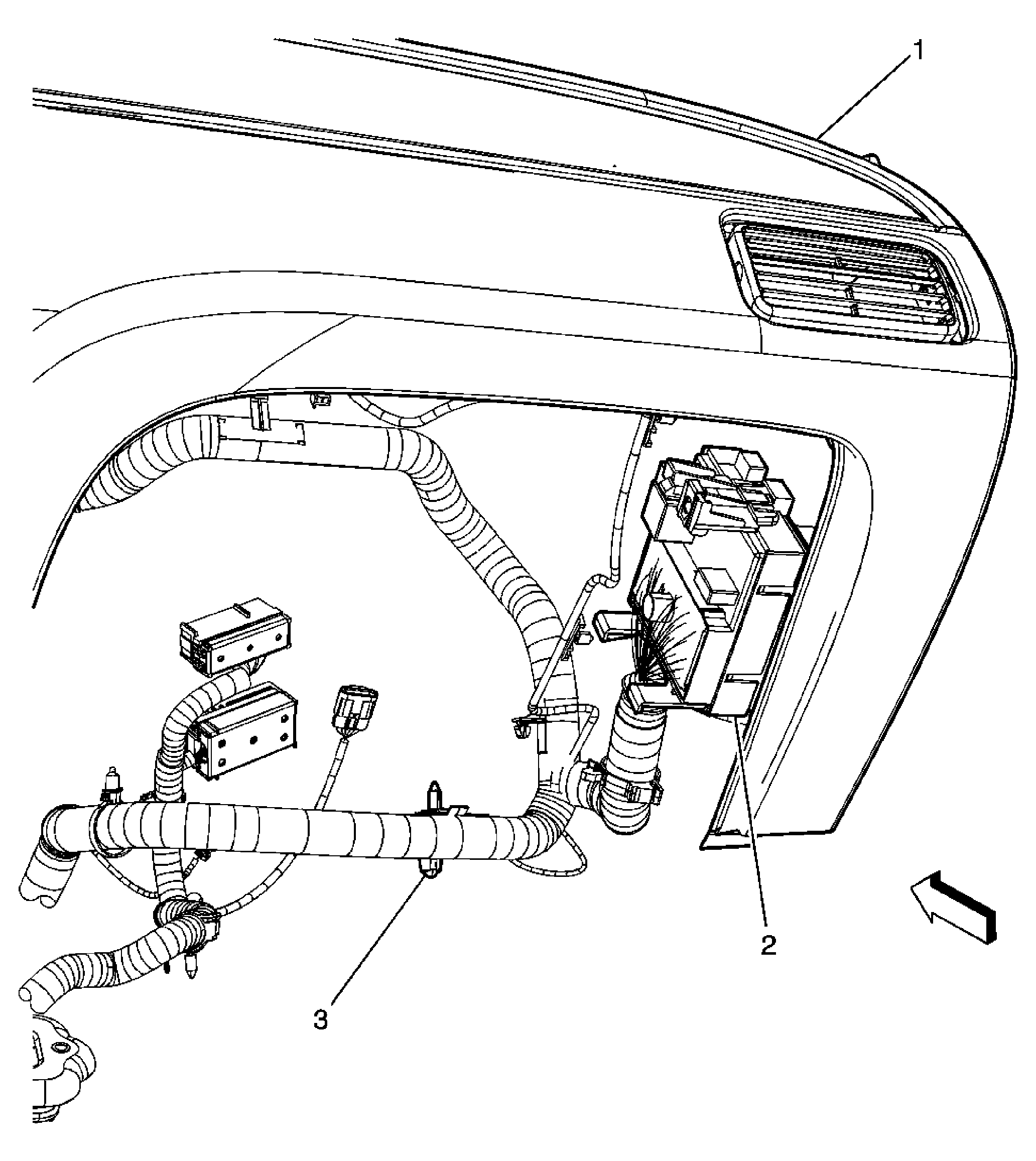

Fig 5: Power and Grounding Components (Right Side I/P Lighting)

Courtesy of GENERAL MOTORS CORP.

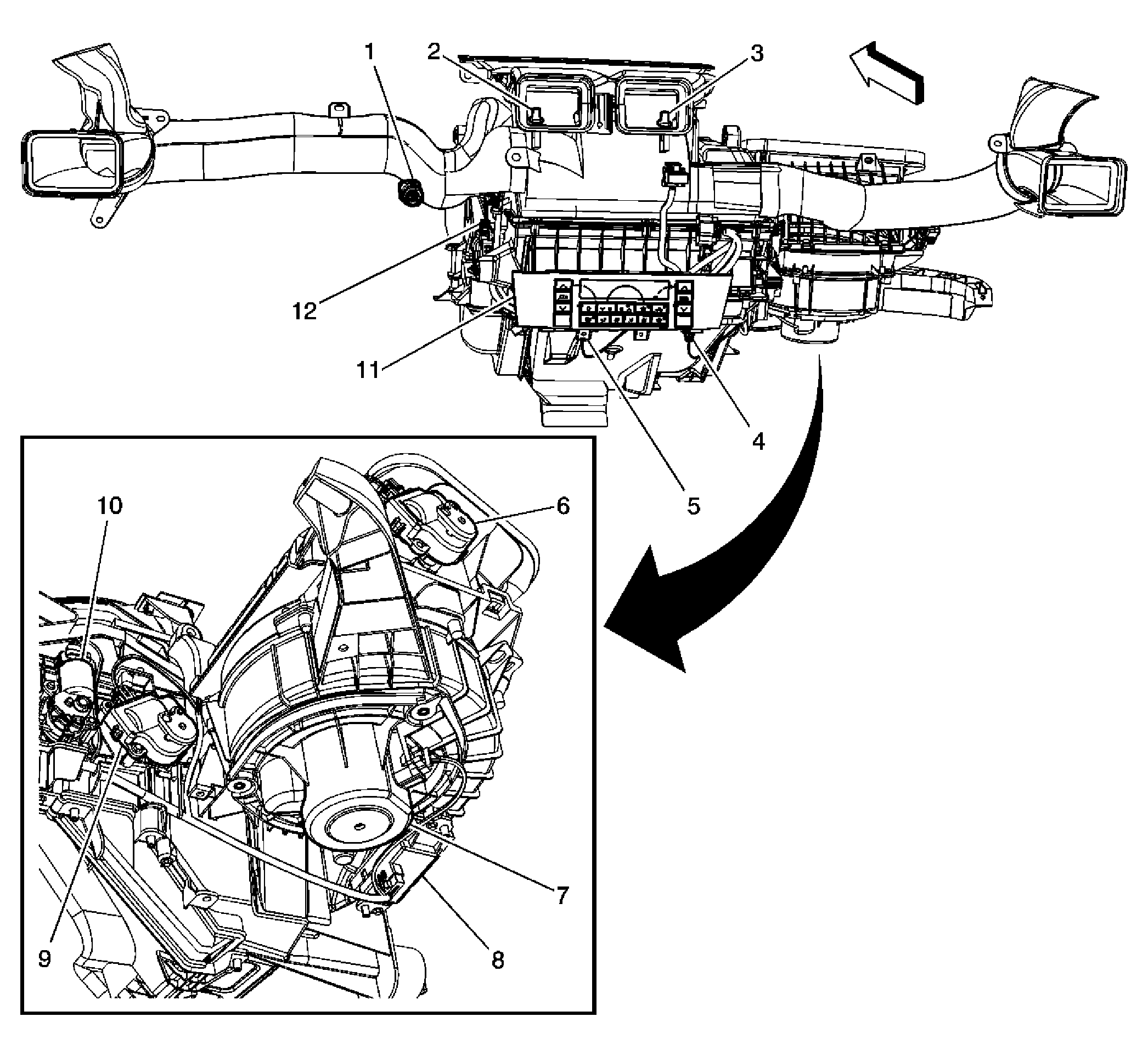

Fig 6: Interior HVAC Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Sensor - Inside (CJ2)
2	Air Temperature Sensor - Upper Left (CJ2)
3	Air Temperature Sensor - Upper Right (CJ2)
4	Air Temperature Sensor - Lower Right (CJ2)
5	Air Temperature Sensor - Lower Left (CJ2)
6	Recirculation Actuator
7	Blower Motor
8	Blower Motor Control Module
9	Air Temperature Actuator - Right (CJ2) or Air Temperature Actuator (CJ2)
10	Mode Actuator
11	HVAC Control Module
12	Air Temperature Actuator - Left (CJ2)

Fig 7: Data Communication, Power and Grounding Components (Below I/P Carrier)

Courtesy of GENERAL MOTORS CORP.

Fig 8: ABS & Horn Components (Steering Column)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Angle Sensor (JL4)
2	X201
3	Automatic Transmission Shift Lock Control Solenoid Connector (without D55)
4	Horn Switch Connector
5	Inflatable Restraint Steering Wheel Module Coil X5 Connector
6	Steering Wheel Control Switch - Left (UK3)
7	Turn Signal/Multifunction Switch
8	Body Control Module (BCM) X3 Connector

Fig 9: Inside Center Console Component View (D55)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Shift Lock Control Solenoid
2	Automatic Transmission Shift Lever Position Indicator
3	X341
4	X340

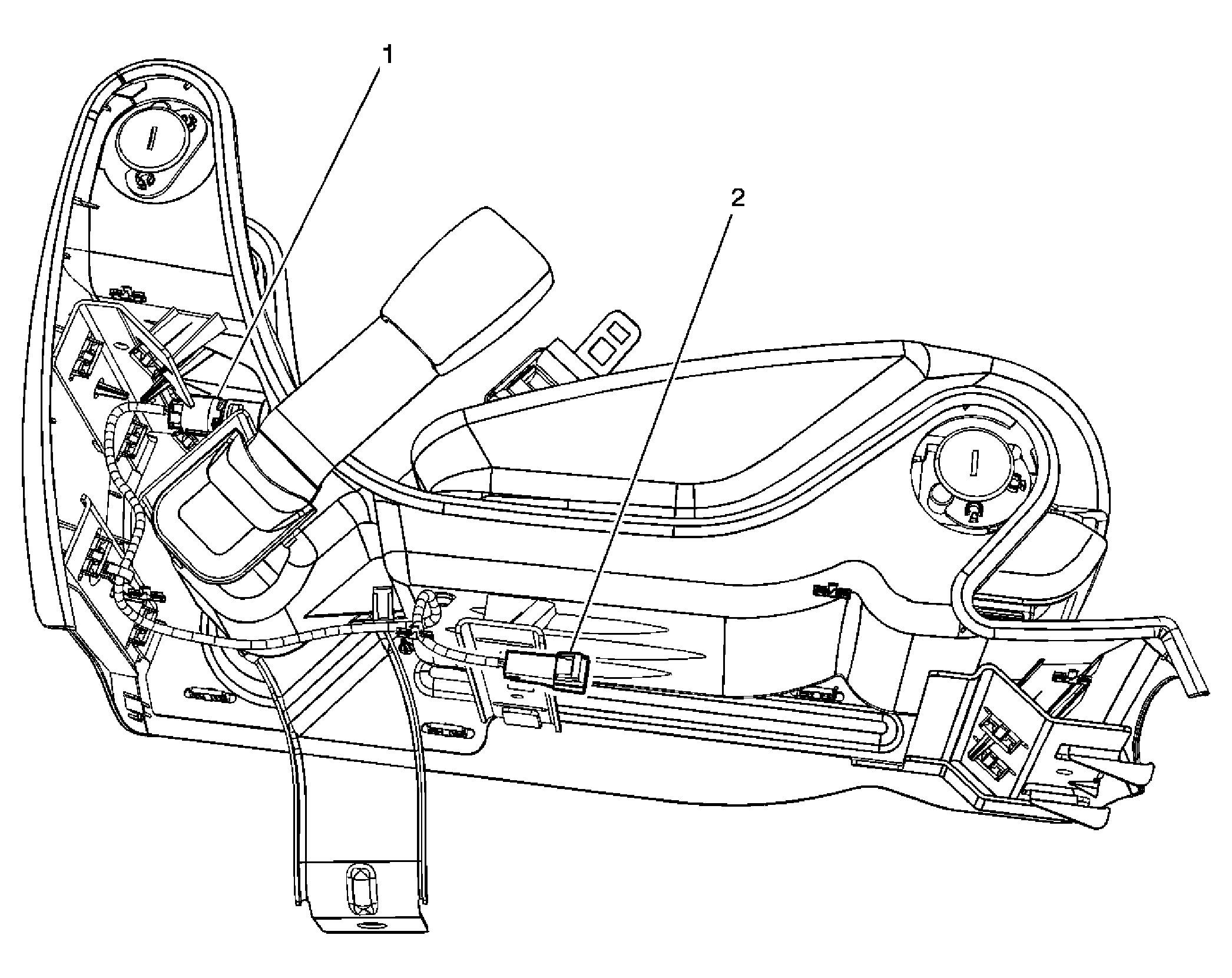

Fig 10: Power Outlet Components (Console Harness - D55)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accessory Power Outlet
2	X340

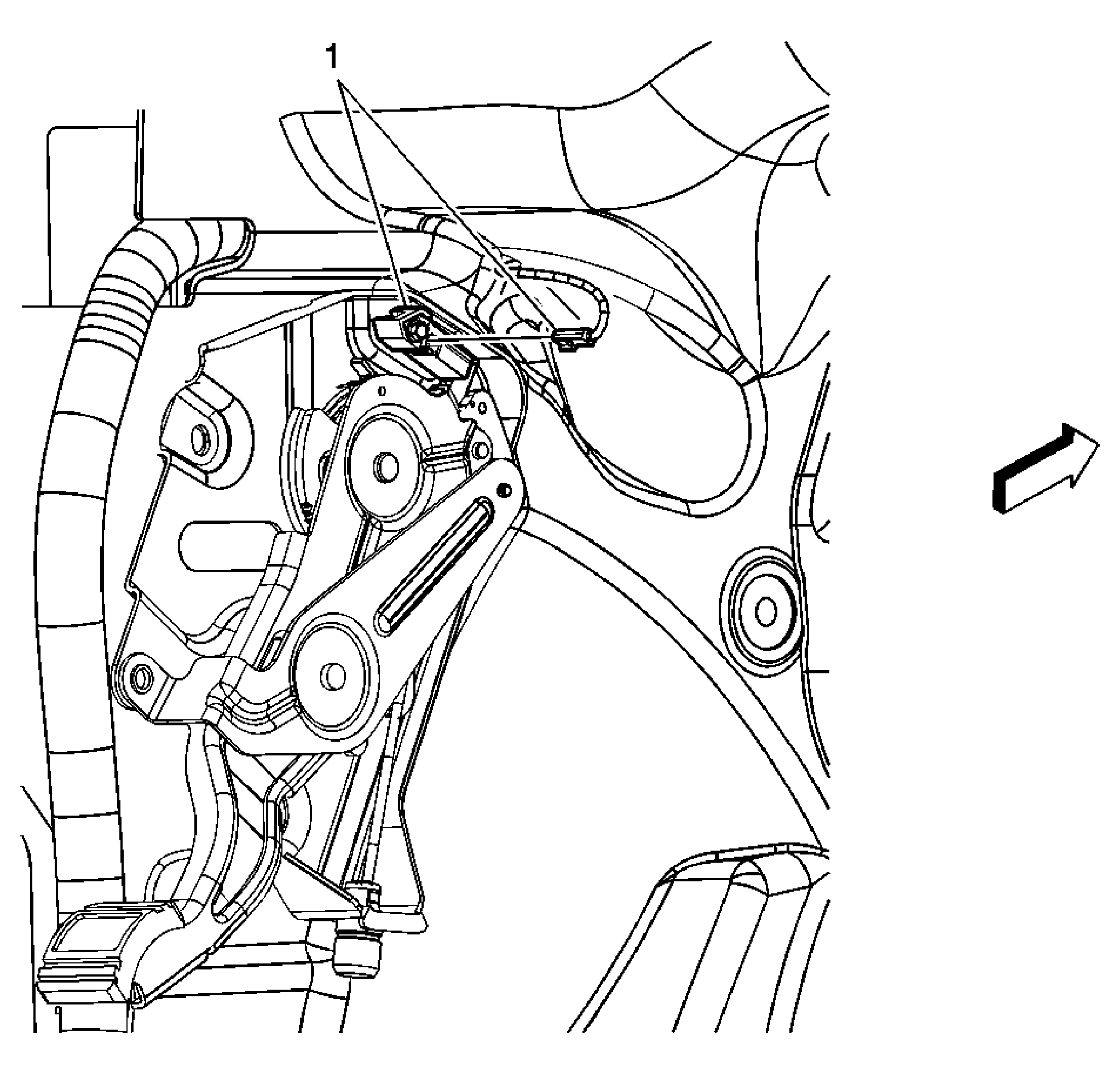

Fig 11: Under the Left Side of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch

Fig 12: Left Footwell Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accelerator Pedal Position (APP) Sensor
2	Brake Pedal Position (BPP) Sensor
