Cruise Control Schematics

WARNING: This page is about a different car, the 2010 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

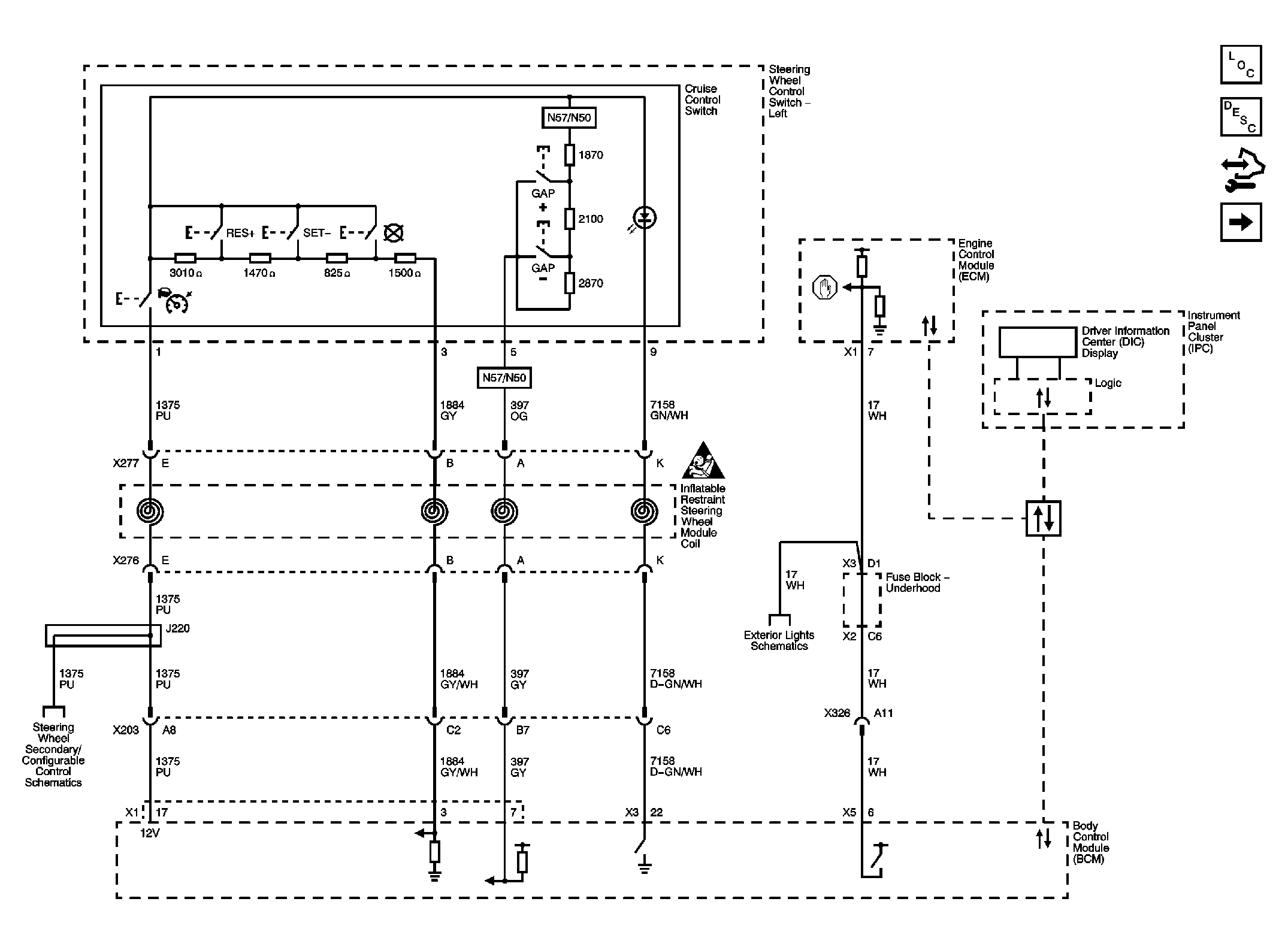

Fig 1: ON/OFF Switch

Courtesy of GENERAL MOTORS CORP.

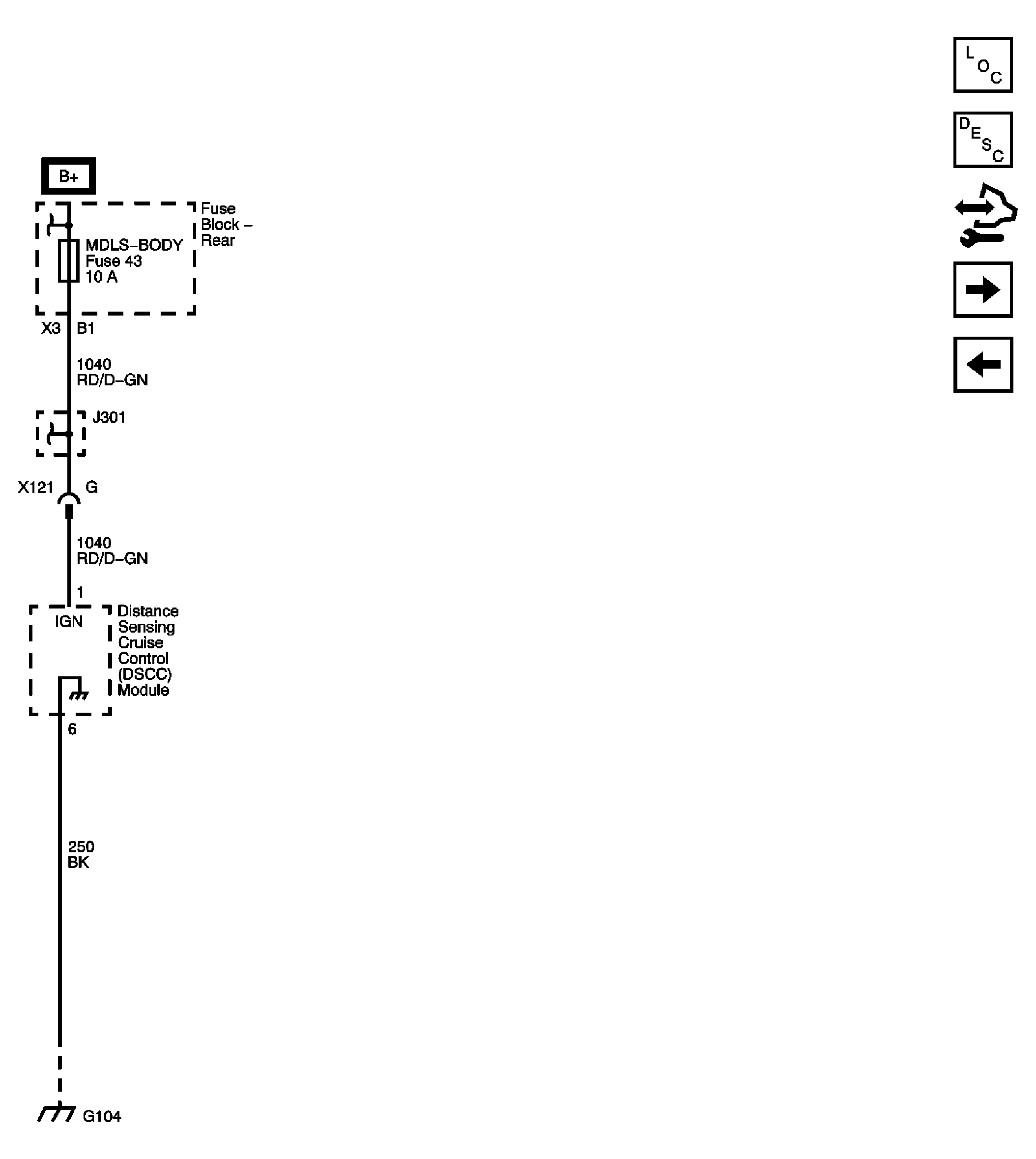

Fig 2: Distance Sensing Cruise Control Module

Courtesy of GENERAL MOTORS CORP.

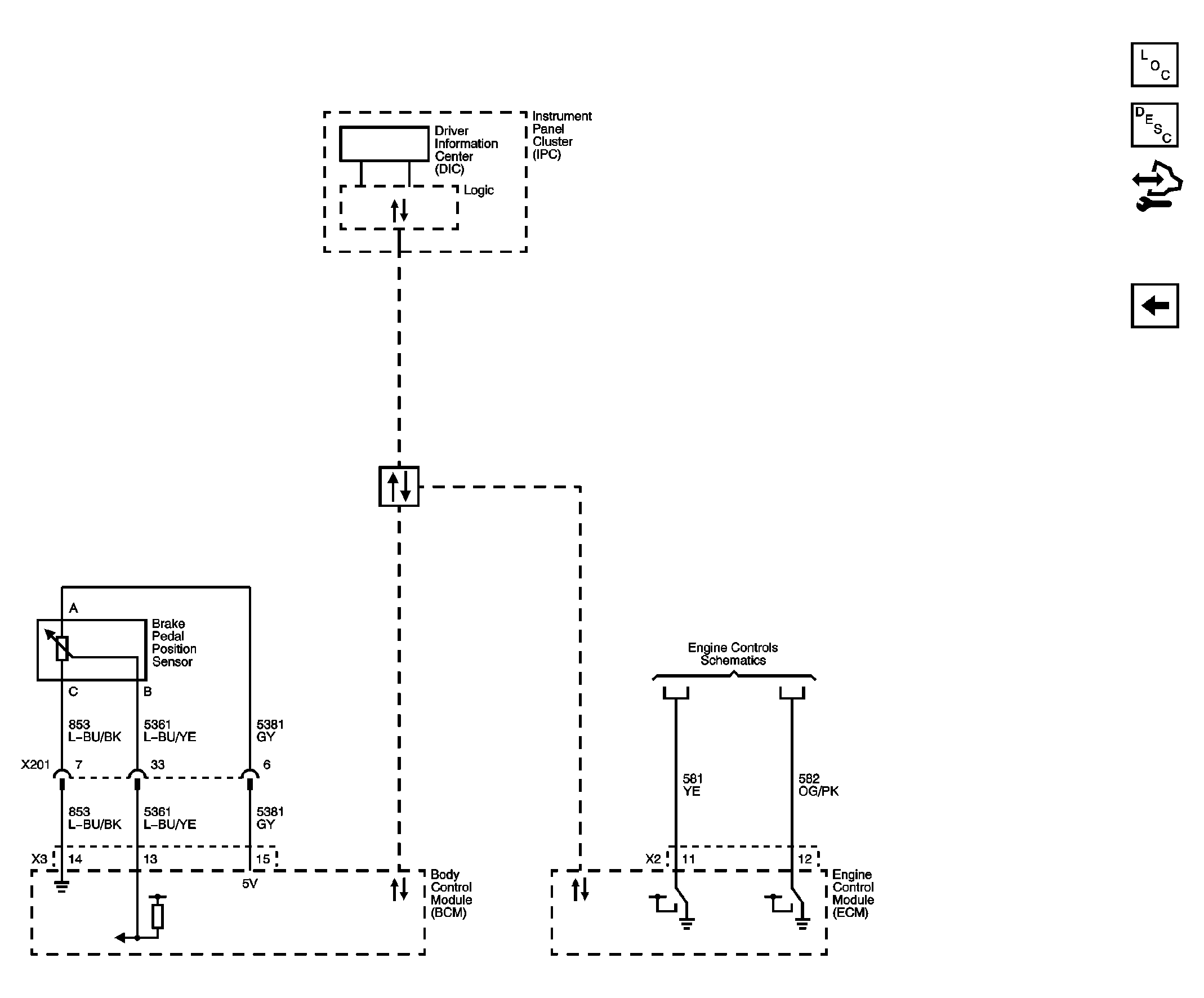

Fig 3: Indicators

Courtesy of GENERAL MOTORS CORP.
