Remote Function Schematics

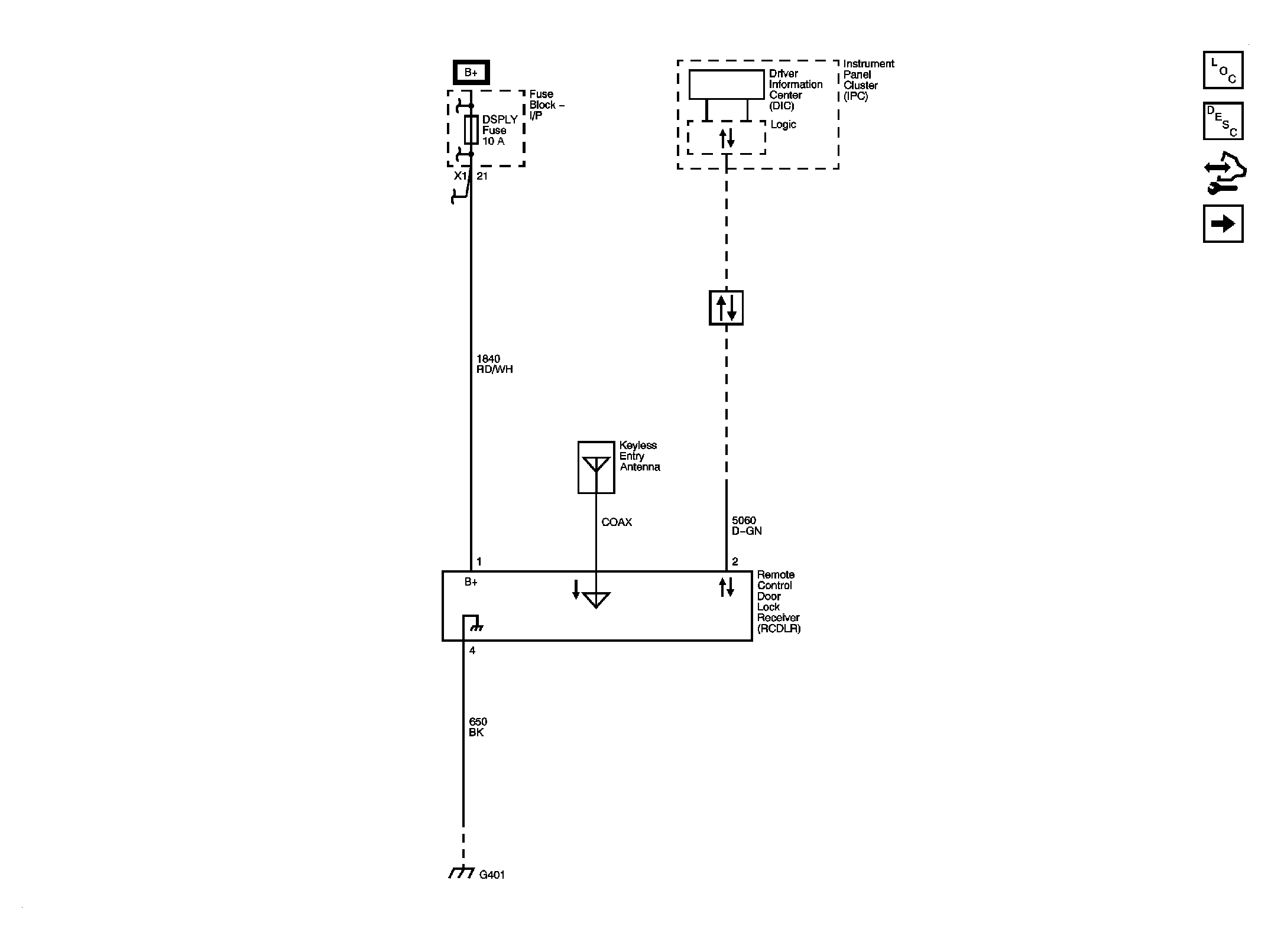

Fig 1: Keyless Entry - AP3/AP8
Courtesy of GENERAL MOTORS CORP.

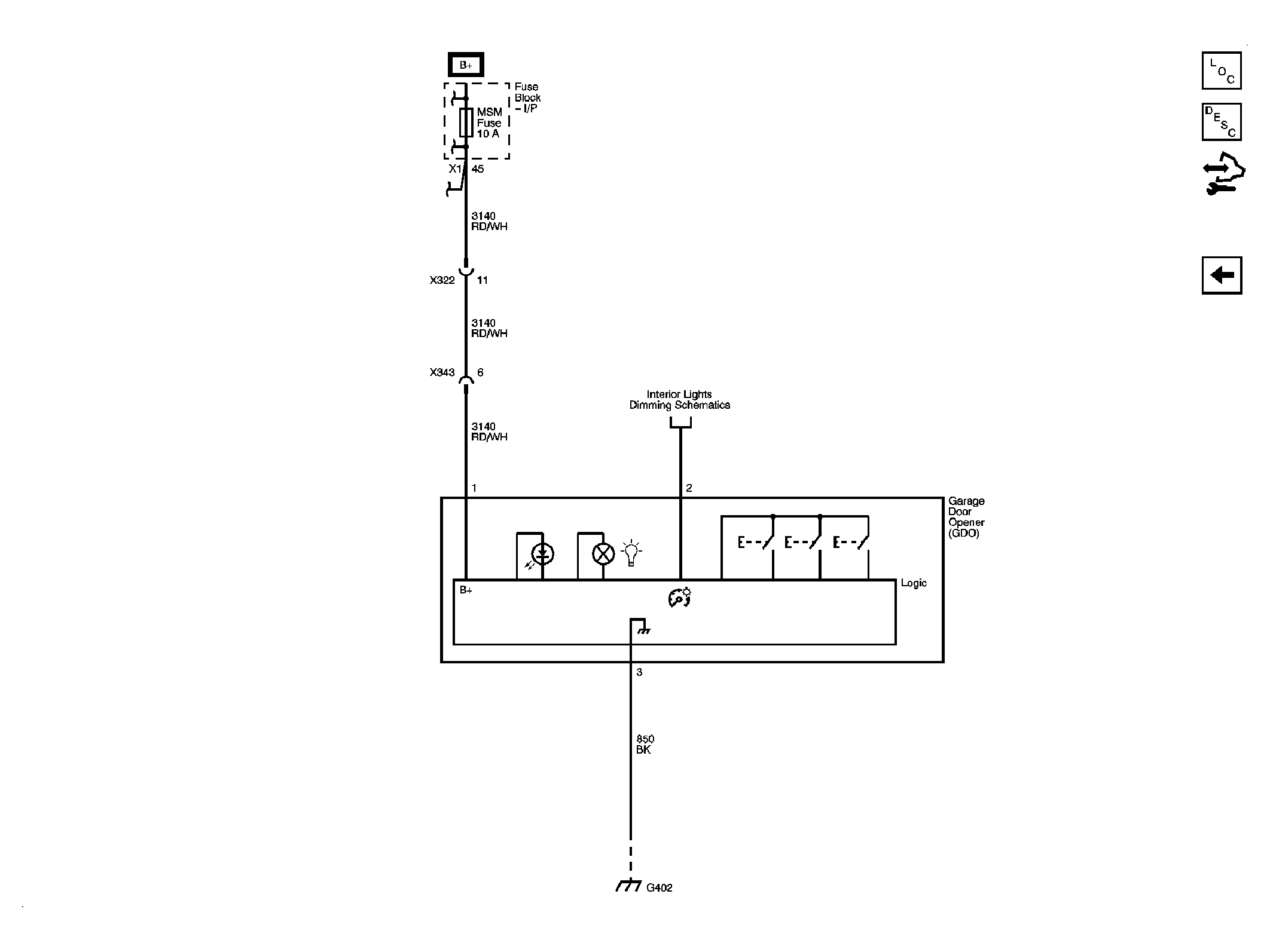

Fig 2: Garage Door Opener - UG1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
