Object Detection Schematics
Object Detection Schematics

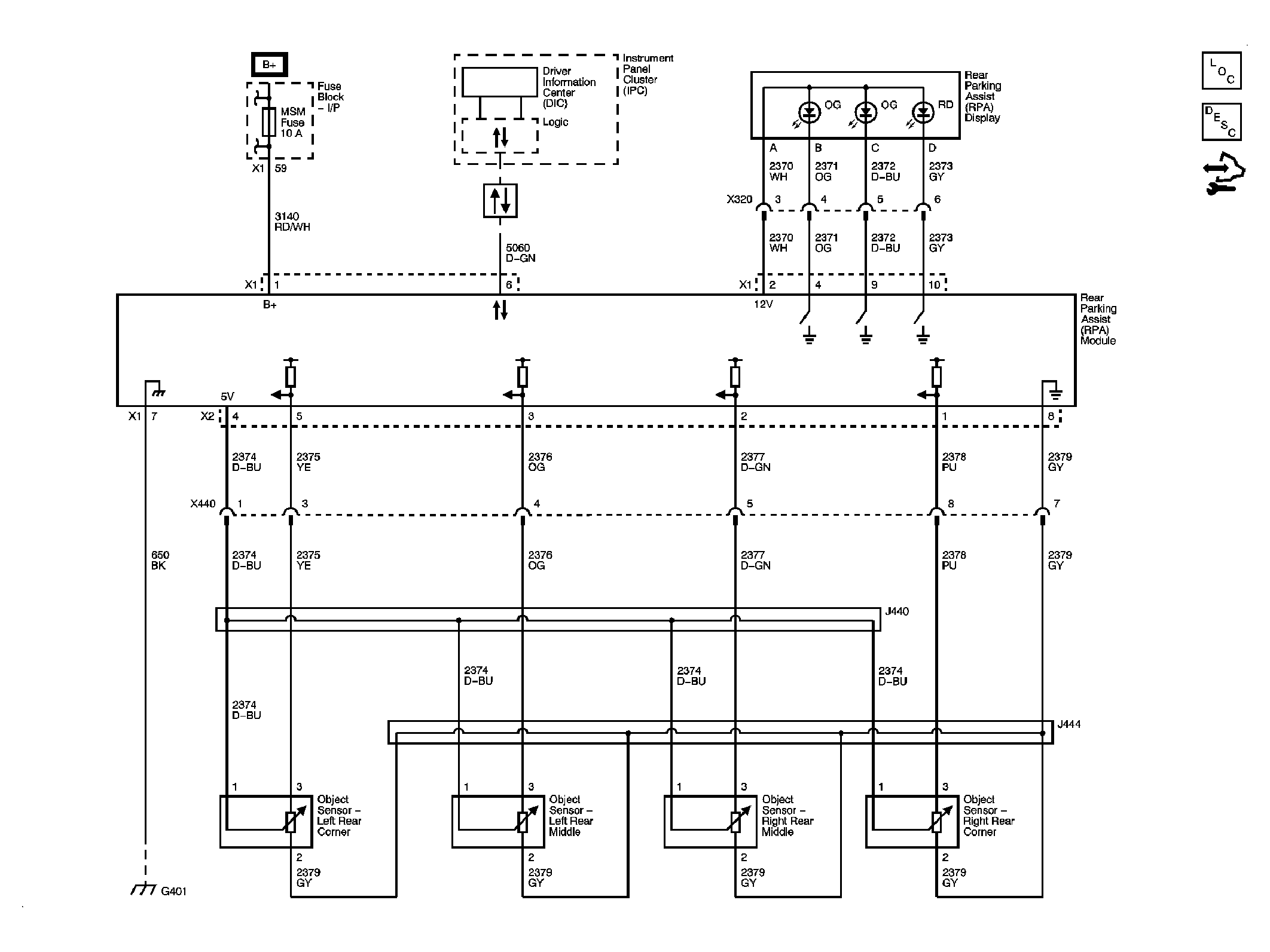

Fig 1: Rear Park Assist - UD7
Courtesy of GENERAL MOTORS CORP.

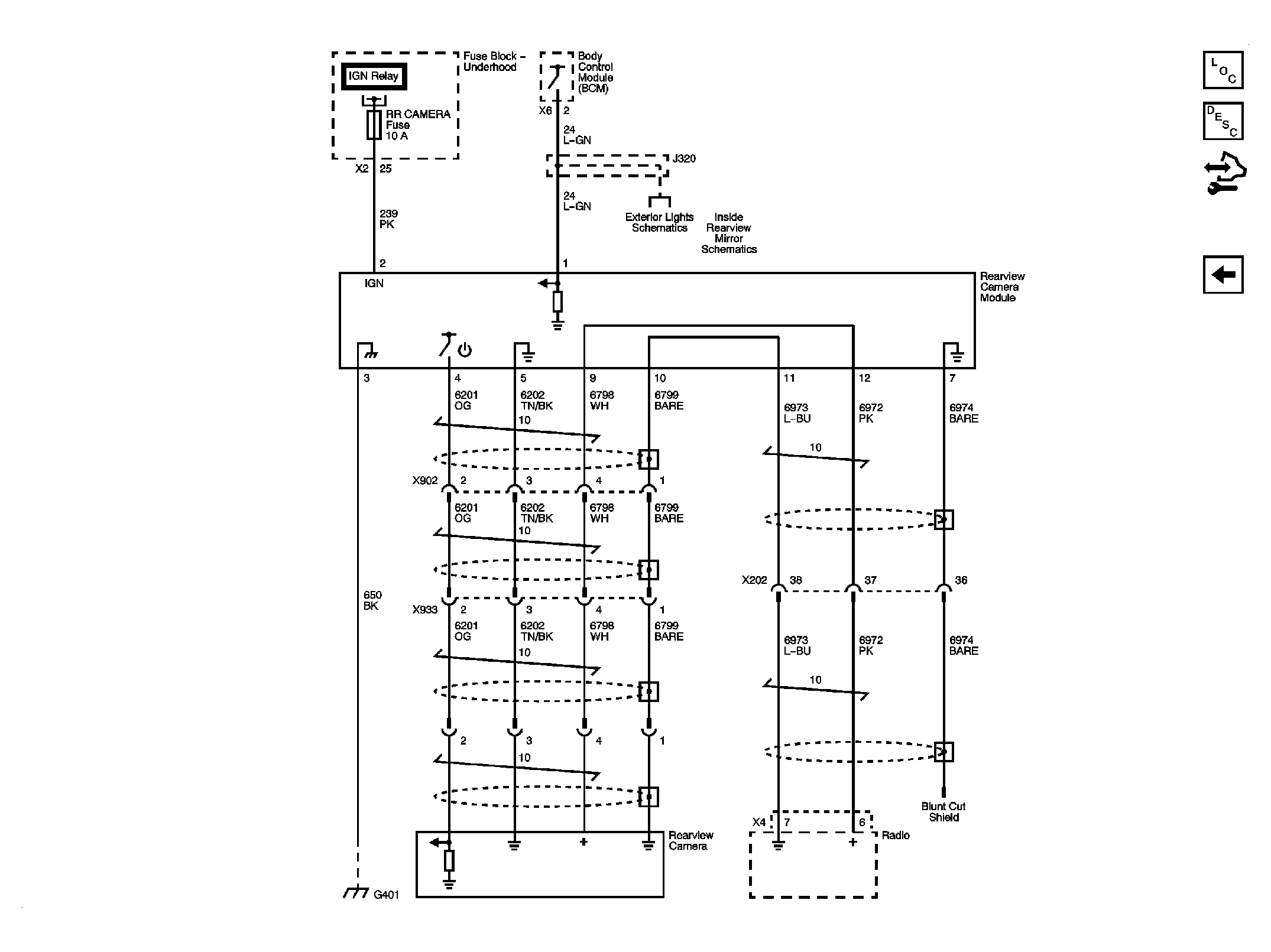

Fig 2: Rear Vision Camera - UVC
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
