Power Steering Gear Heat Shield Replacement
Power Steering Gear Heat Shield Replacement

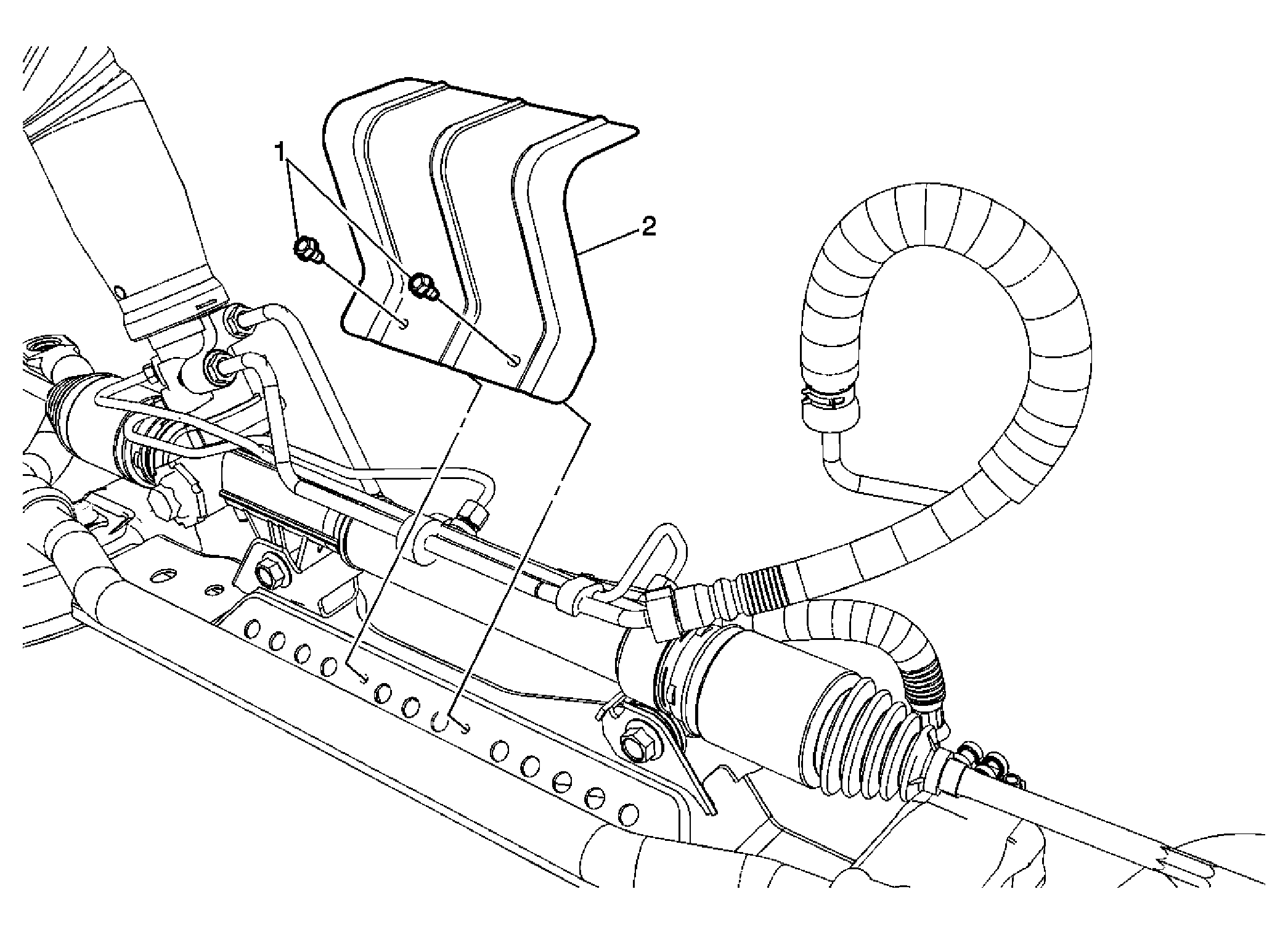

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Bolt, Power Steering Gear Heat Shield
NOTE:
Refer to Fastener Notice
.
Tighten: to 14 N.m (124 lb in) |
| 2 | Power Steering Gear Heat Shield |
