Power Outlet Component Views

Fig 1: Under the Right Side of the Instrument Panel Component View
GM1382406Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blower Motor
2 Blower Motor Resistor (C60 or CJ3) or Blower Motor Control Module (CJ2)
3 Auxiliary Drop Connector

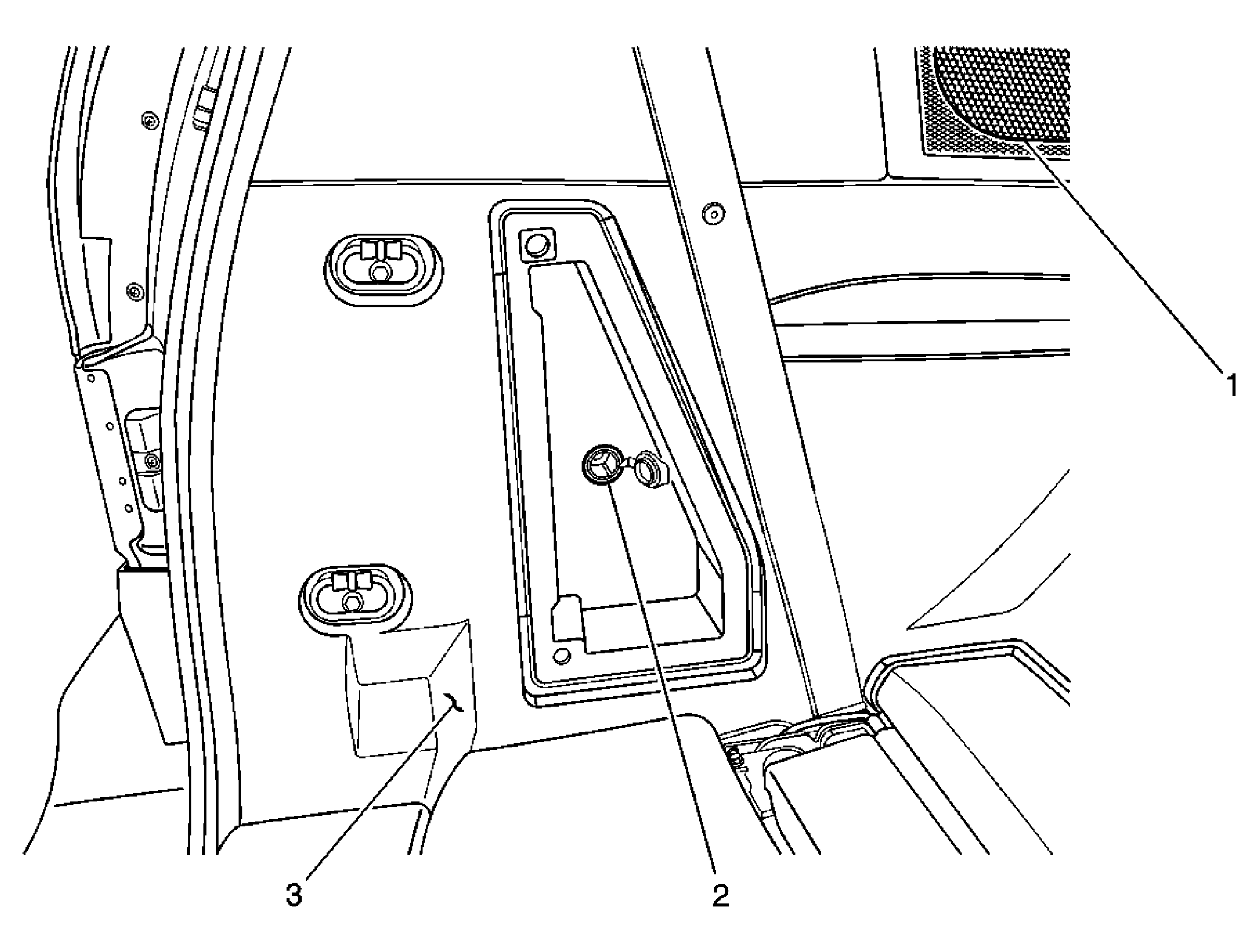

Fig 2: Left Rear of Passenger Compartment
GM1685135Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - LR Subwoofer (UQ3) (RR Similar)
2 Auxiliary Power Outlet - Rear
3 Trim Panel
