Remote Function Schematics

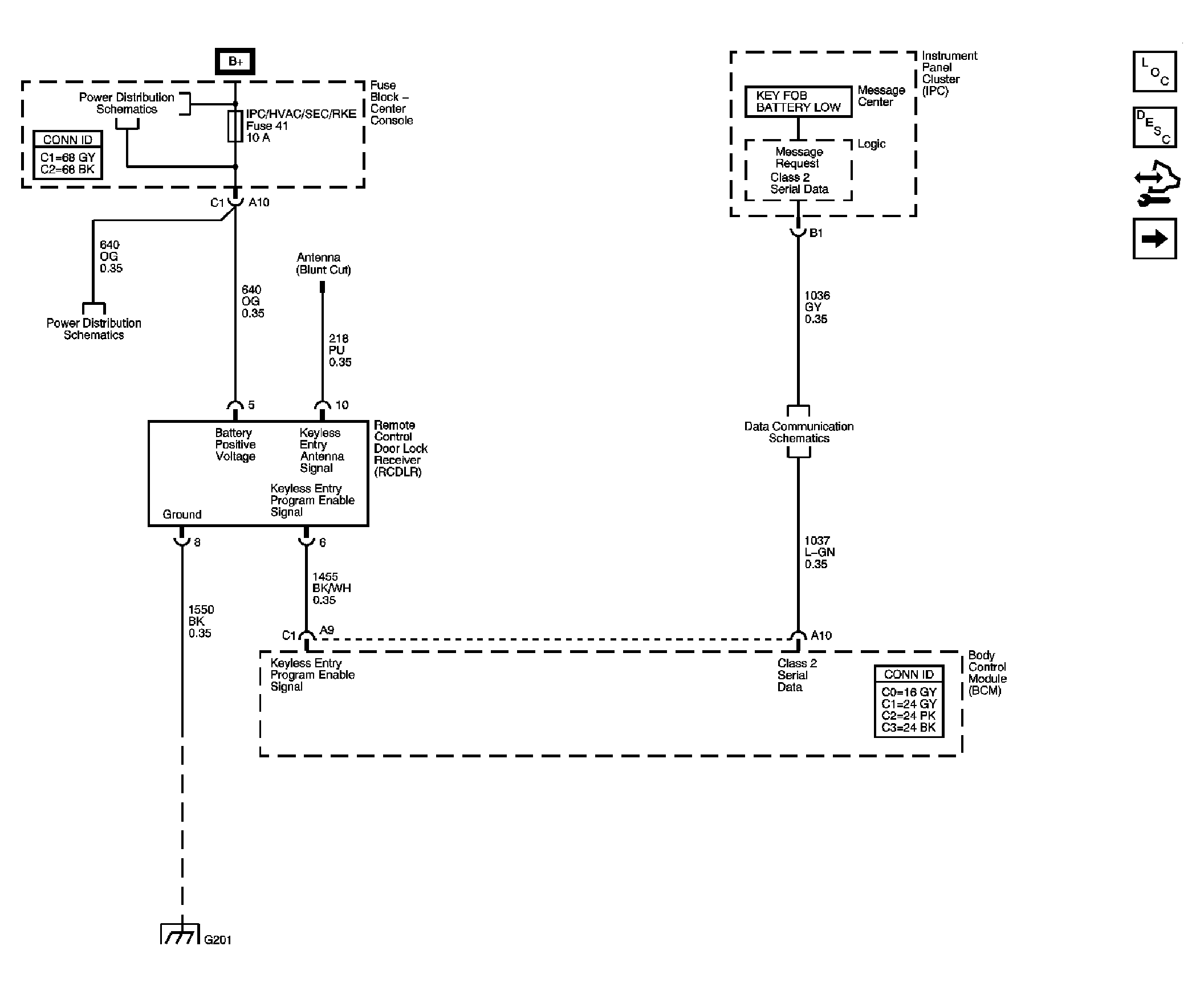

Fig 1: Keyless Entry Schematic

GM1740970

Courtesy of GENERAL MOTORS CORP.

Fig 2: Garage Door Opener Schematic

GM1740971

Courtesy of GENERAL MOTORS CORP.
