Radio/Navigation System Schematics

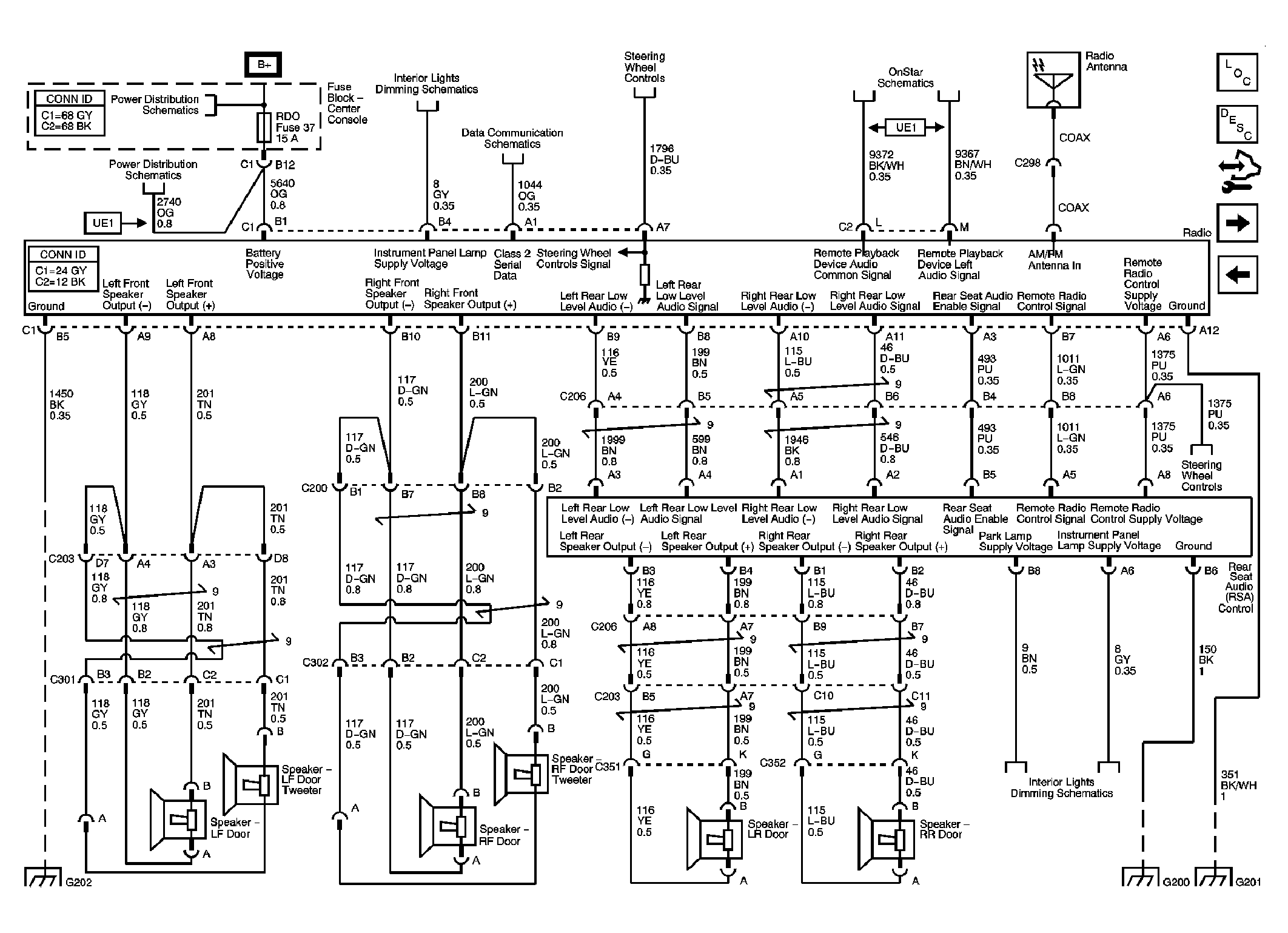

Fig 1: Audio System Schematic (U96)

Courtesy of GENERAL MOTORS CORP.

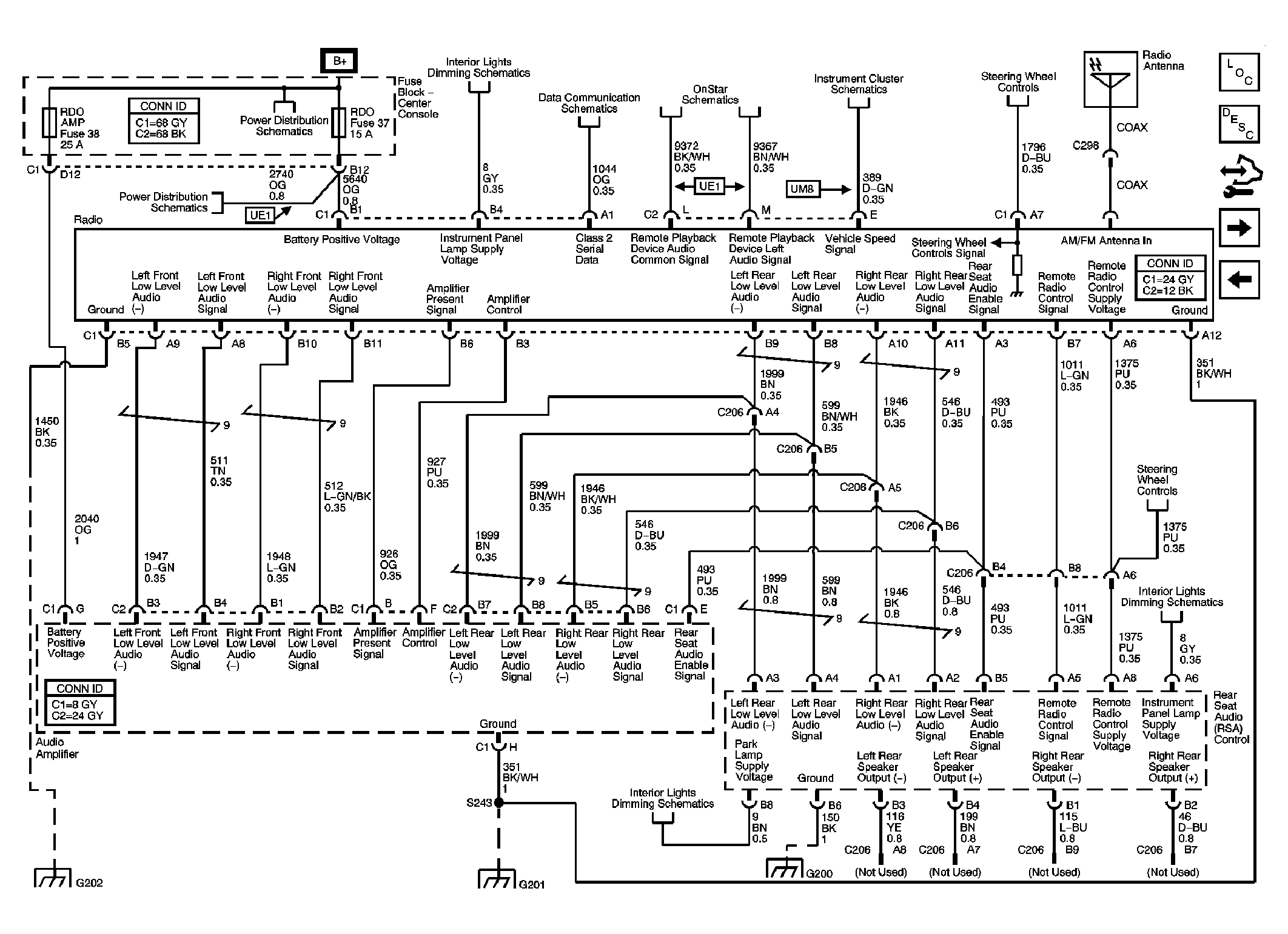

Fig 2: Audio System Schematic (U96 w/UK6)

Courtesy of GENERAL MOTORS CORP.

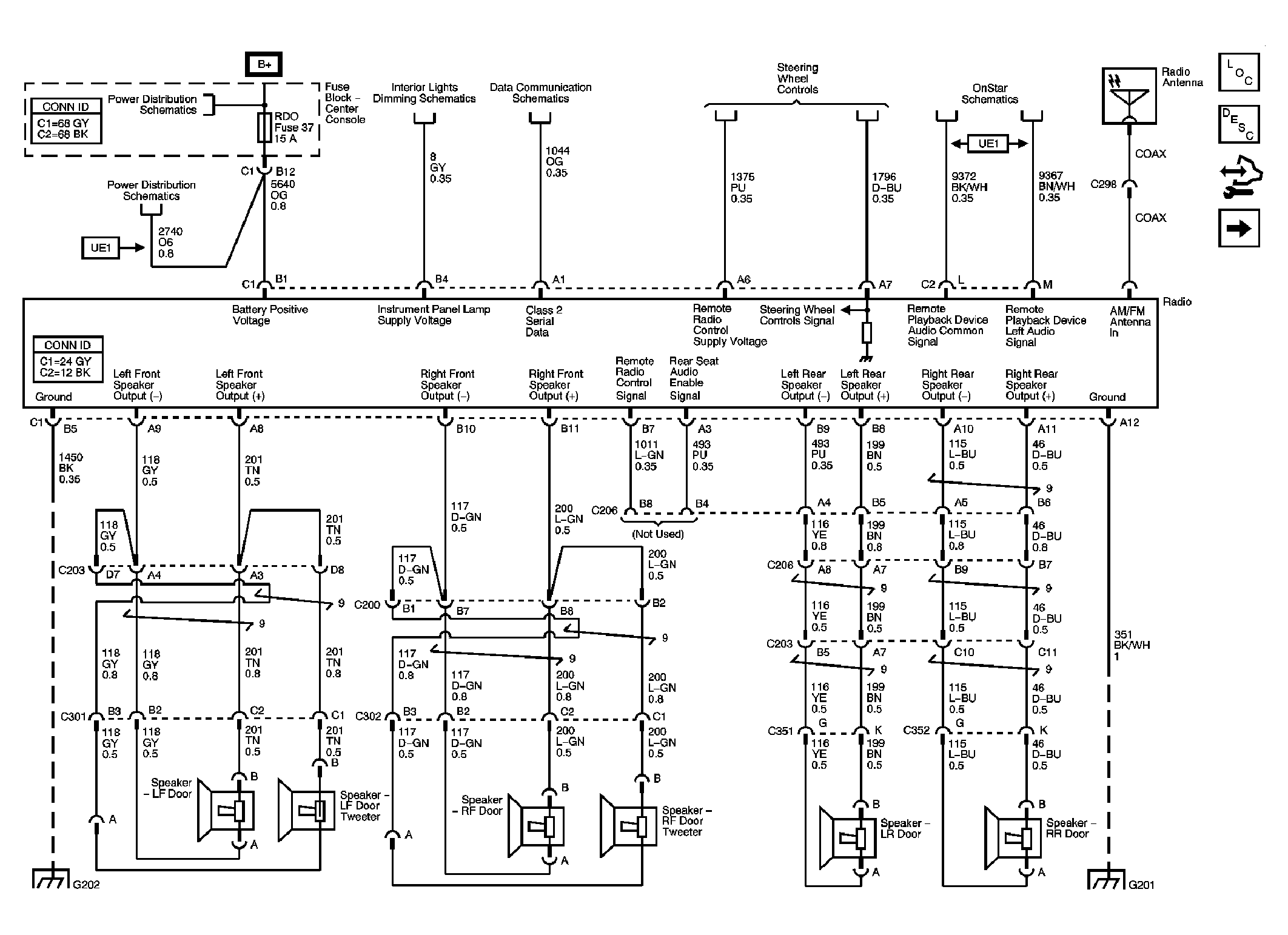

Fig 3: Audio System Controls Schematic (UQ3)

Courtesy of GENERAL MOTORS CORP.

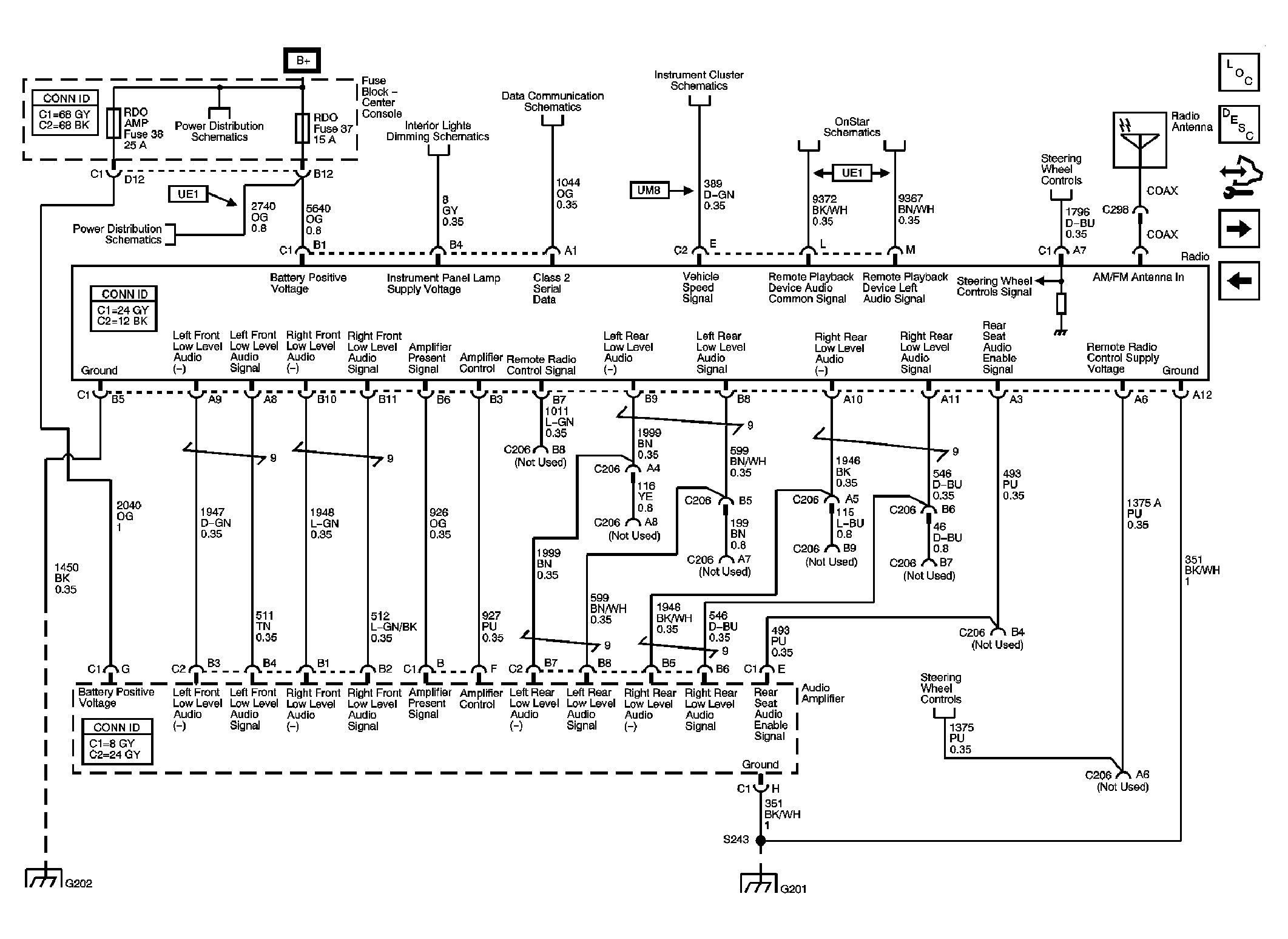

Fig 4: Audio System Controls Schematic (UQ3 w/UK6)

Courtesy of GENERAL MOTORS CORP.

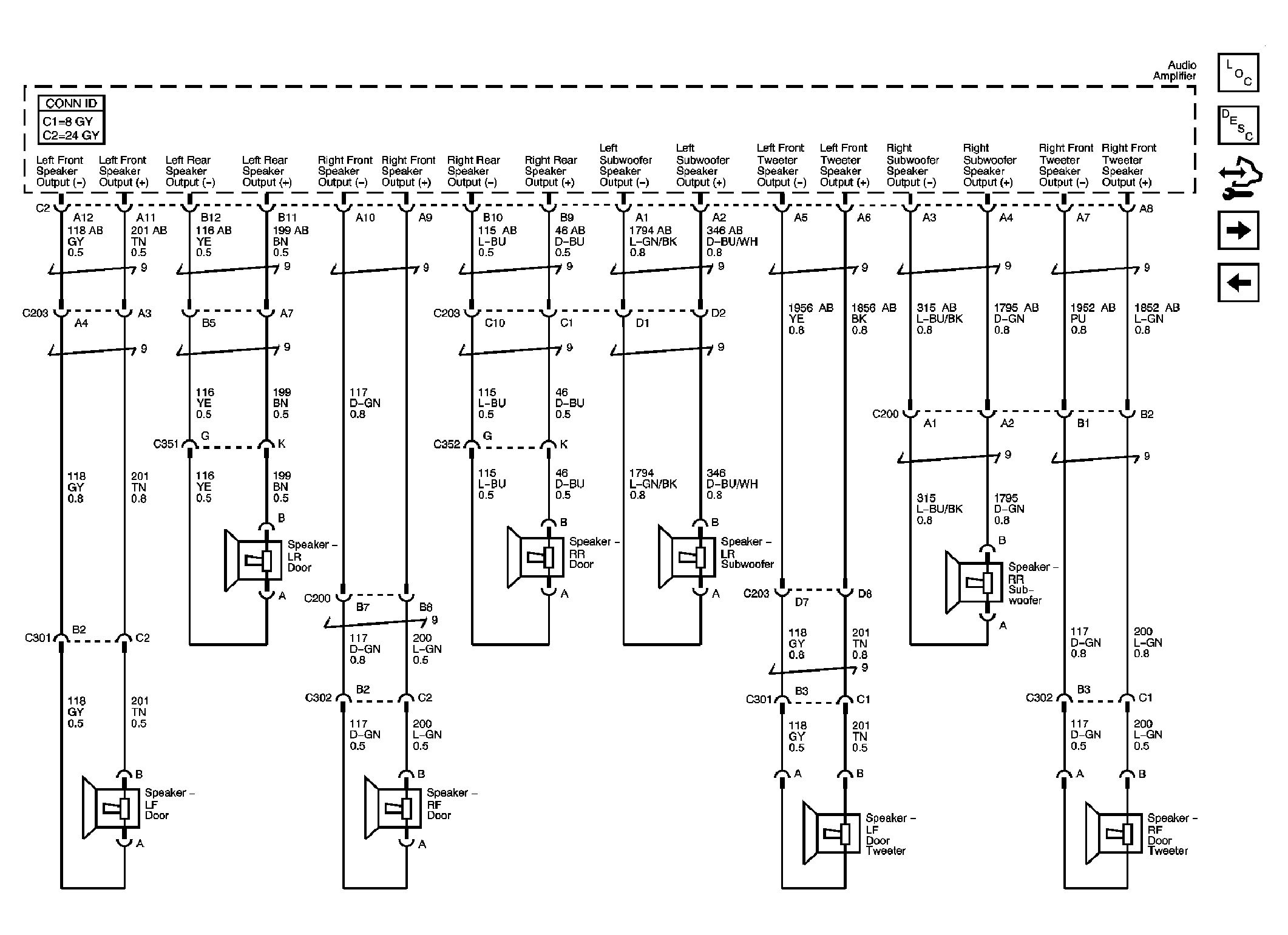

Fig 5: Speakers Schematic (UQ3)

Courtesy of GENERAL MOTORS CORP.

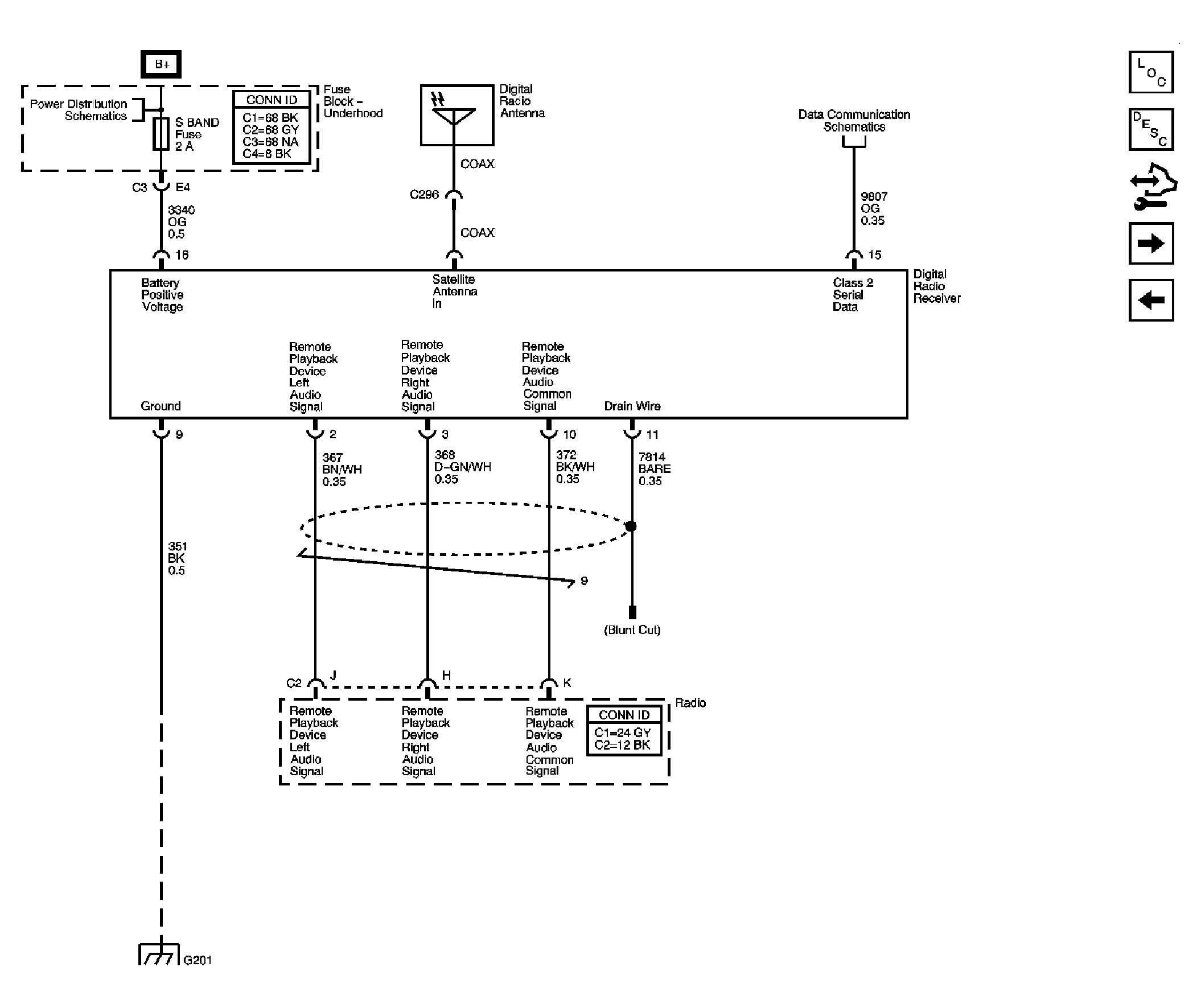

Fig 6: Digital Radio Receiver Schematic

Courtesy of GENERAL MOTORS CORP.

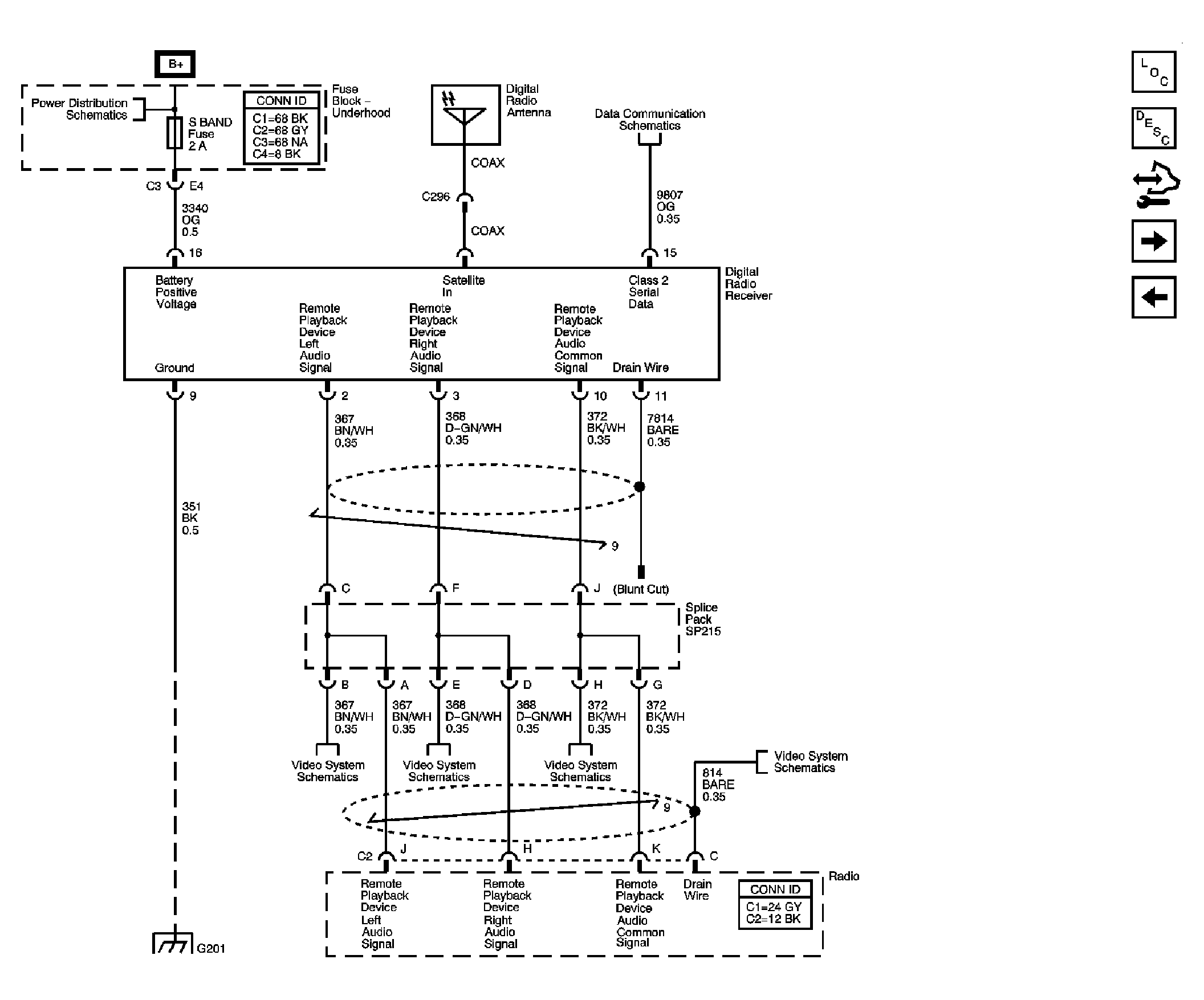

Fig 7: Digital Radio Receiver Schematic (w/U32)

Courtesy of GENERAL MOTORS CORP.

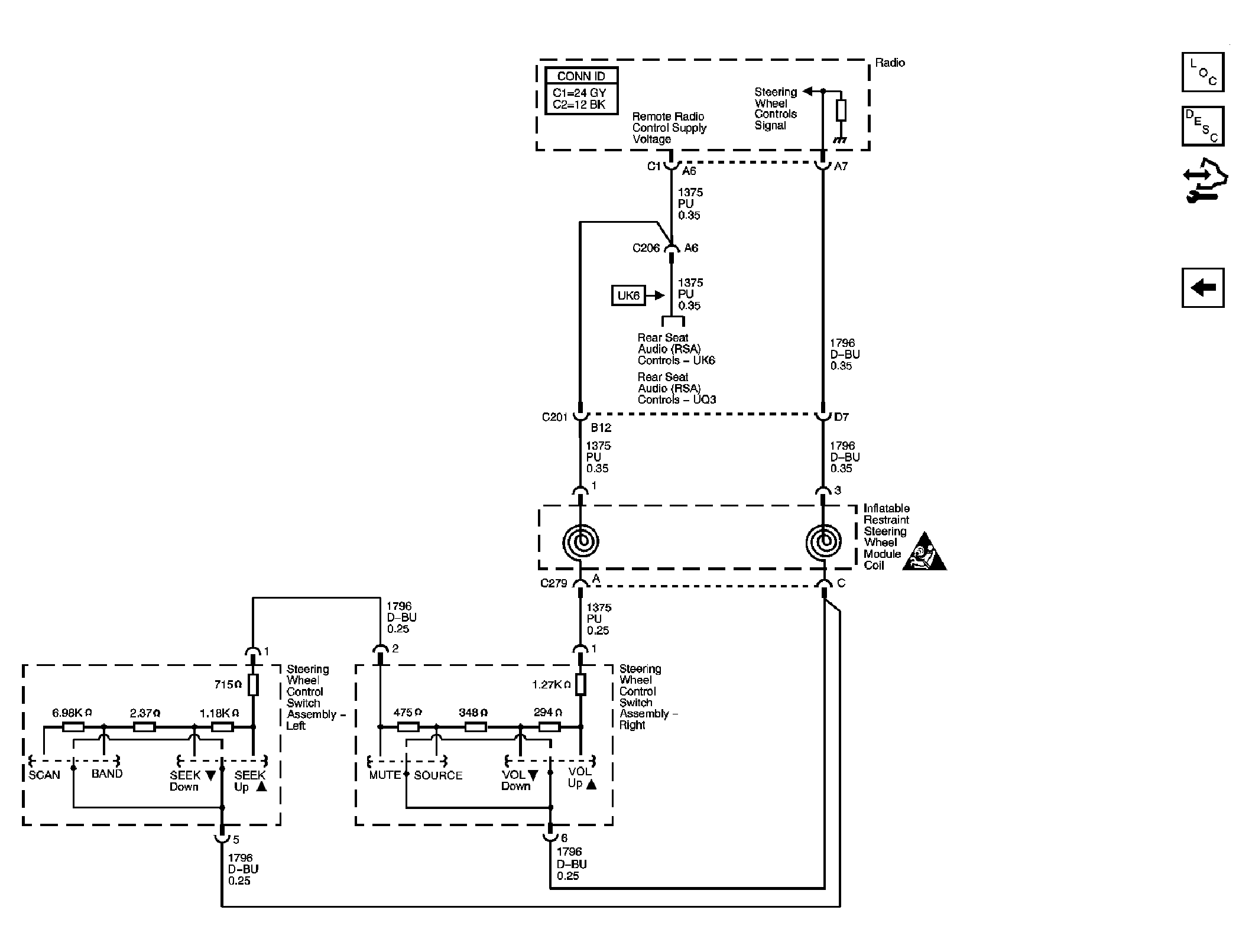

Fig 8: Steering Wheel Controls Schematic (UK3)

Courtesy of GENERAL MOTORS CORP.
