Cruise Control Schematics

WARNING: This page is about a different car, the 2008 Isuzu Ascender, 2008 GMC Envoy, and 2008 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

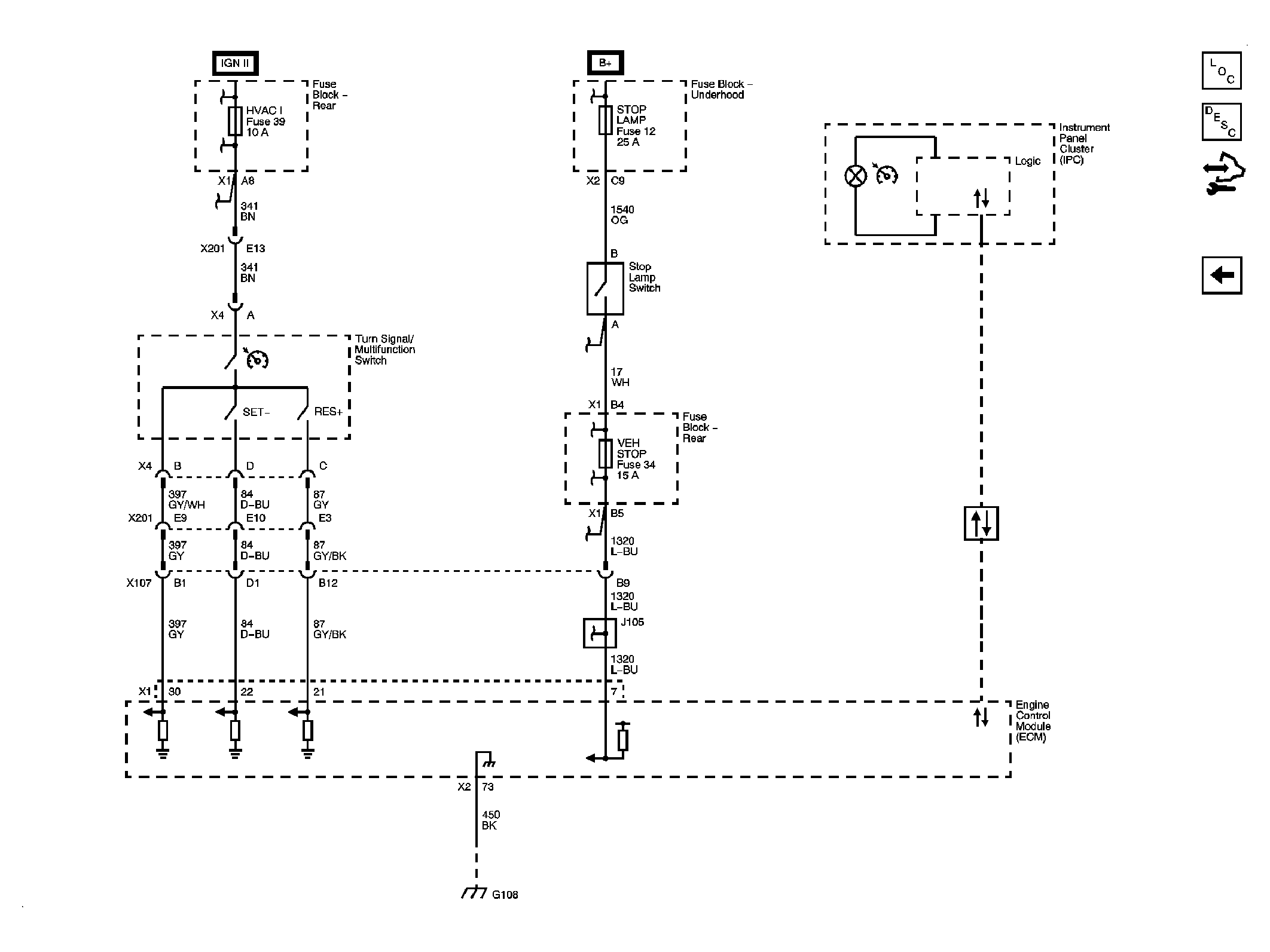

Fig 1: 4.2L Cruise Control Schematic

Courtesy of GENERAL MOTORS CORP.

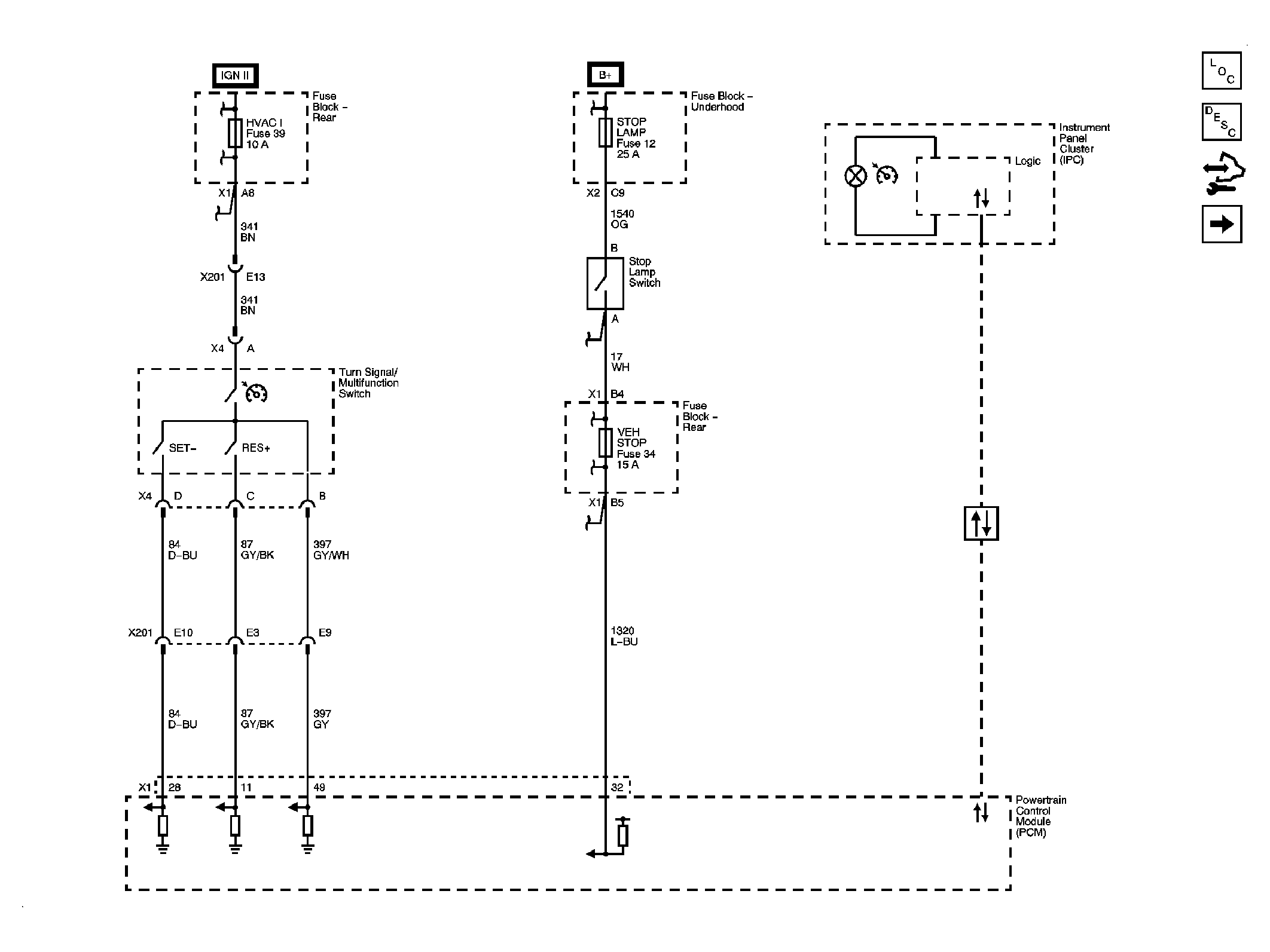

Fig 2: 5.3L/6.0L Cruise Control Schematic

Courtesy of GENERAL MOTORS CORP.
