Cruise Control Schematics

WARNING: This page is about a different car, the 2009 GMC Envoy and 2009 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

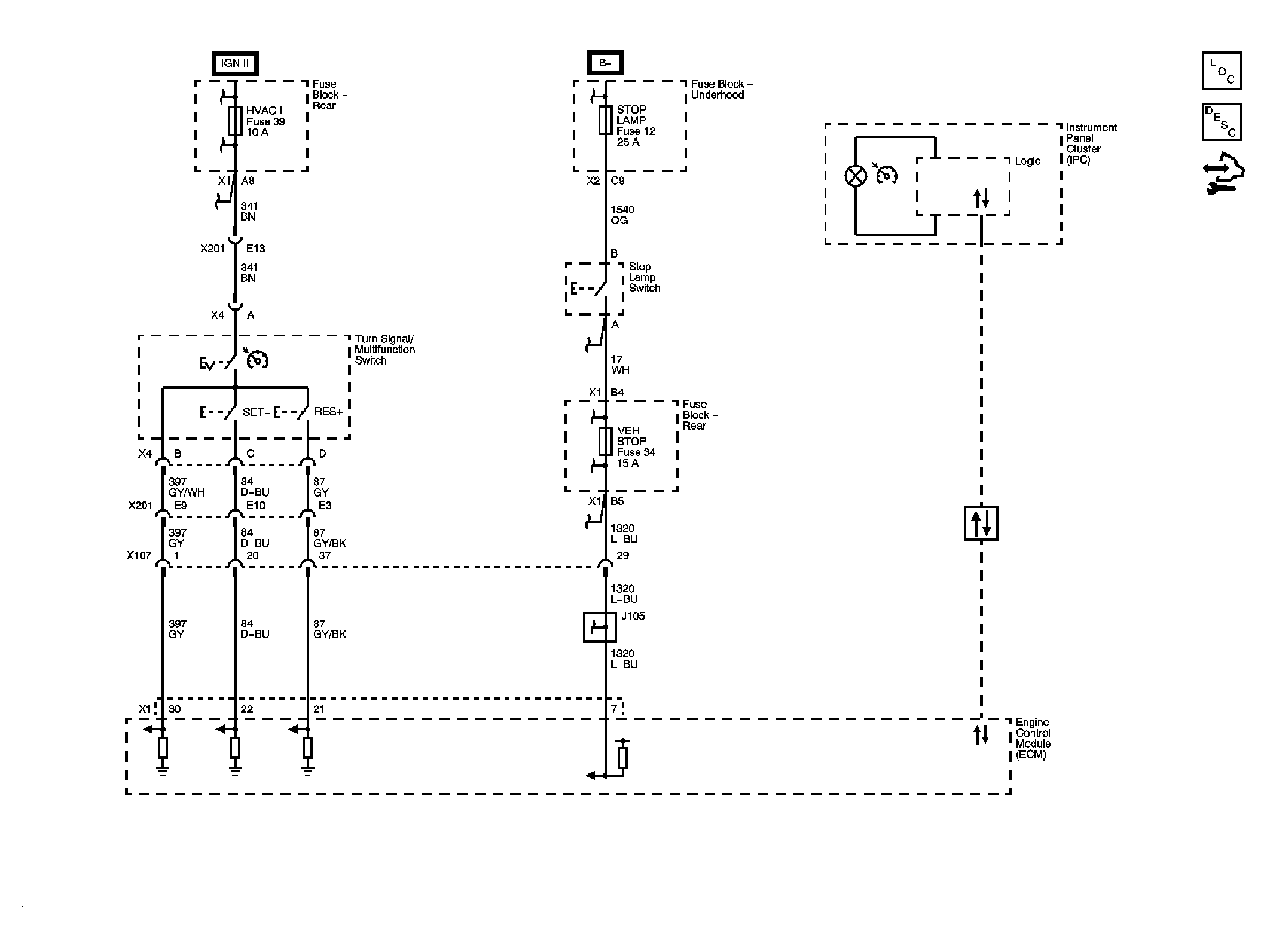

Fig 1: 5.3L/6.0L
GM2081647Courtesy of GENERAL MOTORS CORP.
