Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Buick LaCrosse and 2007 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

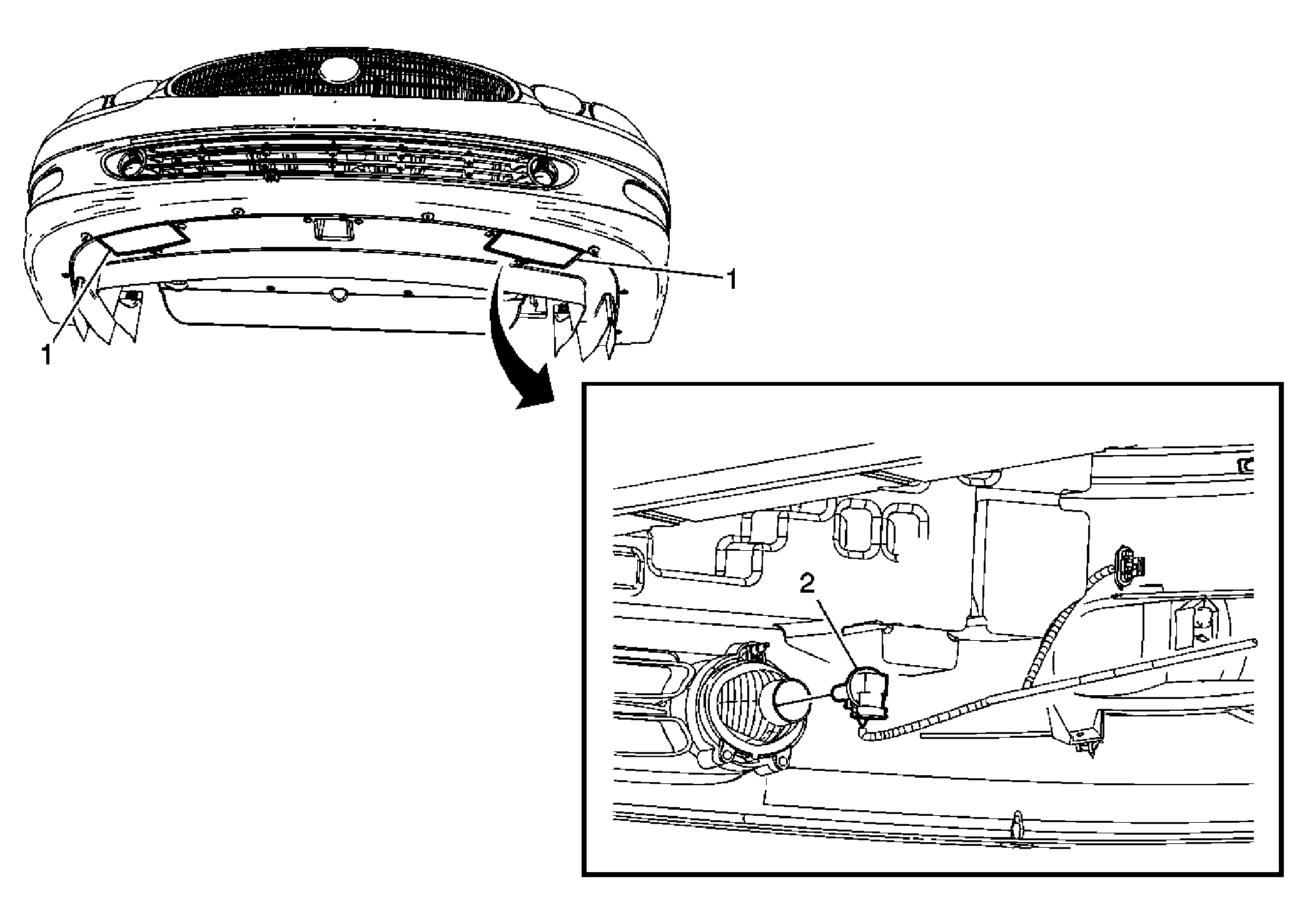

Fig 1: Front Fog Lamp Bulb
GM1752822Courtesy of GENERAL MOTORS CORP.
Front Fog Lamp Bulb Replacement

Callout Component Name
Preliminary Procedure:
Open the lower access panels located in the lower air deflector in order to access the fog lamp bulbs.
1 Fog Lamp Bulb
CAUTION: Refer to Halogen Bulb Caution .

Tip:  Disconnect the electrical connector and turn the bulb socket counterclockwise in order to remove the bulb from the lamp housing.
