Steering Wheel Secondary/Configurable Control Schematics

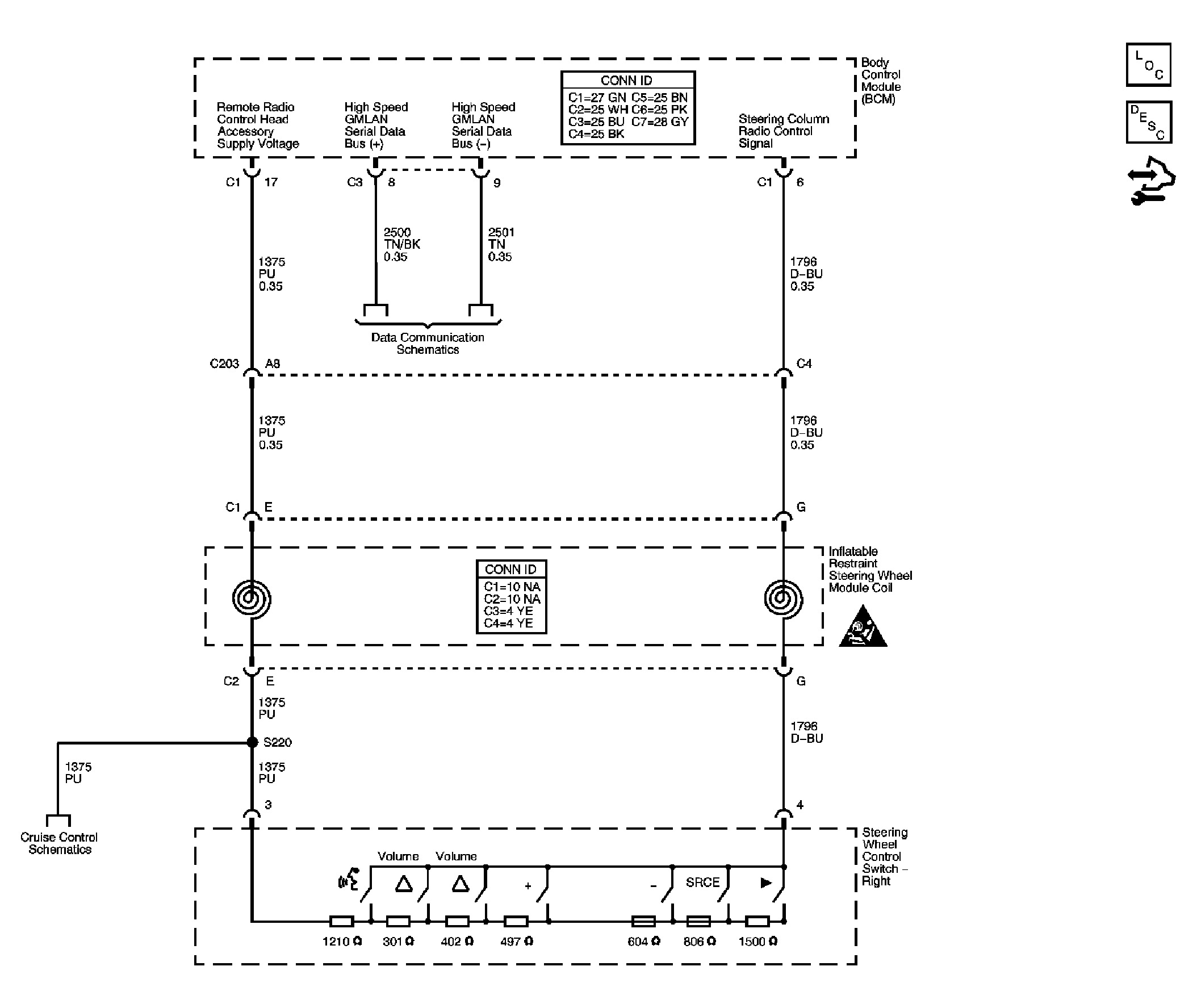

Fig 1: Redundant Steering Wheel Controls

GM1790107

Courtesy of GENERAL MOTORS CORP.
