Installation Procedure

  1. Position the seat belt to the front seat.

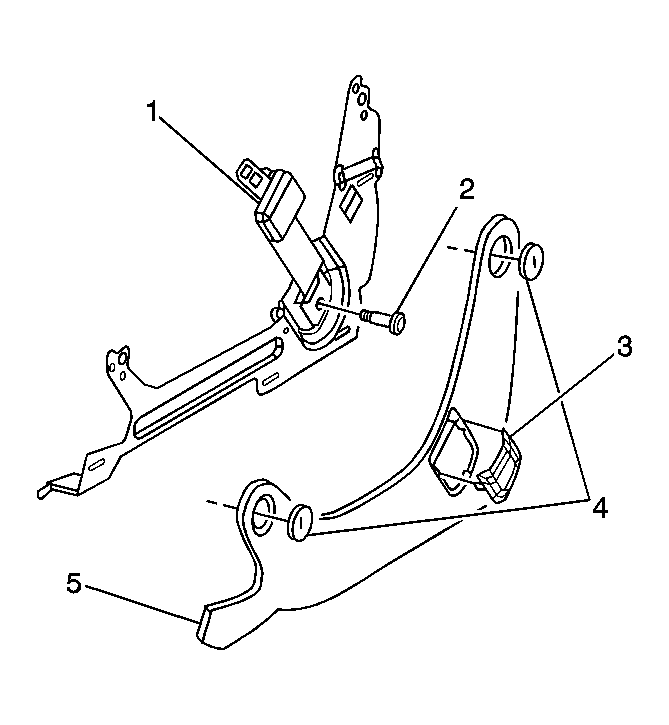

    2. Fig 1: Bolt Covers and Seat Belt Bolts
    GM1368298Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the center seat belt bolts.

    Tighten:  Tighten the seat belt retractor bolt to 42 N.m (31 lb ft).

  3. Install the bolt covers (3) on both sides of the seat.
  4. Install the front seat. Refer to Front Seat Replacement - Bucket in Seats.
