Removal Procedure

    Fig 1: View Of Retractor Anchor Bolt At Floor Pan
    GM371958Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear window trim panel, as required. Refer to Rear Window Shelf Trim Panel Replacement .
  2. Remove the rear sound barrier, as required. Refer to Sound Barrier Replacement - Rear Seat Back .
  3. If removing the center retractor, remove the belt bezel from the rear window shelf. Pass the bezel and seat belt through the rear shelf bezel opening.

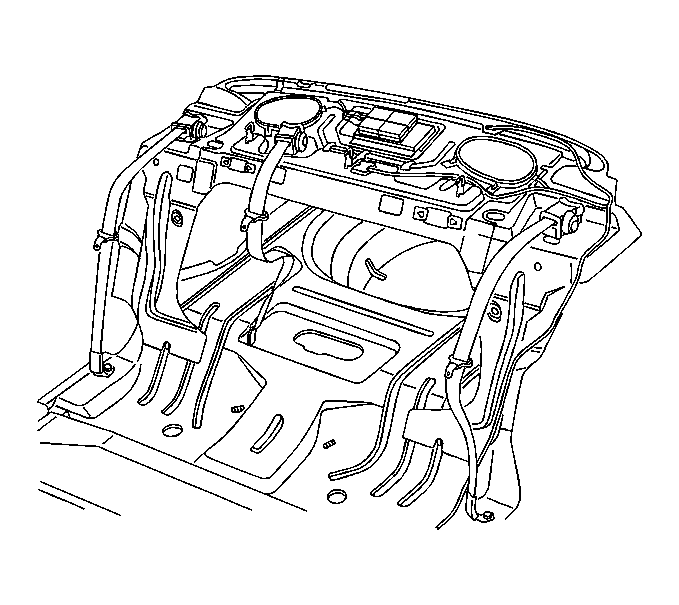

    4. Fig 2: View Of Rear Seat Belt Retractor
    GM1277001Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear seat belt retractor bolt.
  5. Remove the rear seat belt retractor from the vehicle.
