Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

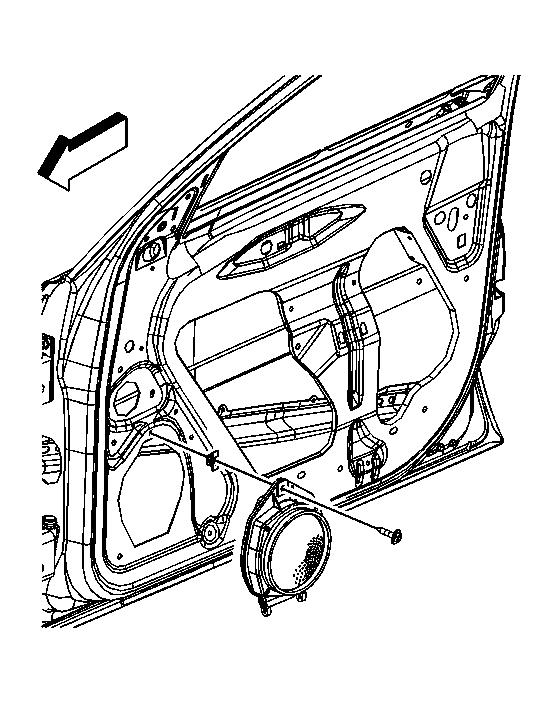

    Fig 1: View Of Front Door Speaker
    GM1552105Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the front door speaker.
  2. Install the speaker to the front door.
    3. NOTE: Refer to Fastener Notice .
  3. Install the front door speaker retaining screw.

    Tighten:  Tighten the front door speaker retaining screw to 2 N.m (18 lb in).

  4. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
