Installation Procedure

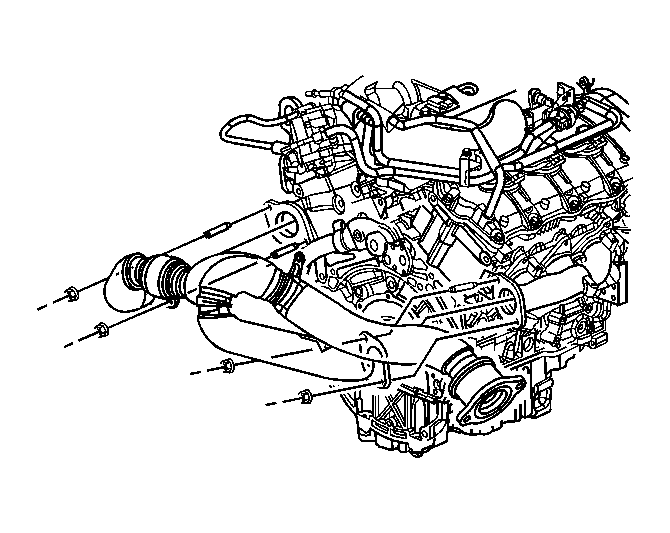

    Fig 1: Crossover Pipe
    GM1705207Courtesy of GENERAL MOTORS CORP.
  1. Install the crossover pipe.
    2. NOTE: Refer to Fastener Notice .
  2. Install the crossover nuts.

    Tighten:  Tighten the nuts to 34 N.m (25 lb ft).

    3. Fig 2: View Of Fluid Filler Tube & Bracket Bolt
    GM161126Courtesy of GENERAL MOTORS CORP.
  3. Install the transmission fluid filler tube. Refer to Fluid Filler Tube Replacement .
  4. Raise and support the vehicle.
  5. Using a jack stand, raise the frame.
  6. Install the left two frame bolts. Refer to Frame Replacement .
  7. Remove the jack stand.
  8. Install the intermediate shaft to the steering gear. Refer to Intermediate Steering Shaft Replacement .
  9. Install the left inner fender splash shield. Refer to Front Fender Replacement .
  10. Install the left front tire and wheel. Refer to Tire and Wheel Removal and Installation .
  11. Lower the veils.
  12. Install the two left bank and front right bank crossover pipe nuts.
  13. Install the downpipe attaching nuts.
  14. Remove the engine with tie down straps.
  15. Rotate the engine back into the proper position.

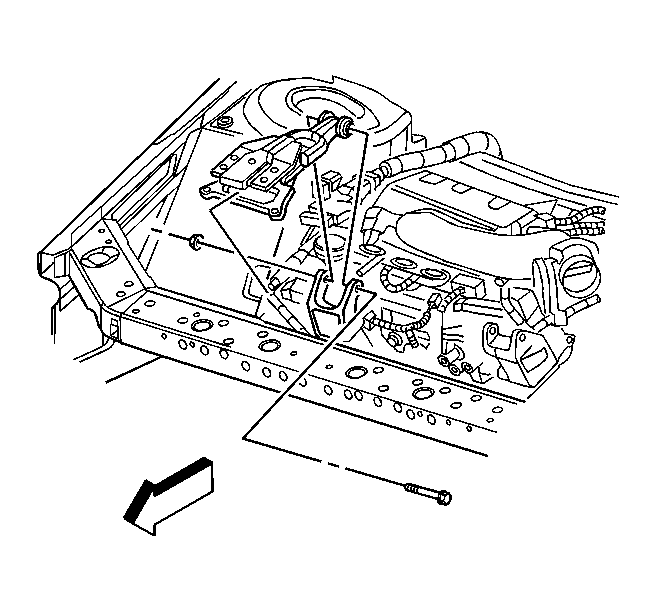

    16. Fig 3: Right Engine Mount Strut
    GM1574578Courtesy of GENERAL MOTORS CORP.
  16. Install the left front engine mount strut. Refer to Engine Mount Strut Replacement - Left Side

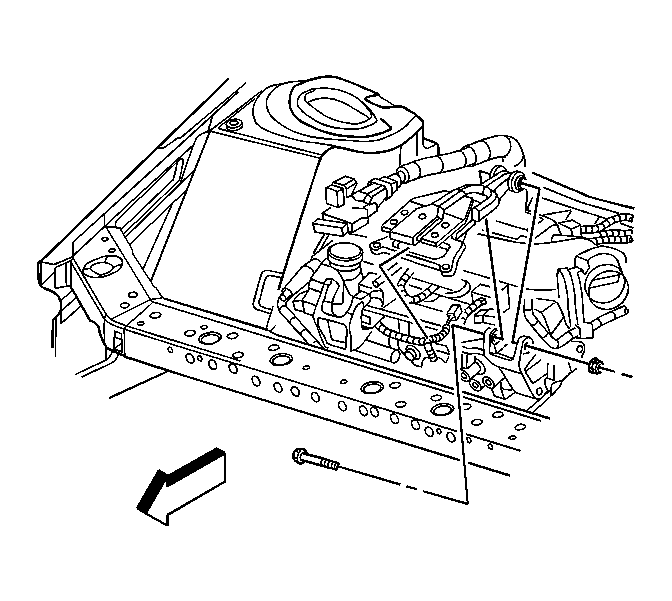

    17. Fig 4: Left Engine Mount Strut
    GM1574576Courtesy of GENERAL MOTORS CORP.
  17. Install the right front engine mount strut. Refer to Engine Mount Strut Replacement - Right Side
    18. Fig 5: View Of Throttle Body
    GM1285255Courtesy of GENERAL MOTORS CORP.
  18. Install the throttle body. Refer to Throttle Body Assembly Replacement .
  19. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .

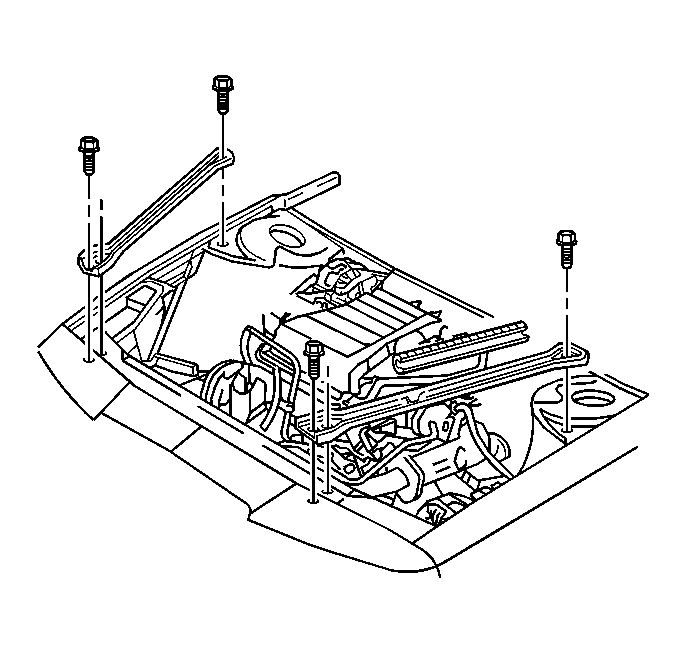

    20. Fig 6: Front Fender Upper Diagonal Braces
    GM317801Courtesy of GENERAL MOTORS CORP.
  20. Install the left inner fender brace. Refer to Front Fender Upper Diagonal Brace Replacement .
