Installation Procedure

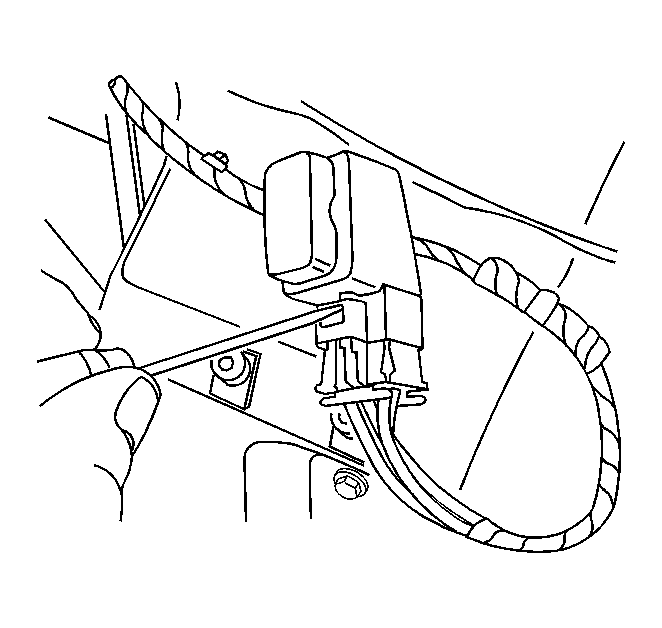

    Fig 1: Door Harness Connector
    GM1350472Courtesy of GENERAL MOTORS CORP.
  1. Connect the window switch to the door harness electrical connector.
  2. Install the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
